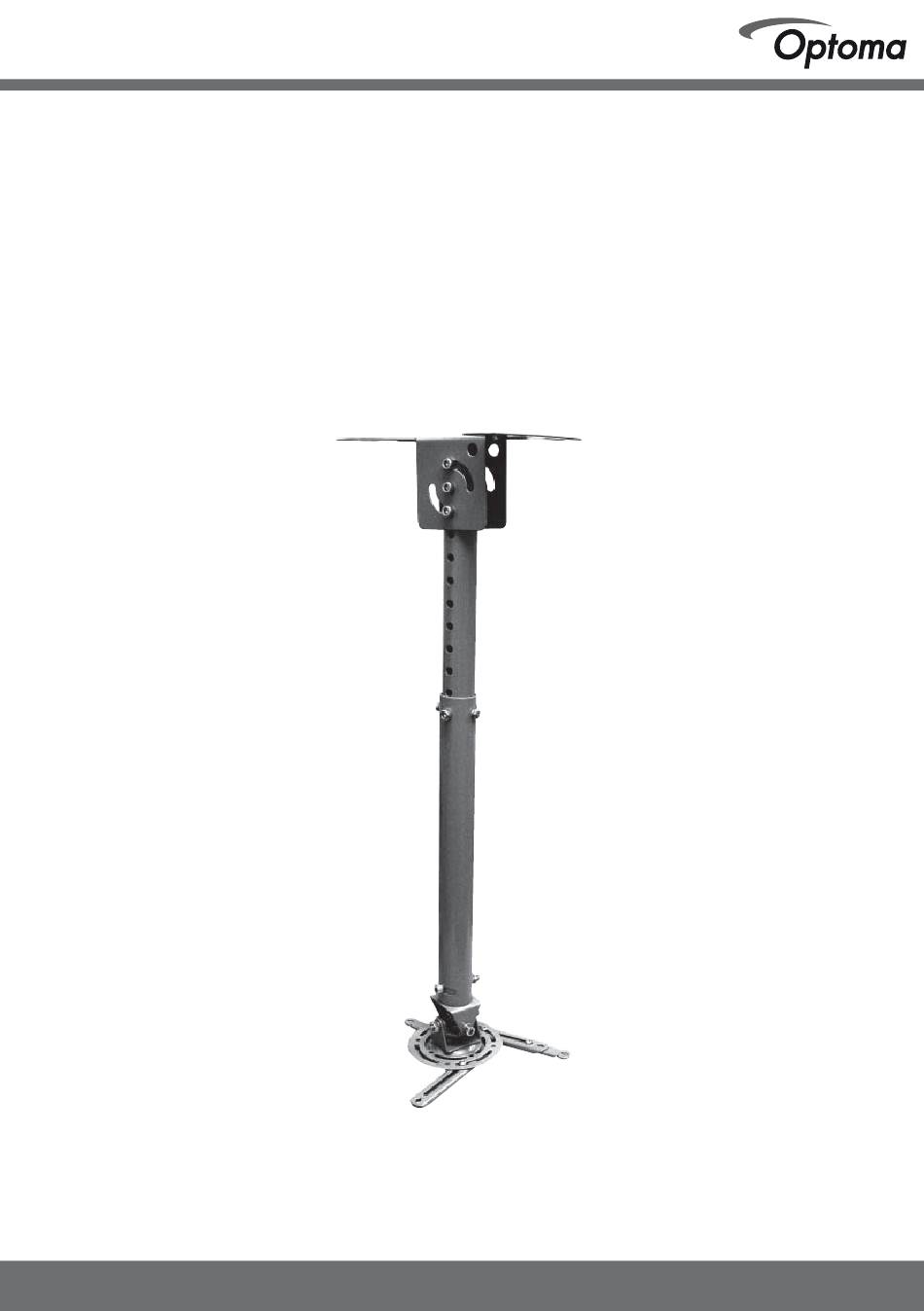

- Page 1 Projector Ceiling Pole Mount ABtUS SIGAPORE PTE LTD www.abtussingapore.com Model: OCM815W / OCM815B Patent Pending Revision 04/01/2012 Optoma Europe Limited www.optoma.eu...
-
Page 2: Important Notes
User Operation Guide IMPORTANT NOTES ● Thank you for purchasing the Universal Projector Ceiling Mount. This bracket is suitable for most projectors up to a load of 15kg (33lbs). ● To ensure correct usage, please read this instruction manual thoroughly. Keep this manual for future reference. -
Page 3: Parts Specifications
PARTS SPECIFICATIONS SPECIFICATION : 2.52 kg Net Weight : 420 x 200 x 120 mm Dimension Extendable Length : Min 576mm, Max 826mm (Min to Max) : 15 kg Load Capacity *Specifi cations are subject to changes without notice. - Page 4 User Operation Guide WARNING Assembling without the correct use of bolts and screws at designated points may result in injury and damage to properties or the unit collapsing from its installed position. Should a malfuction occur disconnect the power from the main socket and surround the area with ropes to prevent others from getting near it.
- Page 5 WARNING Keep the room well ventilated to prevent room temperature rising and possibilities resulting in fi re. Do not install in location where room temperature and humidity are excessively high to prevent fi re. To prevent fi re, avoid contact with water Do not apply unnecessary stress or load on the installed unit.
-
Page 6: Package Contents
PACKAGE CONTENTS 1. Each package should contain the parts listed and shown below M4x15 Cross Recessed 4 pcs Screw Ceiling Mount Plate M4x20 Cross Recessed 4 pcs Screw M4x25 Cross Recessed 4 pcs Screw Upper Pole M5x15 Cross Recessed 4 pcs Screw M5x20 Cross Recessed 4 pcs... - Page 7 User Operation Guide INSTALLATION GUIDE 1. Assembling the Ceiling Mount Plate to the Upper and Lower Pole: Ceiling 1.1 Assemble the Upper Pole using M8x55 Mount plate Socket Cap Screws, Washers and M8 Nylock Nuts as shown. Parts Required: x3 (N1) x3 (N2) x6 (N3) Upper Pole...
- Page 8 (2A) Attaching the Universal Head Assembly to the projector: 2A.1— Loosen the M5x10mm Socket Button Cap Screws using the 3mm Allen key until you can slide the extension brackets freely, as shown. Universal Head Assembly Extension Bracket 100mm 3mm Allen Key M5x10mm Socket Button Cap Screw 2A.2—...
- Page 9 User Operation Guide 2A.3— Place the Bottom Spacers in between the Extension Brackets and the Projector, and align the mounting holes as shown below. Extension Bracket Bottom Spacer Bottom Spacer Mounting Hole NOTE If the mounting holes on your projector are recessed, you may need to use the additional spacers supplied in the parts bag.
- Page 10 User Operation Guide 2A.4— Select the correct Mounting Screws from the Parts bag and firmly screw the Universal Head Assembly onto your Projector. Once this is done, the Projector with Universal Head Assembly is ready to be mounted onto the Ceiling Plate Pole.
- Page 11 User Operation Guide INSTALLATION GUIDE 3. Installing the Ceiling Pole Mount Install the Ceiling Mount Plate to the Attach the Universal Head Assembly ceiling with Lag Bolts and Washers with the projector by inserting M8x55 Socket Cap Screw with Washers (not included in the package) as shown below.
- Page 12 Due to continuing product development, the manufacturer reserves the right to alter specifi cations without notice. Published: 04.01.2012 Optoma Europe Limited www.optoma.eu...
