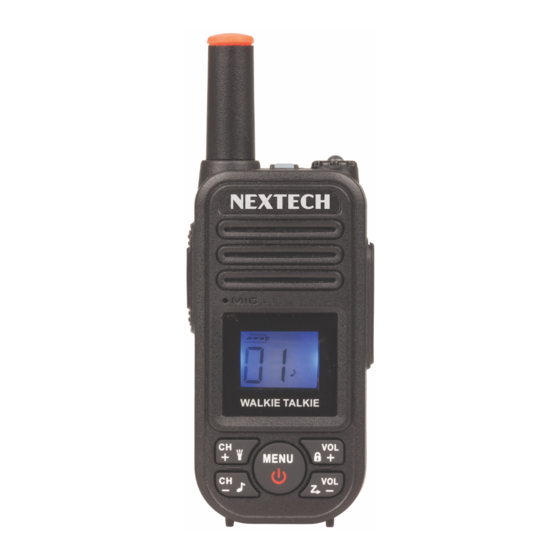

Nextech DC1108 User Manual

Rechargeable 1w uhf transceiver twin pack
Hide thumbs

Advertisement

Quick Links

Download this manual

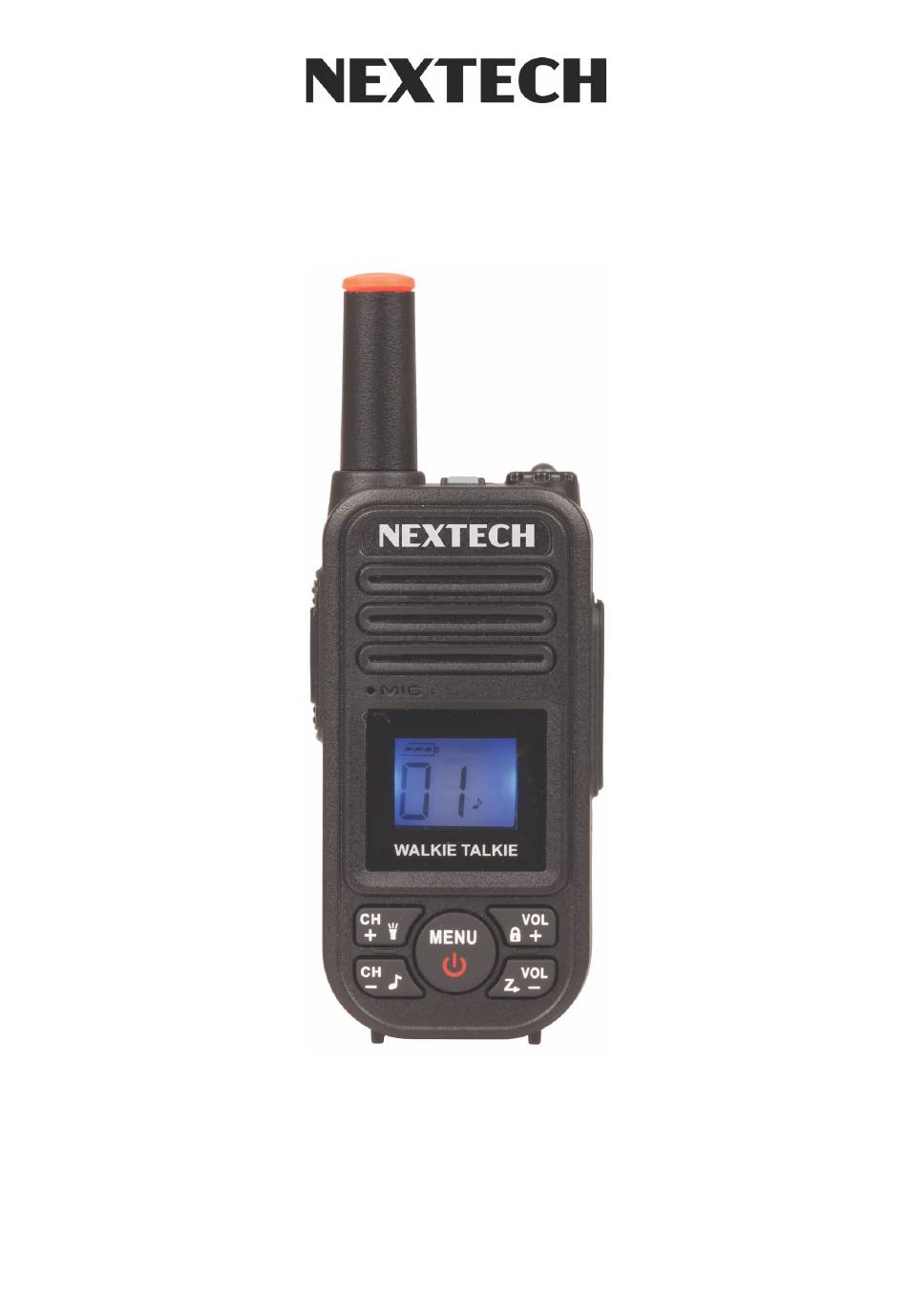

Rechargeable 1W UHF Transceiver Twin Pack
DC1108
User Manual
Use of the citizen band radio service is licensed in Australia by ACMA Radiocommunications
(Citizen Band Radio Stations) Class Licence and in New Zealand by MED General User
Radio Licence for Citizens Band Radio. Operation is subject to conditions contained in
those licences.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DC1108 and is the answer not in the manual?

Questions and answers

Related Manuals for Nextech DC1108

Summary of Contents for Nextech DC1108

  • Page 1 Rechargeable 1W UHF Transceiver Twin Pack DC1108 User Manual Use of the citizen band radio service is licensed in Australia by ACMA Radiocommunications (Citizen Band Radio Stations) Class Licence and in New Zealand by MED General User Radio Licence for Citizens Band Radio. Operation is subject to conditions contained in...
  • Page 2 This set includes two 80 channel UHF transceivers, which enables you to communicate up to 6km in open areas. Note: Please read these user instructions carefully before using the equipment and retain for future consultation! ATTENTION! Observe the following precautions to prevent fire, personal injury, and radio damage. •...

  • Page 3: Control Buttons

    CONTROL BUTTONS PREPARING YOUR RADIO Battery Meter and Low Battery Alert Indicates that the battery is fully charged. Blinks when battery is low; charge the radio or replace batteries immediately. Charging The Radio 1. Make sure your radio is OFF. 2.

  • Page 4: Basic Operations

    BASIC OPERATIONS 1. Turning Your Radio On/Off Press and hold the button to turn your radio ON/OFF. 2. Transmit and Receive (1) To make a call, press and hold the button, then speak into the microphone using normal speaking voice. Hold the microphone approximately 1.5 inches (3 to 4 cm) from your lips. (2) Release the PTT button to receive.

  • Page 5: Menu Options

    DISPLAY SCREEN GUIDE MENU OPTIONS There are 14 Menu Options in this radio , you can follow below instruction to set the functions:...
  • Page 6 (MENU 01) Quiet Talk CTCSS & DCS Privacy Codes CTCSS/DCS Codes is a sub-audible tone/code which allows you to ignore (not hear) calls from other radios who are using the same channel. Your radio has 155 CTCSS/DCS Privacy Codes. "QT" To set the CTCSS/DCS code : Enter MENU 01, screen display OFF = Turn Off CTCSS/DCS Codes 01 - 155 = Different CTCSS/DCS Codes...
  • Page 7 (MENU 02) Squelch Level Squelch Level is about when the signal is strong enough to turn on the squelch. You can hear the voice from other radios only when the squelch is turned on. Higher Level makes it harder to receive the weak signals, while Lower Level will be interfered by noises and/or unwanted signal.
  • Page 8 (MENU 06) Time-Out Timer (TOT) The purpose of the Time-out Timer is to prevent any caller from using a channel for an extended period of time. If you continuously transmit for a period of time that exceeds the programmed time set by your dealer (default is 60 seconds), the radio will stop transmitting and an alert tone will sound.
  • Page 9 (MENU 09) Whisper Function Your radio has a WHISPER function, to enable the user to transmit a high sound level even if he is whispering on the microphone. "UI" To turn ON/OFF the WHISPER function : Enter MENU 09, screen display When you turn WHISPER on, icon will show in the screen.
  • Page 10 (MENU 12) Earpiece/Headset Function Your radio has a Earpiece/Headset function, to enable the user to have better sound when using a Earpiece/Headset. "EP" To turn ON/OFF the Earpiece function : Enter MENU 12, screen display (MENU 13) Monitor Function You can use the Monitor function to listen to weak signals that you cannot hear during normal operation. "no"...
  • Page 11 SPECIAL FUNCTIONS SHORTCUT OPERATION 1. LED Flashlight Function Press and Hold button to Turn On / Off the LED Flashlight ; 2. Keypad Lock Function To avoid accidentally changing your radio settings, you can lock the keypad of your radio: Press and hold Button until displays.

  • Page 12: Troubleshooting

    TROUBLE SHOOTING Troubles Solution 1. The battery has been exhausted. Replace or recharge the battery No Power Supply 2. The battery is installed incorrectly. Remove the battery. The working time shorten, even Replace the battery the battery is fully charged. 1.
  • Page 13 Channel 13 476.7250 Simplex Channel 14 476.7500 Simplex Channel 15 476.7750 Simplex Channel 16 476.8000 Simplex Channel 17 476.8250 Simplex Channel 18 476.8500 Simplex Caravan & Campers Convoy Channel Channel 19 476.8750 Simplex Channel 20 476.9000 Simplex Channel 21 476.9250 Simplex Channel 22 476.9500...
  • Page 14 Channel 50 476.6625 Simplex Channel 51 476.6875 Simplex Channel 52 476.7125 Simplex Channel 53 476.7375 Simplex Channel 54 476.7625 Simplex Channel 55 476.7875 Simplex Channel 56 476.8125 Simplex Channel 57 476.8375 Simplex Channel 58 476.8625 Simplex Channel 59 476.8875 Simplex Channel 60 476.9125 Simplex...
  • Page 15 105 Groups DCS CODE Distributed by: TechBrands by Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia Ph: 1300 738 555 Int’l: +61 2 8832 3200 Fax: 1300 738 500 www.techbrands.com Made in China...
