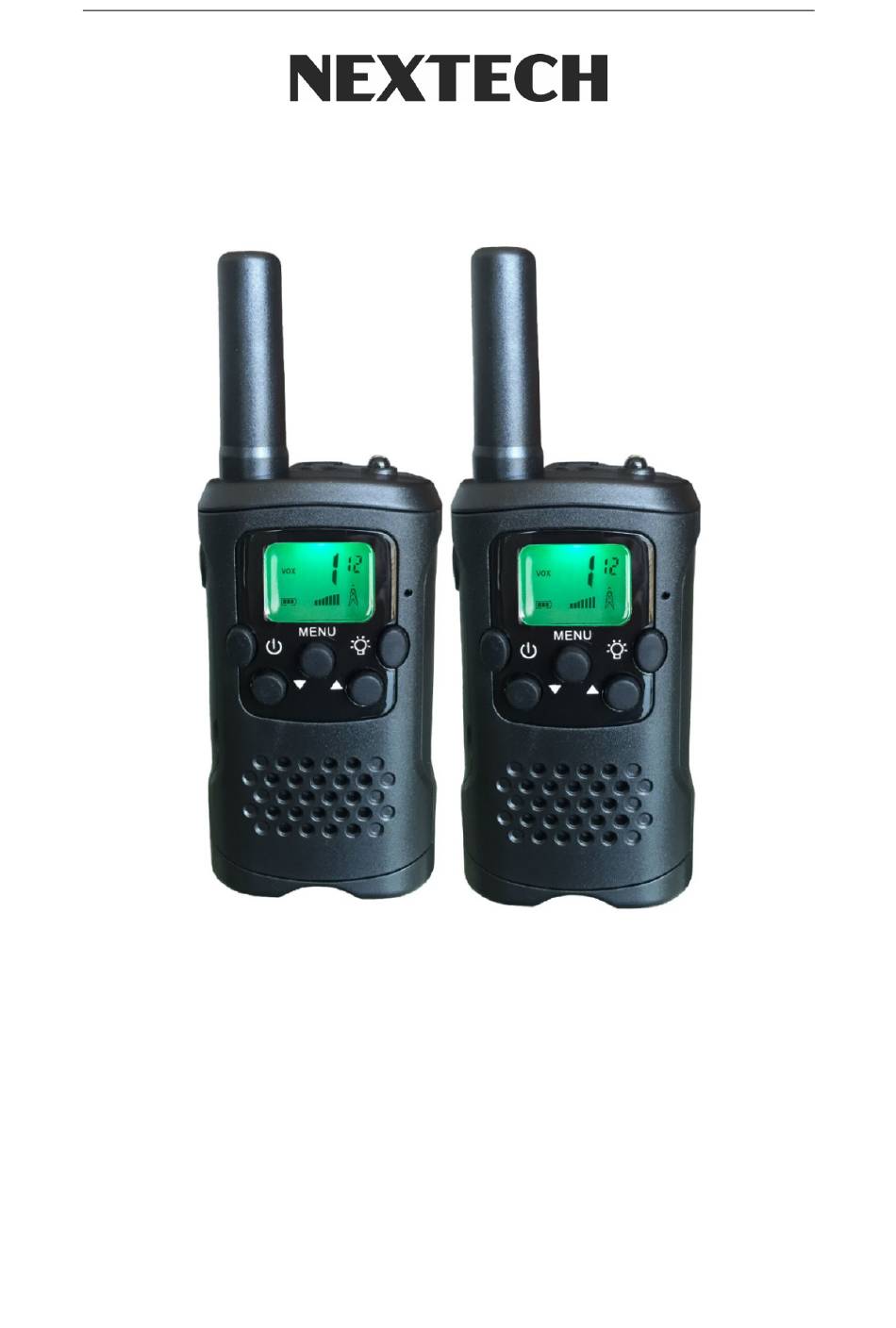

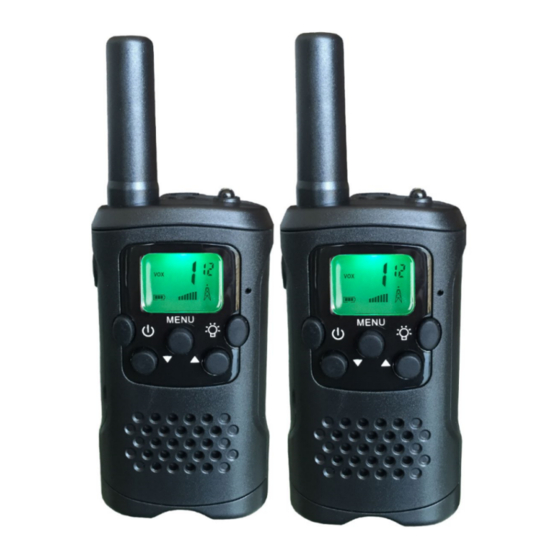

Rechargeable 0.5W UHF Transceiver Twin Pack
DC1132
User Manual
Use of the citizen band radio service is licensed in Australia by
ACMA Radiocommunications (Citizen Band Radio Stations) Class
Licence and in New Zealand by MED General User Radio Licence for
Citizens Band Radio. Operation is subject to conditions contained in
those licences.
Advertisement
Related Manuals for Nextech DC1132
Summary of Contents for Nextech DC1132
- Page 1 Rechargeable 0.5W UHF Transceiver Twin Pack DC1132 User Manual Use of the citizen band radio service is licensed in Australia by ACMA Radiocommunications (Citizen Band Radio Stations) Class Licence and in New Zealand by MED General User Radio Licence for Citizens Band Radio.
- Page 2 This set included 2 walkie-talkie units: there are communication devices which operate on mobile on mobile radio frequencies. It come with a back-lit LCD screen, enabling you to communicate up to 3km open field. Note: Please read these user instructions carefully before using the equipment and retain for future consultation! Specific Recommendations...
- Page 3 Key Functions Before Use the device Removing the belt clip Before insert batteries into the device, first pull the belt clip latch away from the device. Installing the Batteries A. FOR USE OF NON-RECHARGEABLE BATTERIES: 1. Slid down the battery compartment cover. 2.
- Page 4 2. After placing batteries into correct positions, replace the battery cover. 3. The fully charging time is about 12hours. Cradle Adapter NI-HM battery pack Using the device 1. Turning the device on/off Switch on the device: Press and hold on the 3 seconds then you will hear a beep sound.
- Page 5 Hold the device in a vertical position with the Mic 3-5cm away from your mouth. While holding the PTT button, speak into the microphone in a normal tone of voice. Release the PTT button when you have finished transmitting. For others to receive your transmission, they must be on the same channel with you.
- Page 6 7. VOX (Hands free function) Press the MENU button three times, the current VOX setting will flash on the display and the VOX icon will display, Press UP▲ button to set the VOX sensitivity level between 1~3 level (level 3 is the high sensitive level). Press down▼...
- Page 7 Press the PTT button one time quickly, the call tone will be transmitted on the setting channel. 12. Key Tone On/Off Press the MENU button 5 times, “TO” will be displayed. Press the UP▲/Down▼button disable the Key Tone ON/OFF. Press the PTT button to confirm your selection and return to the stand-by mode.
- Page 8 is automatically re-activated as soon as a signal is detected. 16. Built-in Flash light Your device has a built-in flash light that can be used in sending light signals or for our lighting needs. 17. Lock & Unlock the device Press and hold MENU button for 3 seconds to lock the device.
- Page 9 Channel 4 476.5000 Duplex – Repeater Output Channel 5 476.5250 Duplex – Repeater Output (Emergency use only) Channel 6 476.5500 Duplex – Repeater Output Channel 7 476.5750 Duplex – Repeater Output Channel 8 476.6000 Duplex – Repeater Output Channel 9 476.6250 Simplex Channel 10...
- Page 10 Channel 36 477.3000 Repeater Input Channel 37 477.3250 Repeater Input Channel 38 477.3500 Repeater Input Channel 39 477.3750 Simplex Channel 40 477.4000 Simplex Highway Channel Channel 41 476.4375 Duplex – Repeater Output Channel 42 476.4625 Duplex – Repeater Output Channel 43 476.4875 Duplex –...
- Page 11 Distributed by: TechBrands by Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia Ph: 1300 738 555 Int’l: +61 2 8832 3200 Fax: 1300 738 500 www.techbrands.com Made in China...
