TRENDnet TEW-623PI User Manual

Wireless n-draft pci adapter
Hide thumbs Also See for TEW-623PI:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEW-623PI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TEW-623PI

Summary of Contents for TRENDnet TEW-623PI

  • Page 2 Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Copyright 2006 Version 1.0 (June, 2006) Disclaimer The information in this document is subject to change without notice.

  • Page 3: Federal Communications Commission (Fcc) Interference Statement

    FCC RF exposure requirements a minimum separation distance of 1.5cm must be maintained between the user’s body and the device, including the antenna. TRENDNet declares that TEW-623PI, (FCC ID: S9ZTEW623PI) is limited in CH1~CH11 for 2.4 GHz by specified firmware controlled in U.S.A.

  • Page 4: Ce Mark Warning

    CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. This transmitter must not be co-located or operation in conjunction with any other antenna or transmitter.

  • Page 5: Table Of Contents

    Table of Contents Federal Communications Commission (FCC) Interference statement CE Mark Warning Chapter 1 – Wireless LAN Networking Transmission Rate Type of Wireless Networks Infrastructure (BSS) Network Wireless LAN Security Data Encryption with WEP Chapter 2 - Getting Started About Your Card Package Content System Requirement LED Definition...

  • Page 6: Chapter 1- Wireless Lan Networking

    Chapter 1- Wireless LAN Networking This section provides background information on wireless LAN networking technology. HE INFORMATION IN THIS SECTION IS FOR YOUR REFERENCE. NETWORK SETTINGS AND PARTICULARLY SECURITY SETTTINGS SHOULD ONLY BE DONE BY AN AUTHORIZED ADMINISTRATOR. Transmission Rate (Transfer Rate) The card provides various transmission (data) rate options for you to select.

  • Page 7: Infrastructure (Bss) Network

    When a number of wireless stations are connected using a single access point, you have a Basic Service Set (BSS). In the ESS diagram below, communication is done through the access points, which relay data packets to other wireless stations or devices connected to the wired network. Wireless stations can then access resources, such as a printer, on the wired network.
  • Page 8 In an ESS environment, users are able to move from one access point to another without losing the connection. In the diagram below, when the user moves from BSS (1) to BSS (2) the card automatically switches to the channel used in BSS (2). Roaming in an ESS network diagram...

  • Page 9: Wireless Lan Security

    LAN S IRELESS ECURITY Because wireless networks are not as secure as wired networks, its vital that security settings are clearly understood and applied. O NOT ATTEMPT TO CONFIGURE OR CHANGE SECURITY SETTTINGS FOR A NETWORK WITHOUT AUTHORIZATION AND WITHOUT CLEARLY UNDERSTANDING THE SETTINGS YOU ARE APPLING.

  • Page 10: Chapter 2 - Getting Started

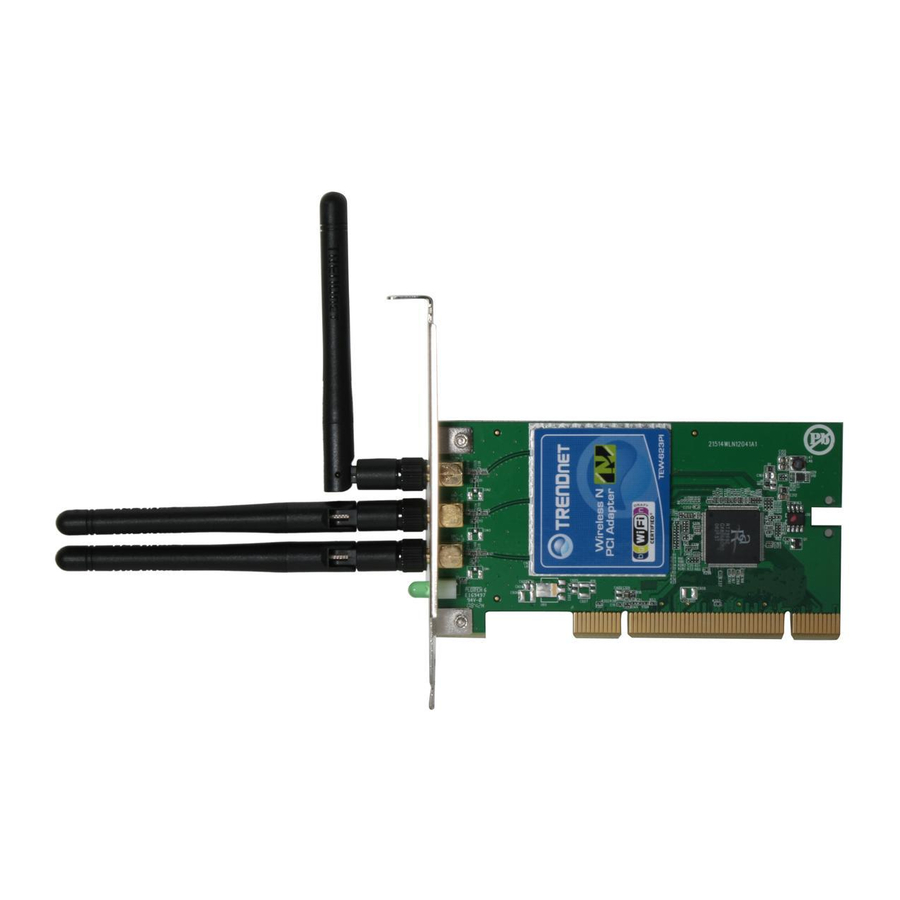

    Supports IEEE 802.1x and WPA (Wi-Fi Protected Access). Multiple antennas design. Driver support for Windows XP/2000. Package Content TEW-623PI Wireless N-Draft PCI Adapter Installation CD Multi-Language Quick Installation Guide System Requirement Pentium class computers with at least one available 32-Bit PCI Slot...

  • Page 11: Wireless Utility And Card Hardware Installation

    Wireless Utility & Card Hardware Installation IF YOU HAVE CONNECTED THE CARD TO YOUR COMPUTER, PLEASE REMOVE IT FIRST. NOTE Follow the instructions below to install the Card and Utility. STEP 1 Insert the Driver and Utility CD into CD drive STEP 2 If your CD Autorun is enabled, the installation procedures will be started.
  • Page 12 STEP 4 The InstallShield Wizard prompts you for confirmation. Click Next on the following menu. STEP 5 In the destination Folder screen you are asked to confirm the Destination Folder for the application software. If you would like, you may change the destination folder to another location. Click Next STEP 6 The wizard is ready to begin installation.
  • Page 13 STEP 7 At the Software Installation menu click Continue Anyway. STEP 8 Click Finish to complete the client utility installation. STEP 9 At this moment please insert your Card to your Laptop, After the following window pop up, click Next on the Found New Hardware Wizard...
  • Page 14 STEP 10 Choose “Install the software automatically”, and click Next. STEP 11 Click “Continue Anyway”. STEP 12 Click Finish to complete the installation.

  • Page 15: Using The Utility To Configure Your Network

    2.6 Using the Utility to Configure Your Network The following are explanations on how to configure and use the Utility program. After completing the installation procedure, a new icon as shown below will automatically appear in the lower right tray bar. Hold your mouse pointer over the icon, and double click the left mouse button to open the Wireless Client Utility.
  • Page 16 The following table describes the items found on the Link Information screen. Wireless Network Status Profile Name The name of the current selected configuration profile. Set up the configuration name on the Profile tab. SSID Displays the wireless network name. Link Status Shows whether the station is associated to the wireless network.

  • Page 17: Site Survey

    2.6.2 Site Survey Click the Site Survey tab to see available infrastructure and ad hoc networks. On this screen, click Refresh to refresh the list at any time. Connecting to a different network Hold your mouse pointer over the network icon, and click the right mouse button to select the network. Click the Connect button to connect the available network.

  • Page 18: Profile

    2.6.3 Profile To add a new configuration profile, click Add on the Profile tab. To modify a configuration profile, select the configuration from the Profile list and click the Edit button. Scan Available Networks Click the Browse button on the Profile Settings screen to scan for available infrastructure and ad hoc networks.
  • Page 19 To confirm a profile for Infrastructure mode, check the Network Type field on the Profile Settings. Click Next to continue the profile setting. To define the security mode, select the security button of the desired security mode. And then click Next to continue.
  • Page 20 tunnel between the client and the authentication server. The tunnel then protects the subsequent user authentication exchange. PEAP (EAP-MSCHAP V2) Authentication Protocol) security, the server must have WPA-PEAP certificates, and the server properties must already be set. Check with the IT manager TTLS provides mutual authentication using a certificate for server...
  • Page 21 The following table describes the items found on the Advanced Settings screen. Power Save Mode Shows the power save mode. Power management is disabled in ad hoc mode. The options include: Continuous Access Mode Maximum Power Saving Fast Power Saving 802.11b Preamble Displays the 802.11b preamble format.

  • Page 22: Chapter 3 - Maintenance

    Under Hardware tab, click Device Manager. Step 4. Double-click Network Card Step 5. Right-click mouse button on “TEW-623PI Wireless Draft-N PCI Adapter”, and choose Uninstall Step 6. Click OK to confirm that you are going to uninstall the driver Uninstall the Client Utility Follow the steps below to remove the Client Utility from your computer.

  • Page 23: Glossary

    Glossary For unfamiliar terms used below, look for entries elsewhere in the glossary. AD-HOC (IBSS) Ad-hoc mode does not require an AP or a wired network. A network that transmits wireless from computer to computer without the use of a base station (access point). Two or more wireless stations communicate directly to each other.
  • Page 24 ROAMING In an infrastructure network, wireless stations are able to switch from one BSS to another as they move between the coverage areas. During this period, the wireless stations maintain uninterrupted connection to the network. This is roaming. As the wireless station moves from place to place, it is responsible for choosing the most appropriate AP depending on the signal strength, network utilization among other factors.

  • Page 25: Limited Warranty

    TRENDnet shall not be responsible for any software, firmware, information, or memory data of customer contained in, stored on, or integrated with any products returned to TRENDnet pursuant to any warranty. There are no user serviceable parts inside the product. Do not remove or attempt to service the product through any unauthorized service center.
  • Page 26 FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
