AIR CONDITIONER
OPERATING MANUAL

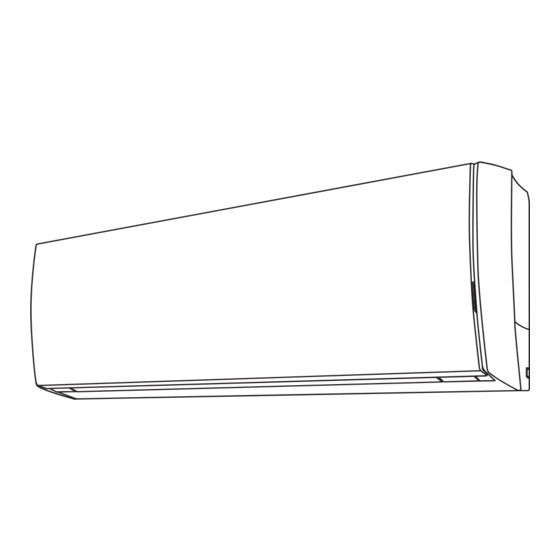

Wall Mounted Type
BEDIENUNGSANLEITUNG
MODE D'EMPLOI
MANUAL DE FUNCIONAMIENTO
MANUALE DI ISTRUZIONI
ΕΓΧΕΙΡΙΔΙΟ ΛΕΙΤΟΥΡΓΙΑΣ
MANUAL DE FUNCIONAMENTO
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
KULLANIM KILAVUZU
KEEP THIS MANUAL FOR FUTURE REFERENCE
BEWAHREN SIE DIESES HANDBUCH ZUM SPÄTEREN NACHSCHLAGEN AUF
CONSERVEZ CE MANUEL POUR RÉFÉRENCE ULTÉRIEURE
CONSERVE ESTE MANUAL PARA FUTURA REFERENCIA
CONSERVARE IL PRESENTE MANUALE PER FUTURE CONSULTAZIONI
ΦΥΛΑΞΤΕ ΤΟ ΕΓΧΕΙΡΙΔΙΟ ΓΙΑ ΜΕΛΛΟΝΤΙΚΗ ΑΝΑΦΟΡΑ
GUARDE ESTE MANUAL PARA REFERÊNCIA FUTURA
ХРАНИТЕ РУКОВОДСТВО ДЛЯ СПРАВОК В БУДУЩЕМ
[Original instructions]
BU KILAVUZU İLERİDE BAŞVURMAK ÜZERE SAKLAYIN
PART No. 9319356112-03
U
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fujitsu ASY25UI-LU
Summary of Contents for Fujitsu ASY25UI-LU
- Page 1 AIR CONDITIONER OPERATING MANUAL Wall Mounted Type BEDIENUNGSANLEITUNG MODE D’EMPLOI MANUAL DE FUNCIONAMIENTO MANUALE DI ISTRUZIONI ΕΓΧΕΙΡΙΔΙΟ ΛΕΙΤΟΥΡΓΙΑΣ MANUAL DE FUNCIONAMENTO РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ KULLANIM KILAVUZU KEEP THIS MANUAL FOR FUTURE REFERENCE BEWAHREN SIE DIESES HANDBUCH ZUM SPÄTEREN NACHSCHLAGEN AUF CONSERVEZ CE MANUEL POUR RÉFÉRENCE ULTÉRIEURE CONSERVE ESTE MANUAL PARA FUTURA REFERENCIA CONSERVARE IL PRESENTE MANUALE PER FUTURE CONSULTAZIONI...
-
Page 2: Table Of Contents
OPERATING MANUAL PART No. 9319356112-03 WALL MOUNTED TYPE [Original instructions] CONTENTS SAFETY PRECAUTIONS ........... 1 OUTDOOR UNIT LOW NOISE OPERATION ..10 FEATURES AND FUNCTIONS ........2 MANUAL AUTO OPERATION ........10 NAME OF PARTS ............3 ON/OFF TIMER OPERATION ........11 PREPARATION ............ -
Page 3: Features And Functions
FEATURES AND FUNCTIONS ■ Energy saving and Comfortable function POWERFUL OPERATION INVERTER At the start of operation, large amount of power is used to The product will operate at maximum power, which is con- bring the room quickly to the desired temperature. Afterward, venient when you want to quickly cool down or warm up the the air conditioner automatically switches to a low power set- room. -
Page 4: Name Of Parts
NAME OF PARTS INDOOR UNIT Open Panel Intake Grille ● Before starting opera- It opens at the same time of opera- tion, make sure that tion, and shuts when operation stops. the intake grille has ● Please do not touch by hand or put been shut completely. - Page 5 : See page ► REMOTE CONTROLLER Signal Transmitter MODE button FAN button ► 6 ► 6 SWING button ECONOMY button ► 8 ► 9 10 °C HEAT button OUTDOOR UNIT ► 10 LOW NOISE button SET button ► 10 ► 8 TEMP.
-
Page 6: Preparation
PREPARATION WARNING Turn on the Power ● Take care to prevent infants and young children from accidentally swallowing the Turn on the circuit breaker batteries. Load Batteries (R03/LR03 2) CAUTION ● To prevent malfunction or damage of the remote controller: Slide the front cover to take it off. -
Page 7: Operation
OPERATION To Start Operation Press the START/STOP button The indoor unit’s OPERATION Indicator Lamp (green) will light. The air conditioner will start operating. To Select Mode Operation Press the MODE button to select the desired mode. Each time the button is pressed, the mode will change in the following order. AUTO COOL HEAT... - Page 8 OPERATION About AUTO CHANGEOVER Operation ● When AUTO CHANGEOVER operation fi rst selected, the fan will operate AUTO: at very low speed for about a few minutes, during which time the indoor unit detects the room conditions and selects the proper mode. Room temperature is higher than the defi...
-
Page 9: Adjusting The Direction Of Air Circulation
ADJUSTING THE DIRECTION OF AIR CIRCULATION Vertical (up-down) direction of airfl ow is adjusted by pressing the Remote Controller's SET button. Horizontal (right-left) airfl ow direc- tion is adjusted manually, by moving the Airfl ow Direction Louvers. Whenever making horizontal airfl ow adjustments, start air conditioner operation and be sure that the vertical air direction louvers are stopped. -
Page 10: Powerful Operation
POWERFUL OPERATION The product will operate at maximum power, which is convenient when you want to quickly cool down or warm up the room. Begin Air Conditioner operation before performing this procedure. To use POWERFUL Operation Press the POWERFUL button Only as for this button operation, the beep sound is different from the others. -
Page 11: 10 °C Heat Operation
10 °C HEAT OPERATION To use 10 °C HEAT Operation Press the 10 °C. HEAT button The ECONOMY indicator lamp (green) will light. To stop 10 °C HEAT Operation While 10 °C HEAT OPERATION is in progress, only the following operation can be used. -
Page 12: On/Off Timer Operation
ON/OFF TIMER OPERATION ● ON TIMER : The air conditioner will start at the time you set. ● OFF TIMER : The air conditioner will stop at the time you set. ● Before using the timer function, be sure that the Remote Controller is set to the cor- rect current time. -
Page 13: Program Timer Operation
PROGRAM TIMER OPERATION ● The program timer allows you to integrate OFF timer and ON timer operations in a single sequence. The sequence can involve 1 transition from OFF timer to ON timer, or from ON timer to OFF timer, within a 24 hour period. ●... -
Page 14: Sleep Timer Operation
SLEEP TIMER OPERATION You can set the OFF TIMER to any time you want when you go to sleep. The product adjusts the temperature to make it suitable for sleeping, which helps you sleep comfortably. Once you set the time you want, you can easy set the timer to run from the next time, simply by pressing the SLEEP button once. -
Page 15: Weekly Timer Operation
WEEKLY TIMER OPERATION Using in these cases of WEEKLY timer The “OFF Timer” at which the operation will be stopped and the “ON Timer” at which the operation will be started can be combined, and up to 4 reservations (program ) can be applied for one day, and 28 reservations for a week. - Page 16 WEEKLY TIMER OPERATION To use WEEKLY timer operation Press the TIMER SETTING button Firstly, since “ ” will be fl ashing. Press the NEXT button Flashing the “ ” . Select the program and the day using the SELECT button Program 1Week Program...
- Page 17 WEEKLY TIMER OPERATION Press the SELECT button to set the desired ON time or OFF time. If you selected OFF in step 3 1. Press the NEXT button to go back to step and confi gure the next setting. 2. Press the SEND button Press the NEXT button The time display /“...
- Page 18 WEEKLY TIMER OPERATION Check the schedule Press the TIMER SETTING button Firstly, since “ ” will be fl ashing. Press the NEXT button Check the program, the day, and the time with the SELECT button Press the TIMER SETTING button to return to the regular screen.
-
Page 19: Cleaning And Care
CLEANING AND CARE 3. Replace the air fi lters. CAUTION Align the sides of the air fi lter with the panel, and push in ● Before cleaning this product, be sure to turn it off and dis- fully, making sure the 2 lower tabs are returned properly to connect all the power supply. - Page 20 CLEANING AND CARE About the Air Cleaning Filters Install or Replace the Air Cleaning Filter ● When Air Cleaning Filters are used, the effect will increased 1. Open the intake grille and remove the air by setting the fan speed to “High”. fi...
-
Page 21: Troubleshooting
TROUBLESHOOTING In following events, immediately stop operation of the air conditioner, and disconnect all the power WARNING supply by turning off the electrical breaker or disconnecting the power plug. Then consult your dealer or authorized service personnel. As long as the unit is connected to the power supply, it is not insulated from the power supply even if the unit is turned off. -
Page 22: Operating Tips
TROUBLESHOOTING Symptom Items to check See Page ● Has the circuit breaker been turn off? Does not operate at all: — ● Has there been a power failure? CHECK ONCE ● Has a fuse blown out, or a circuit breaker been tripped? MORE ●... - Page 23 OPERATING TIPS Multi-type Air conditioner This indoor unit can be connected to a multi-type outdoor unit depending on model. The multi-type air conditioner allows multiple in- door units to be operated in multiple locations. The indoor units may be operated simultaneously, in accordance with their respective output.
