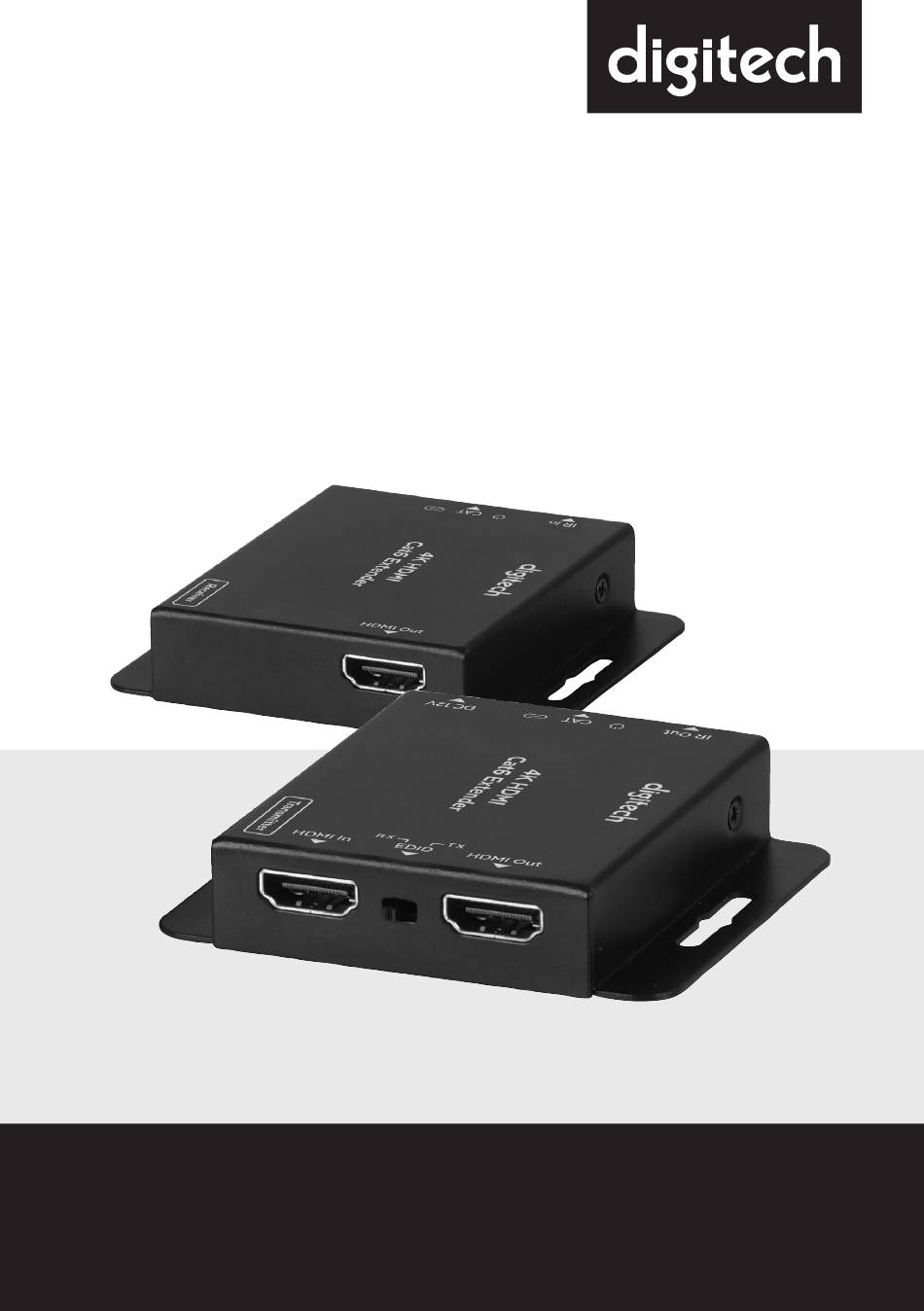

- Page 1 4K HDMI CAT6 Extender with IR Extender Model: AC1785 Instruction Manual...
- Page 2 INTRODUCTION: This product can achieve up to 70m transmission distance while still supporting up to 1080p 60Hz signals or 40m transmission distance while still supporting up to 4K 30Hz signals. Features EDID management, which allows and encourages source and display “handshake” for seamless integration. With only one CAT6 cable (not included), high definition sources with HDMI outputs can be connected to 4K displays with HDMI inputs over long distances.
-
Page 3: Specifications
SPECIFICATIONS: Transmission Distance: Up to 70m on 1080p @ 60Hz, Up to 40m on 4K @ 30Hz HDMI: 1.4b HDCP: Resolution: Up to 4K (3820x1920) @ 30Hz and Up to 1080p (1920 x 1080) @ 60Hz Video Bandwidth: 10.2Gbps Audio: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X... - Page 4 PANEL DESCRIPTIONS (TRANSMITTING UNIT): HDMI IN EDID HDMI OUT IR OUT DC 12V HDMI IN: HDMI signal input port. Connect to HDMI source device such as DVD or Set-top box. EDID DIP SWITCH: The switch is used for selecting EDID: Switch to the right position, the extender will copy HDMI loop out display EDID information to signal source;...
-
Page 5: Connection Diagram
PANEL DESCRIPTIONS (RECEIVER UNIT): HDMI OUT: This output is to connect the HDMI input port of your display such as an HDTV. IR IN: Connect to the IR Receiver for IR signal reception. Ensure that remote being used is within the direct line-of-sight of the IR receiver. POWER LED: This LED will illuminate when the device is connected with power supply. -
Page 6: Operation
OPERATION: TRANSMITTER: Connect the DC plug of the mains power adaptor to the power socket of the transmitter. Plug-in the mains power adaptor to a 240VAC wall socket. Connect a HDMI cable (not included) from your source device such as PayTV, DVD player or media player to the HDMI input of the transmitter. -
Page 7: Troubleshooting
TROUBLESHOOTING: Problem: Solution: Adjust the EDID switch on the transmitter, switch it to the opposite position. Check to see your source device and monitor/TV’s resolution and frequency matches the supported resolution of the HDMI extender. Check to see if your source device and monitors/TVs are all switched on. - Page 8 Distributed by: Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia www.electusdistribution.com.au Made in China...
