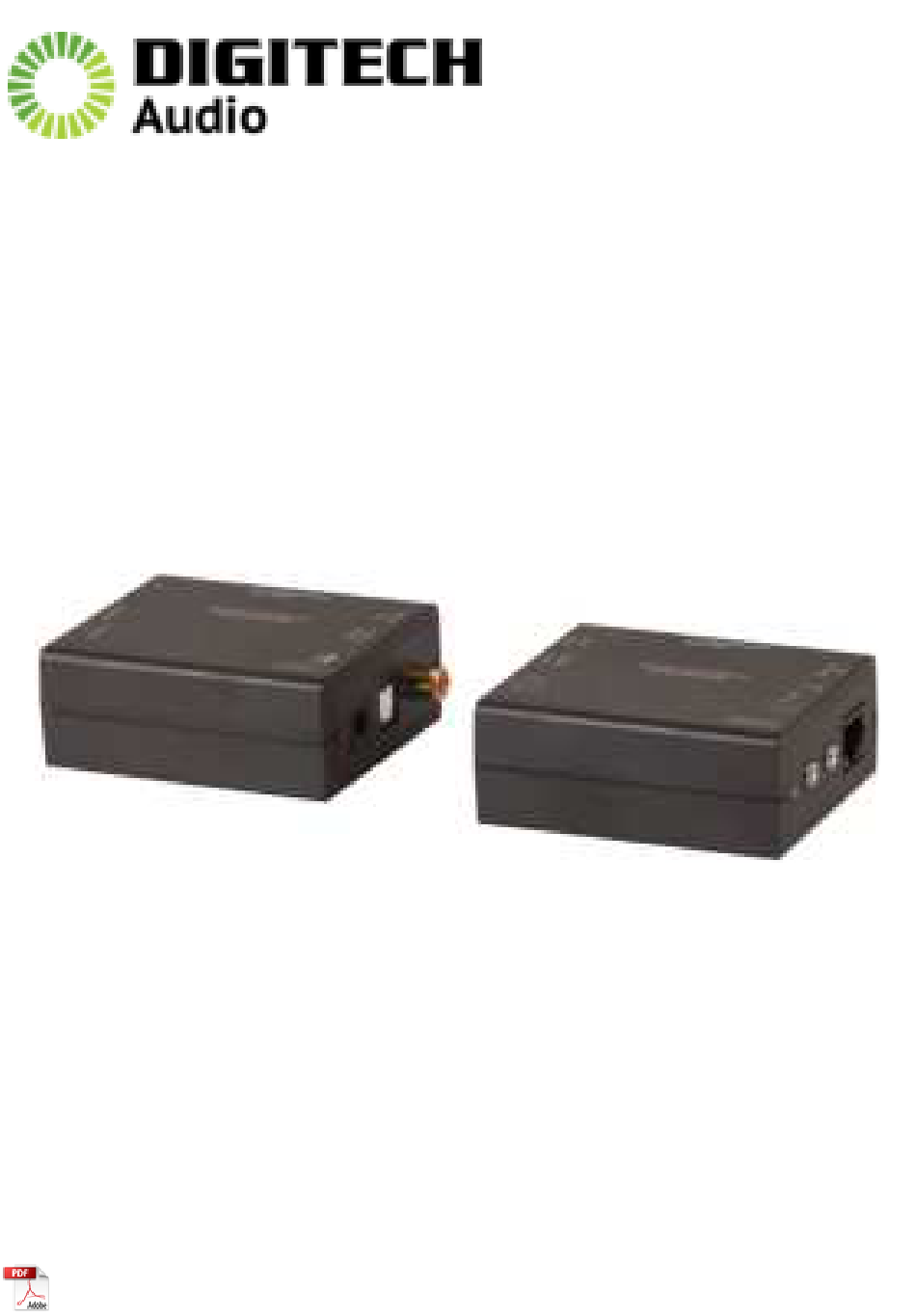

- Page 1 TOSLINK & Coax Audio Cat5e/6 Extender User Manual AC-1733...
-
Page 2: Box Contents
Box Contents: 1 x Audio Transmitter 1 x Audio Receiver 1 x Infrared Emitter 1 x Infrared Receiver 1 x Mains Power Adaptor... - Page 3 Connection Diagram:...
-
Page 4: Operation
Operation: Transmitter: 1. Connect a TOSLINK optical or coaxial audio cable (not included) from your source device such as a Blu-ray player, DVD player or media player to the audio input of the transmitter. 2. Connect a Cat5e or Cat6 ethernet network cable to the ethernet output of the transmitter. - Page 5 Receiver: 1. Connect the DC plug of the mains power adaptor to the power socket of the receiver. Plug in the mains power adaptor to a 240VAC wall socket and turn it on. 2. Connect the opposite end of the Cat5e or Cat6 ethernet network cable to the ethernet input of the receiver.
- Page 6 Safety: 1. Do not open or repair the device without professional assistance to avoid electrical shock. 2. Do not expose this unit to water, moisture or any liquid. 3. Position the unit in a well ventilated area to prevent the unit from overheating. 4.
-
Page 7: Specifications
Specifications: Transmission Range: Up to 200m (Cat5e/Cat6) Inputs: TOSLINK (Optical), Coax (RCA) Outputs: TOSLINK (Optical), Coax (RCA) Frequency: 192KHz Audio: Multi Channel LPCM 2/5.1/7.1CH, Dolby AC-3, DTS 5.1, DTS-HD Master Audio, DTS:X DTS-HD Master Audio, DTS:X Infrared Frequency: 38/56KHz (Transmitter) 30-60KHz (Receiver) Power: 12VDC, 500mA Power Consumption: 100mA (Max) - Page 8 Distributed by: TechBrands by Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia Ph: 1300 738 555 Int’l: +61 2 8832 3200 Fax: 1300 738 500 www.techbrands.com...
