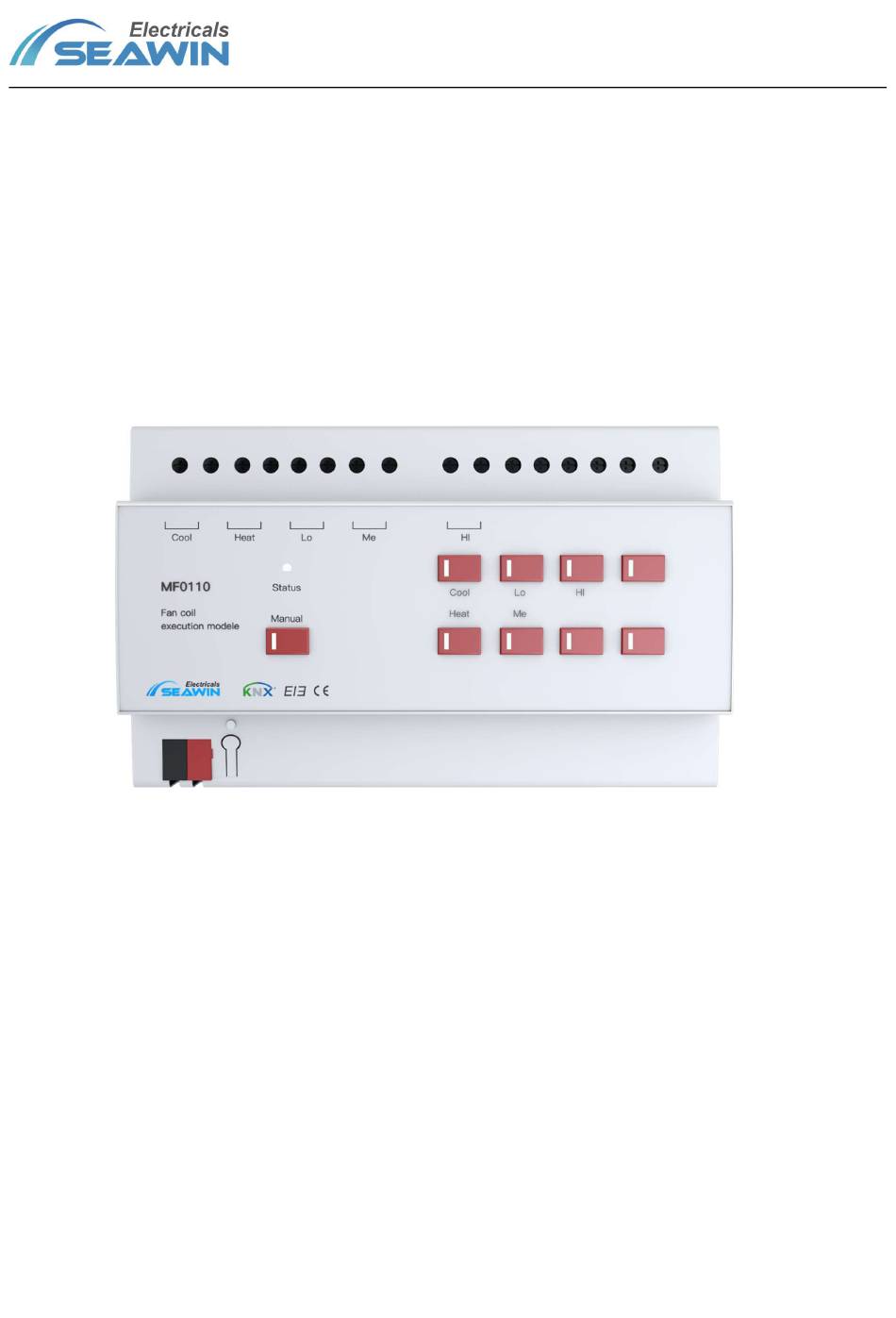

- Page 1 KNX/EIB BUS POWER ACTUATORS Product Manual 10A Series FCU Actuator Version: Ver2.1 MF0110 MF0210...
-
Page 2: Table Of Contents
KNX/EIB BUS POWER ACTUATORS Product Manual Contents 1 Summary ..........................................3 2 Product and Feature Overview ..................................3 3 Specification ......................................... 3 4 Dimensional and wiring diagrams ................................4 5 Product Operating Instructions..................................5 6 Parameter setting and communication object description ......................... 6 6.1 Switch setting function parameters .............................. -
Page 3: Product And Feature Overview
2. Product and Feature Overview The 10A Series FCU actuator are modular installation devices. Connect to the EIB / KNX system through the EIB bus terminal block, and use the engineering design tool software ETS software (version ETS4.0 or later) to assign physical addresses and set parameters. -
Page 4: Dimensional And Wiring Diagrams
KNX/EIB BUS POWER ACTUATORS Product Manual Bus voltage 21-30 VDC via KNX bus Quiescent Current ≤ 12mA Recharging current ≤ 20mA Static power ≤360mW Charging power consumption ≤ 600mW Each circuit 250VAC (50/60Hz), Max 10A (resistive load) Main output 2-way heating and cooling valve control, 3-way wind speed control Size(Lx W x H) 145mm x 90mm x 64mm Weight(approx.) -
Page 5: Product Operating Instructions

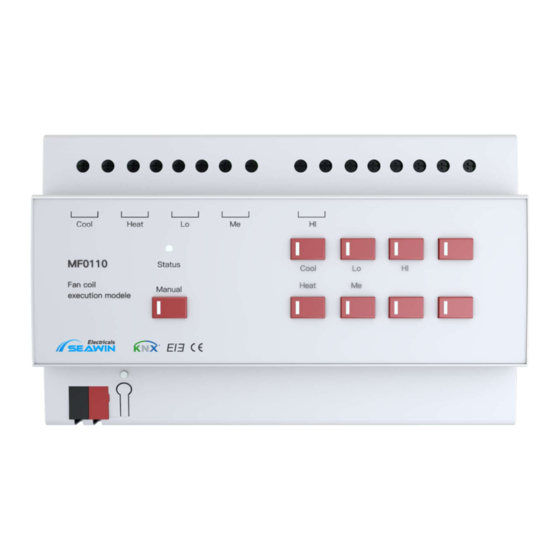

KNX/EIB BUS POWER ACTUATORS Product Manual Product Operating Instructions 5.1 MF0110 Description: Heating valves, cooling valves and low (Lo), medium (Me) and high (Hi) terminals for adjusting the wind speed: one in and one out, the aperture can be connected to φ4 wires; Description: Manual operation buttons, namely: cooling, heating, wind speed low, medium and high buttons ... -
Page 6: Parameter Setting And Communication Object Description
X represents the output of the corresponding channel. 1) Open the parameter setting interface of the 10A series FCU actuator in ETS5, as shown in Figure 6.1.1. The parameter "Channel X" represents the output of the corresponding channel. The parameter "Field control"... - Page 7 KNX/EIB BUS POWER ACTUATORS Product Manual represents the field control function. When the "off" command is sent, the relay state of each channel is saved and turned off. When the "on" command is sent, the last saved relay state is called. (Note: The "off" command cannot be sent twice in a row, because the current state is saved when the "off"...
- Page 8 KNX/EIB BUS POWER ACTUATORS Product Manual 3）Click the options in the red box above to set the parameters of each loop respectively. Take Channel A as an example below, as shown in pic 6.13 Pic 6.1.3 4) The parameter "Operating mode" is divided into three modes: Normal mode, Time mode and Cycle mode. The 10A FCU actuator only uses one normal mode.
-
Page 9: I/O Contact Interface Parameter Setting
KNX/EIB BUS POWER ACTUATORS Product Manual Status feedback, options: No (no feedback), Yes (with feedback), when "Yes" is selected, the "Transmission of status" parameter will appear, options: using read request only (state feedback is available when a request is issued), on change in status (the status change will have status feedback immediately), always on operation (as long as there is a control Status response command issued, there will be status feedback);... -
Page 10: Switch Model
KNX/EIB BUS POWER ACTUATORS Product Manual Pic 6.2.2 3）The parameter "function mode" is divided into 6 modes：Switch, Blind, Blind Position, Dimming, Dimming Position, Scene. 6.2.1 Switch model Specification Description Indicates the action of the corresponding loop control when the dry contact is triggered, the options are: on, off, toggle, user define;... -
Page 11: Blind Model
KNX/EIB BUS POWER ACTUATORS Product Manual 6.2.2 Blind Model Specification Description Indicates the curtain action controlled by the corresponding loop when the dry contact is Blind model triggered, options: up, down, toggle； Long press operation, options: yes, no. When selecting yes, the parameter "Long operation after:"... -
Page 12: Scene
KNX/EIB BUS POWER ACTUATORS Product Manual (Range:0-255)0-100% dry contact is triggered, can be filled in: 0-255; debounce time Indicates the time of debounce, optional: 10ms, 20ms...100ms. 6.2.6 Scene Model Specification Description Scene number Indicates the scene number called when the dry contact is triggered, can be filled in: 1-64; debounce time Indicates the time of debounce, optional: 10ms, 20ms...100ms. -
Page 13: Communication Object Description
KNX/EIB BUS POWER ACTUATORS Product Manual 6.4 Communication object description The communication object is the medium through which the device communicates with other devices on the bus, that is, only the communication object can communicate on the bus. The function of each communication object is described in detail below. - Page 14 KNX/EIB BUS POWER ACTUATORS Product Manual 5,10,15,20,25,30 Status, Channel X On/Off 1 bit C, R, T The communication object is enabled when the parameter "Status response" of "Channel X" selects "Yes", and the value of this communication object can directly indicate the switching status of the channel X relay. 61,69,77,85 Switch, Interface X On/Off...
-
Page 15: Safe Use And Maintenance
KNX/EIB BUS POWER ACTUATORS Product Manual mode set. Sheet1.1 7. Safe use and maintenance Read all instructions carefully before use. To establish a good ventilation environment. During use, pay attention to moisture-proof, shock-proof and dust-proof. Rain, contact with other liquids or corrosive gases are strictly prohibited. If it is wet or invaded by liquid, it should be dried in time.
