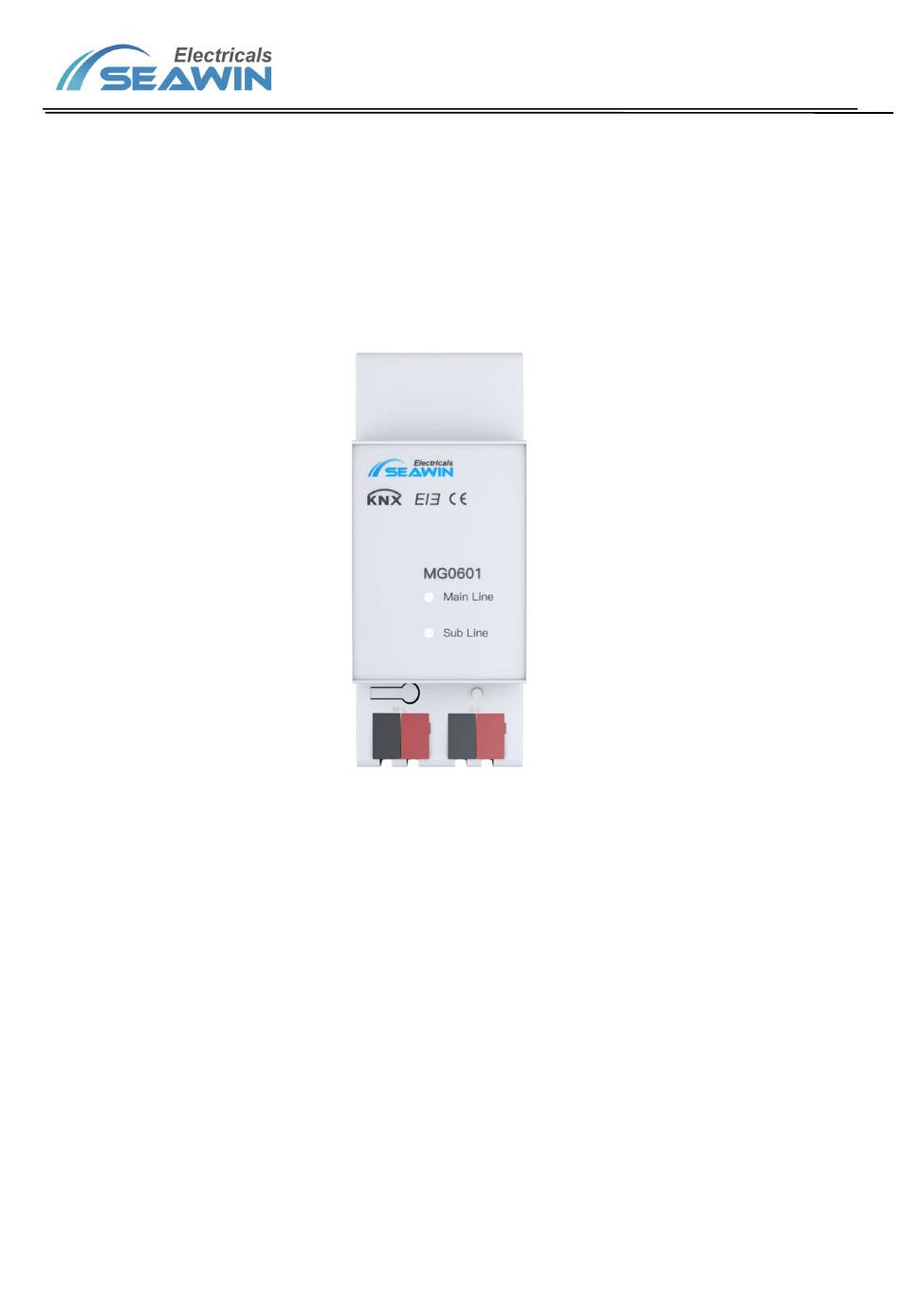

- Page 1 KNX/EIB BUS POWER ACTUATORS Product Man KNX Line Coupler Manual -Ver2.1 MG0601...
-
Page 2: Table Of Contents
KNX/EIB BUS POWER ACTUATORS Product Man Content 1 Overview ..........................................3 1.1 Product introduction ..................................... 3 1.2 Topology ........................................4 1.2.1 Line coupler ....................................4 1.2.2 Zone coupler ....................................5 1.2.3 Repeater ......................................5 2 Technical performance ...................................... 6 3 Dimension & wiring diagrams ..................................6 4 Instructions and operations .................................... -
Page 3: Overview

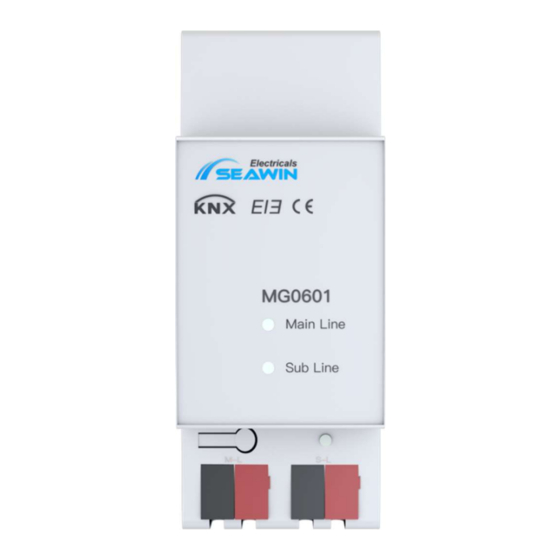

1.1 Product introduction The MG0601 coupler is a modular installation device that combines the functions of a KNX line coupler and a KNX line repeater. When used as a line coupler, it connects main lines and trunk lines or regional lines. As a line repeater, it can connect more than 64 devices on a bus. -
Page 4: Topology
1.2.1 Line coupler As a line coupler, the MG0601 connects a branch line to a main line, each line requiring it to have its own power supply. Line couplers play the role of filtering messages and reducing bus load. When used as a line coupler, its physical address is X.Y.0 (X = 0~15, Y = 0~15), that is, there can be up to 15 main lines, and there can be 64... -
Page 5: Repeater
1.2.3 Repeaters The MG0601 acts as a repeater, connecting the data streams of the two line segments but electrically isolated. In a line, up to three repeaters can be connected in parallel to form a line. This is how up to four line segments form the entire branch. -
Page 6: Dimension & Wiring Diagrams
KNX/EIB BUS POWER ACTUATORS Product Man Bus current ≤ 10mA Working power ≤ 3500mW Connect Main line / branch line EIB bus connection terminal Shell material PA66 Dimension (H x W x D) 90×38×64mm Weight(approx.) 0.08kg Installation method 35mm DIN-rail installation Transportation temperature - 25°C…+70°C Working temperature... -
Page 7: Function Configuration
KNX/EIB BUS POWER ACTUATORS Product Man Name Function Main Line indicator Steady light indicates that the main line is connected normally; ① light flashing indicates that the main line has communication Sub LineBranch line ② Blinking means there is communication on the branch line. indicator ③... - Page 8 KNX/EIB BUS POWER ACTUATORS Product Man MG0601 is configured through ETS4/5, which can be configured by parameters, associated with the address of the communication object group, etc. General Settings configuration parameters, the parameter "Device name" represents the device name, the...
-
Page 9: S-Line-> M-Line Control
KNX/EIB BUS POWER ACTUATORS Product Man 5.1 S-Line -->M- Line control Note: The group address format is A/B/C, where A is the main group address; The parameter "Individual framers(S->M)" indicates the filtering behavior of single frame from branch line to main line. -
Page 10: M-Line--> S-Line Control
KNX/EIB BUS POWER ACTUATORS Product Man 52 M-Line -->S- Line control Note: The group address format is A/B/C, where A is the main group address; The parameter "Individual framers (M->S)" indicates the filtering behavior of a single frame from the main line to the branch line. -
Page 11: Safe Use And Maintenance
KNX/EIB BUS POWER ACTUATORS Product Man The parameter "Grp.. repetition control if wrong ACK(M) means that if the main line ACK is wrong, the device will resend the group address data, the options are: No (no), Normal (can). Safe use and maintenance Read all instructions carefully before use。...
