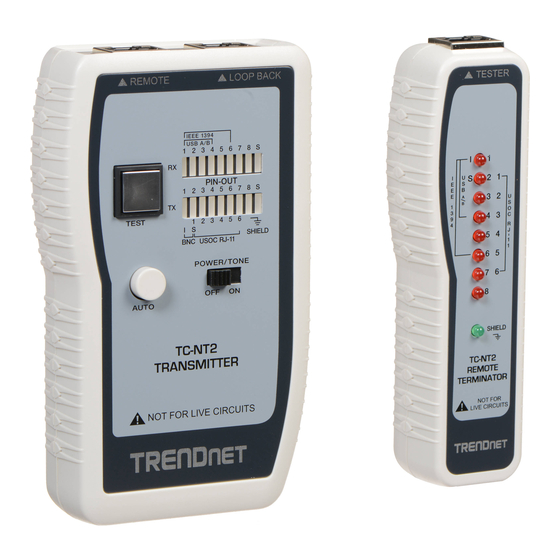

TRENDnet TC-NT2 Instruction Manual

Professional network tester
Hide thumbs Also See for TC-NT2:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual, User Manual
TC-NT2
TC-NT2
PROFESSIONAL
NETWORK TESTER
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC-NT2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TC-NT2

Summary of Contents for TRENDnet TC-NT2

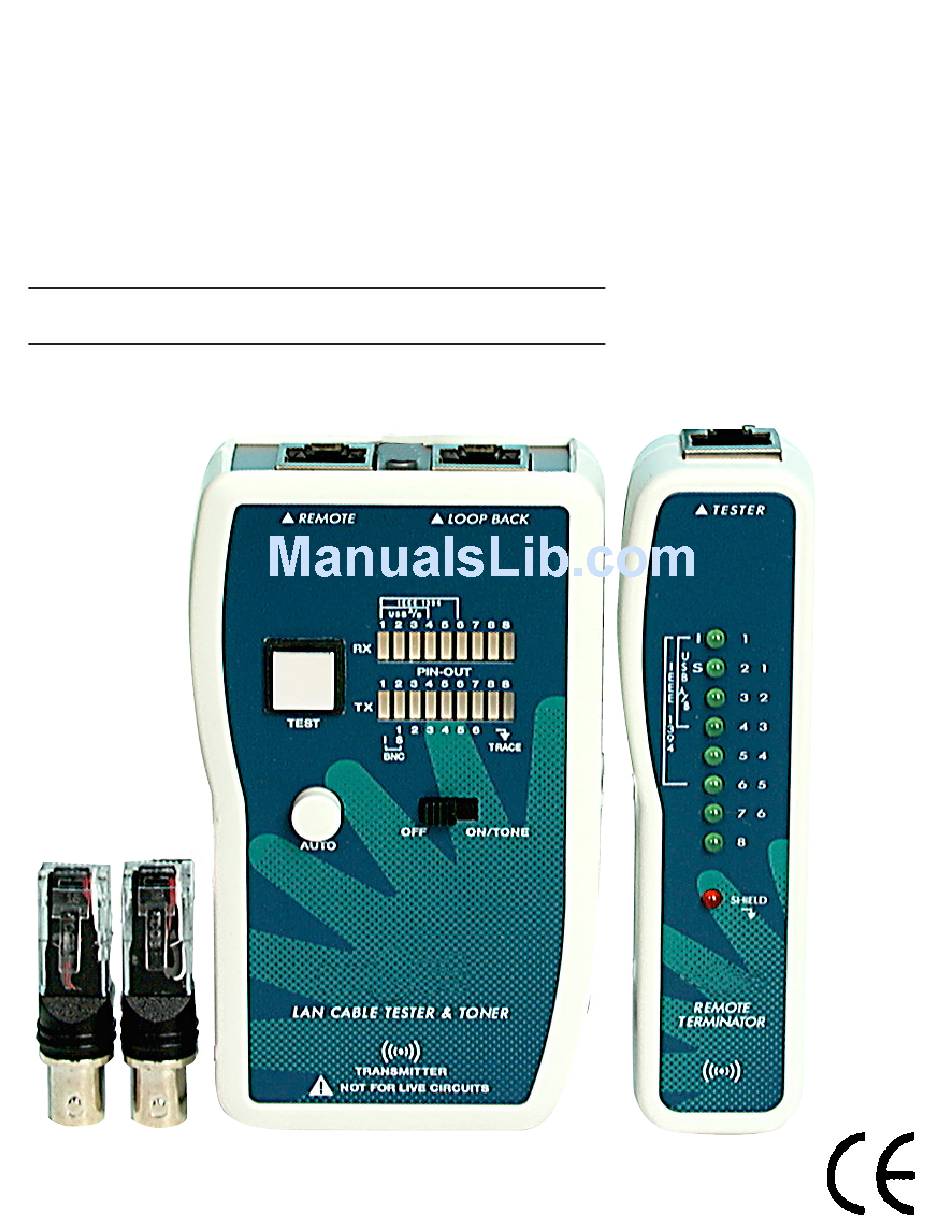

  • Page 1 TC-NT2 TC-NT2 PROFESSIONAL NETWORK TESTER INSTRUCTION MANUAL...
  • Page 2 The Network Cable Tester comes in two modular units, a master unit and a remote terminator. The modular design enables the tester to be used for local loop-back test of a patch cable or remote testing of pre-installed premise wiring. The Network Cable Tester verifies continuity of individual wires and identifies open, shorted and cross-connected wires.
  • Page 3 FEATURES: 1. Tests pin to pin connection of cables. 2. For loop-back and remote testing. 3. Auto - scan and manual step testing. 4. Checks for opens shorts and cross connected wires. 5. Tests Lan, Telcom, UTP/STP and coax BNC cables. 6.
  • Page 4 into the respective jacks (TX, RX) on the master unit. 2. Set the power switch to ON. (a) Auto Scan Mode: Press and release the button, the LED in the TX row will scroll in sequence (1,2,..., shield and repeat), to indicate the pins being tested. The RX row of LED will light (or not), in relation to the TX row, to indicate status.
  • Page 5 straight, reverse, miss-wire...etc.) can be determined. i) If more than one LED from the same row is lit or if TX & RX LEDs are unlit simultaneously- This indicates a ii) If a LED is skipped - This may indicate an or a burnt out LED.
  • Page 6 B. REMOTE TEST 1. Connect one end of the test cable to the MASTER unit marked TX . 2. Set the power switch to ON and set the tester to Auto scan. The TX LED will sequence (1,2,3,..., shield and repeat), to indicate the pins being tested.
  • Page 7 cable 1. Set the power switch to ON/TONE and by pressing the TEST button to select a pin to carry a tone or set the tester to AUTO scan, a sequencing tone is supplied on each of the 8 pins, shield and BNC cable. Or set the main unit on shield position.
  • Page 8 3. RJ45 to RJ45 patch cord. 4. Carrying pouch. 5. User guide. E. REMARKS 1. The Master tester runs on one 9V standard or alkaline battery. 2. Please make sure the battery is fresh and have sufficient power. If a battery is weak or fails, the LED indicators will be dim or fail to light.
