MobileView MVC-9002 Install Manual

Network and Streaming Configuration

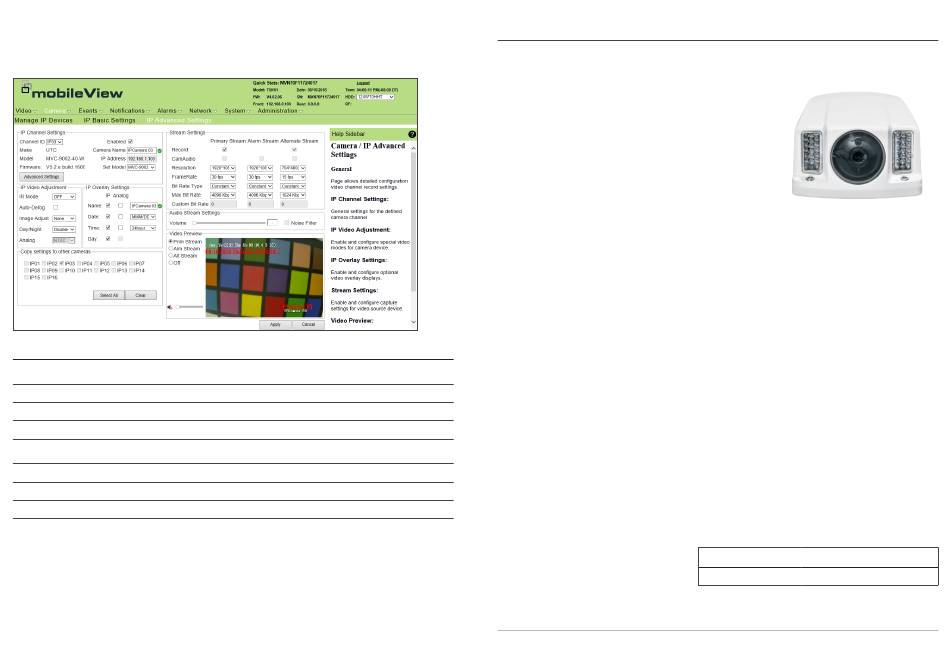

In the web browser, click the Camera tab and then IP Advance Settings on the toolbar to display the configuration screen.
Name Description
Quick Stats: The top section of the screen displays camera model and number, date, time, firmware version,
serial number, HDD, IP address and Radio Frequency (RF) associated to the wireless network.
Logout: A button to Logout from the system is available in the upper-right section.
IP Channel Settings: Shows general settings for defined camera channel.
IP Advance Settings: Displays camera model, serial number, firmware version, IP address, and encoding version.
IP Video Adjustment: Allows configuration of special video modes, such as day/night, IR, image adjust or Analog
output.
IP Overlay Settings: Gives access to optional video overlay displays.
Stream Settings Displays recording parameters for video source device.
Audio Stream Settings Shows noise filter and recorded volume parameters.
Video Preview Allows live preview of each of the three streams, and audio (if enabled).
Customer Service
Technical Support: 1-844-899-7366
General Enquiries: 1-877-630-7366
Email: service@seon.com
Product Information
For product information and documentation, please visit https://community.seon.com. Please contact Technical Support
if you do not have access credentials.
MVC-9002 Install Guide.

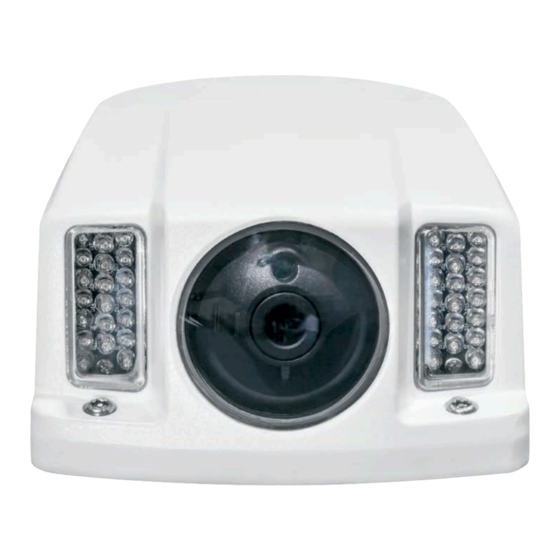

Product Overview
This is the Install Guide for MobileView camera models:
• MVC-9002-28-WI
• MVC-9002-40-WI
• MVC-9002-28-WI-G
Installation Environment
When installing your product, consider the
following:
• Electrical: Install electrical wiring carefully.
This should be done by qualified service
personnel. Always use a proper PoE switch
or a 12 VDC power supply to power the
camera. Do not overload the power cord
or adapter. PoE and 12VDC power sources
should NOT be used together; choose only
one.
• Ventilation: Ensure that the location planned
for the installation of the camera is well
ventilated.
• Temperature: Do not operate the camera
beyond the specified temperature, humidity,
or power source ratings. The operating
temperature of the camera is between -30 to
+65°C.
• Servicing: Do not attempt to repair this
camera yourself. Any attempt to dismantle
this product, except as required for normal
installation, will negate the warranty and may
also result in injury. Refer all servicing to
qualified service personnel.
• Cleaning: Do not touch the lens with your
fingers. If cleaning is necessary, use a
clean cloth with ethanol and gently wipe the
camera.
Clean -G model cameras with non-abrasive,
solvent-free neutral soap or detergent with
water and soft cloth. Rinse well with clean
lukewarm water.
MobileView
Package Contents
Check the package and contents for visible damage. If any
components are damaged or missing, do not attempt to use the
unit; contact the supplier immediately. If the unit is returned, it must
be shipped back in its original packaging.
Package contents:
• Camera
• Y Splitter cable (optionally used if 12VDC power is supplied
via Cat5)
• Hex wrench
• Quick Guide
• Drill Template
• Molex connector/pins
• Guard
Cable Requirements
For proper operation, adhere to the following cable and power
requirements for the cameras. All network cabling must be installed
according to applicable codes and regulations.
The table below lists the requirements for the cables that connect
to the camera. The camera has two options to receive power; only
one should be used at a time.
Table 1: Recommended power
PoE(802.3af): Cat5, 24 AWG Stranded or better
12VDC: 18 AWG, or larger
© Safe Fleet | Aug 2018 | All rights reserved | Part #: 700-1138 R1
