MobileView MVC-9002-28-WI Quick Manual

MobileView® 9002 Series Exterior Analog/IP Camera Quick Guide

Product Overview

This is the Quick Guide for MobileView camera models:
• MVC-9002-28-WI
• MVC-9002-40-WI

Installation Environment

When installing your product, consider the following:
• Electrical: Install electrical wiring carefully. It should be done
by qualified service personnel. Always use a proper PoE
switch or a 12 VDC power supply to power the camera. Do
not overload the power cord or adapter. PoE and 12VDC
power sources should NOT be used together; choose only
one.
• Ventilation: Ensure that the location planned for the
installation of the camera is well ventilated.
• Temperature: Do not operate the camera beyond the
specified temperature, humidity or power source ratings. The
operating temperature of the camera is between -30 to
+65°C.
• Servicing: Do not attempt to repair this camera yourself. Any
attempt to dismantle this product, except as required for
normal installation, will negate the warranty and may also
result in injury. Refer all servicing to qualified service
personnel.
• Cleaning: Do not touch the lens with your fingers. If cleaning
is necessary, use a clean cloth with ethanol and gently wipe
the camera.

Package Contents

Check the package and contents for visible damage. If any
components are damaged or missing, do not attempt to use the
unit; contact the supplier immediately. If the unit is returned, it
must be shipped back in its original packaging.
Package contents:
• Camera
• Y Splitter cable (optionally used if 12VDC power is supplied
via Cat5)
• Hex wrench
• Quick Guide
• Drill Template
• Molex connector/pins
• Guard
P/N 1073197A • REV 01.00 • JULY 2016

Cable Requirements

For proper operation, adhere to the following cable and power
requirements for the cameras. All network cabling must be
installed according to applicable codes and regulations.
The MV 9002 Exterior Camera figure lists the requirements for the
cables that connect to the camera. The camera has two options to
receive power; only one should be used at a time.
Table 1: Recommended power cable requirements
PoE(802.3af): Cat5, 24 AWG Stranded or better
12VDC: 18 AWG, or larger

Camera Description

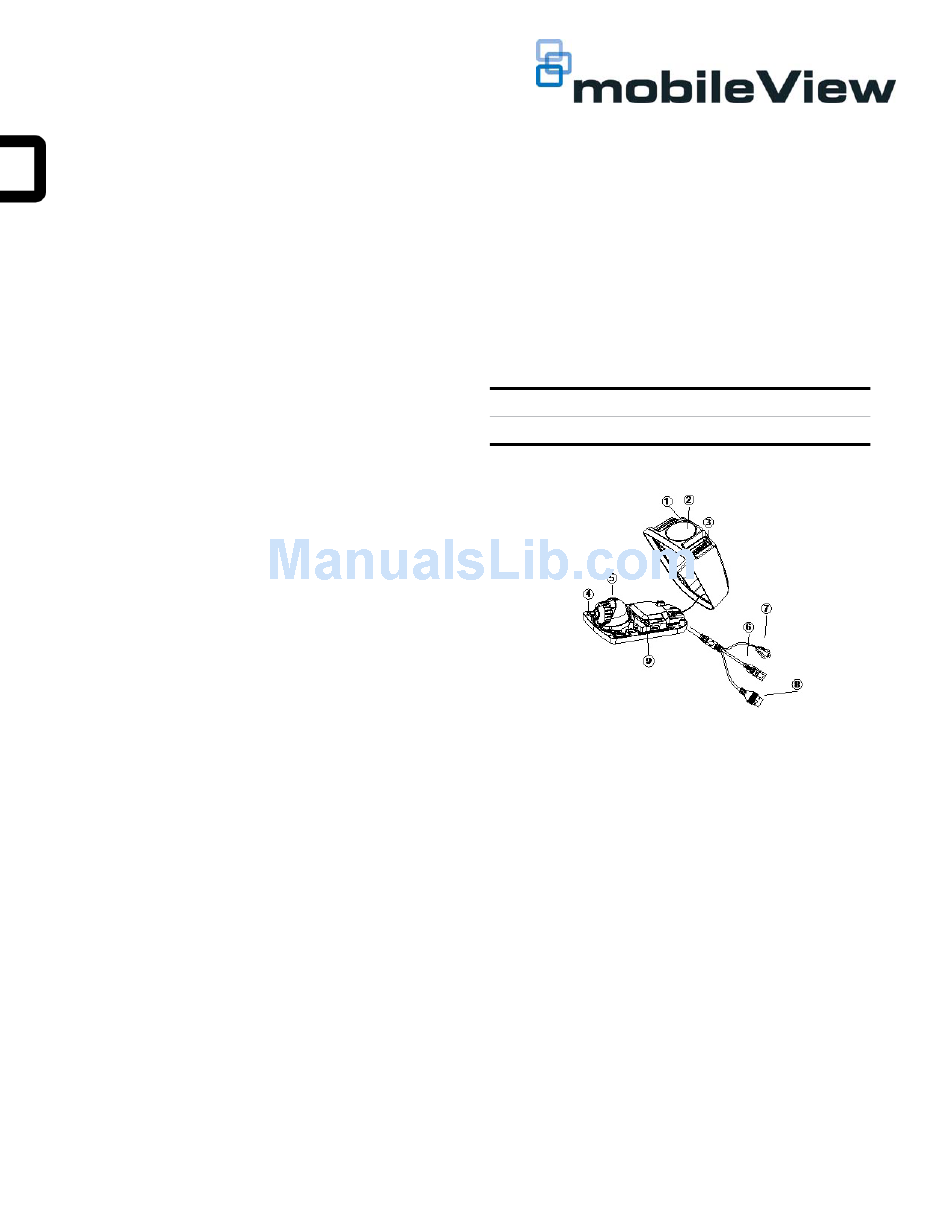

MV 9002 Exterior Camera
1. Cover
2. Bubble
3. IR
4. Base
5. Lens
6. BNC Cable
7. 12VDC Molex connector
8. Ethernet RJ45 cable
9. Reset Button

Setting up the Camera

To quickly put the camera into operation:
1. Prepare the mounting surface.
2. Mount the camera using the appropriate fasteners. Refer to
the Mounting the Camera section.
1
