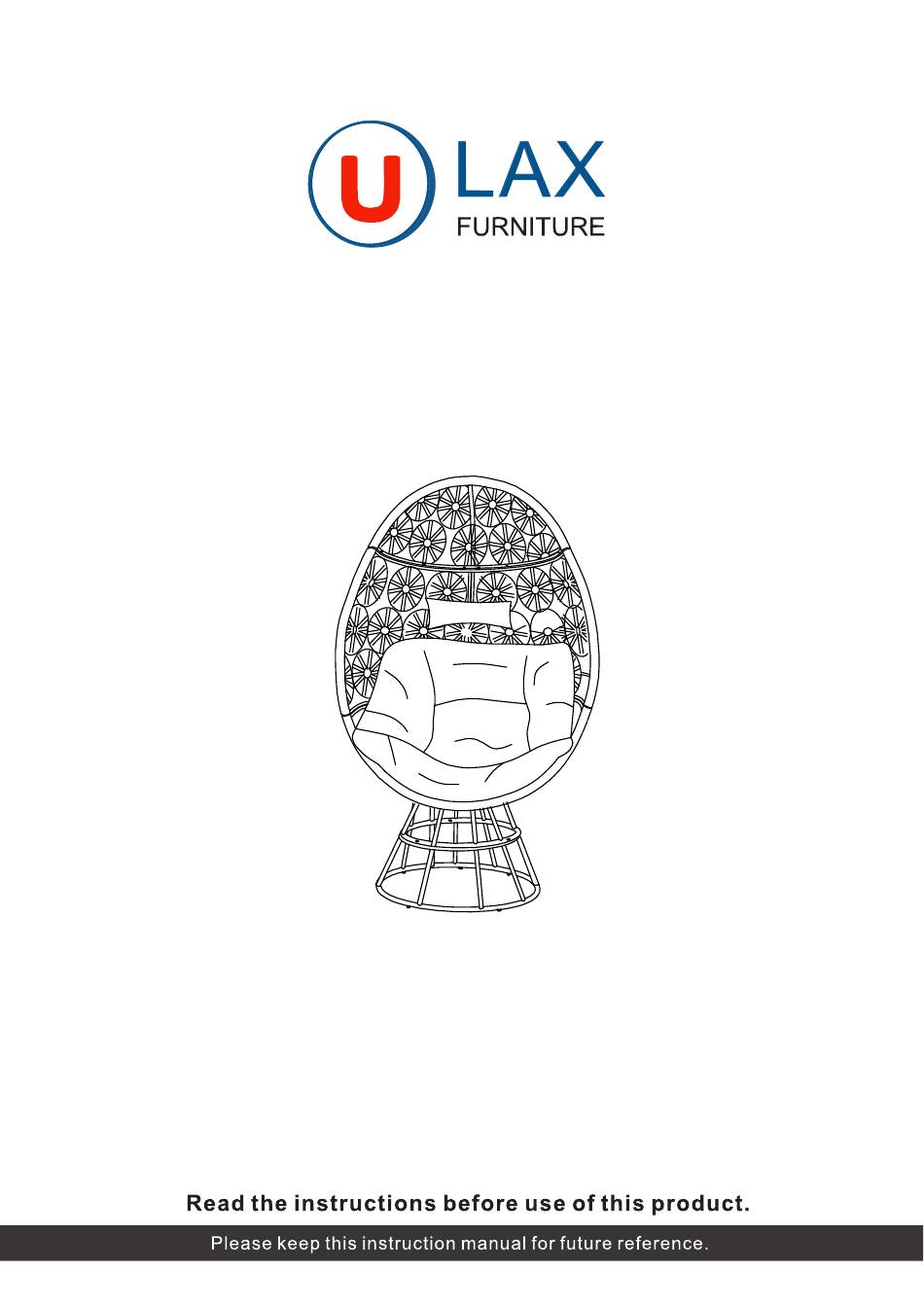

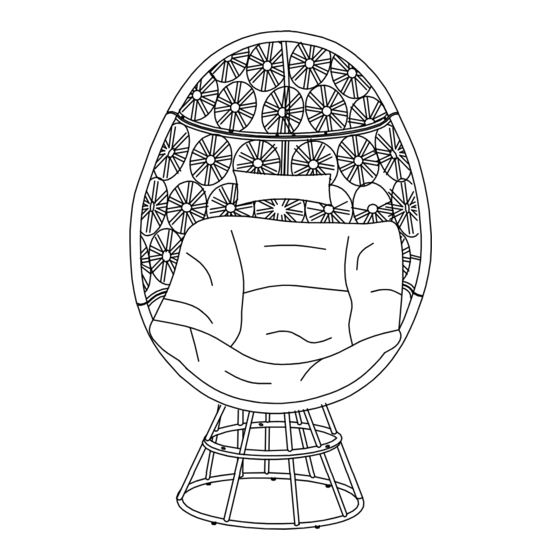

- Page 1 Basket Swing Chair Model#:970393...
- Page 3 PARTS Left Panel Rright Panel Top Panel Bottom Panel Base 1 PC 1 PC 1 PC 1 PC 1 PC Base Seat Cushion Head Pillow 1 PC 1 PC HARDWARE M6x20 Bolt M6x35 Bolt M6x38 Bolt Flat Washer 4 PCS (Extra 1) 40 PCS (Extra 2) 4 PCS (Extra 1) 14 PCS (Extra 1)
- Page 4 PRODUCT ASSEMBLY Attach left panel (A) to right panel (B) using bolts (2), nuts (5), nut caps (6) and bolt caps (7). NOTE: Please do not fully tighten bolts until unit is fully assembled. Attach bottom panel (D) to left panel (A) and right panel (B) using bolts (2&3), nuts (5), nut caps (6) and bolt caps (7).
- Page 5 PRODUCT ASSEMBLY Attach top panel (C) to left panel (A) and right panel (B) using bolts (2&3), nuts (5), nut caps (6) and bolt caps (7). NOTE: Please fully tighten all bolts at this time. Attach base (E) to base (F) using bolts (2), nuts (5), nut caps (6) and bolt caps (7). Screw the adjust levelers int the pre-drilled holes on the base (F).
- Page 6 PRODUCT ASSEMBLY Attach bottom panel (D) to base (E) using bolts (1), nuts (5),nut caps (6) and bolt caps (7). NOTE: Please fully tighten all bolts at this time. Carefully turn assembled unit upright on a flat surface. Place head pillow (H) and seat cushion (G) as shown below. ENJOY YOUR PRODUCT NOW! Pg.6...
- Page 7 PEAKHOME FURNISHINGS INC. 970 Roosevelt #202, Irvine, CA 92620 Check out more great products: www.peakhomefurnishings.com CONTACT US; WE’RE HERE 7 DAYS A WEEK TO HELP YOU! 1-818-963-1558 phf@peakhomefurnishings.com If we missed you call, please leave a detailed message including your name and phone number. We will call back as soon as possible. SOCIAL MEDIA Follow us on our Social Media by uploading a picture of our brands furnishings in your home, you will have chance to get...
