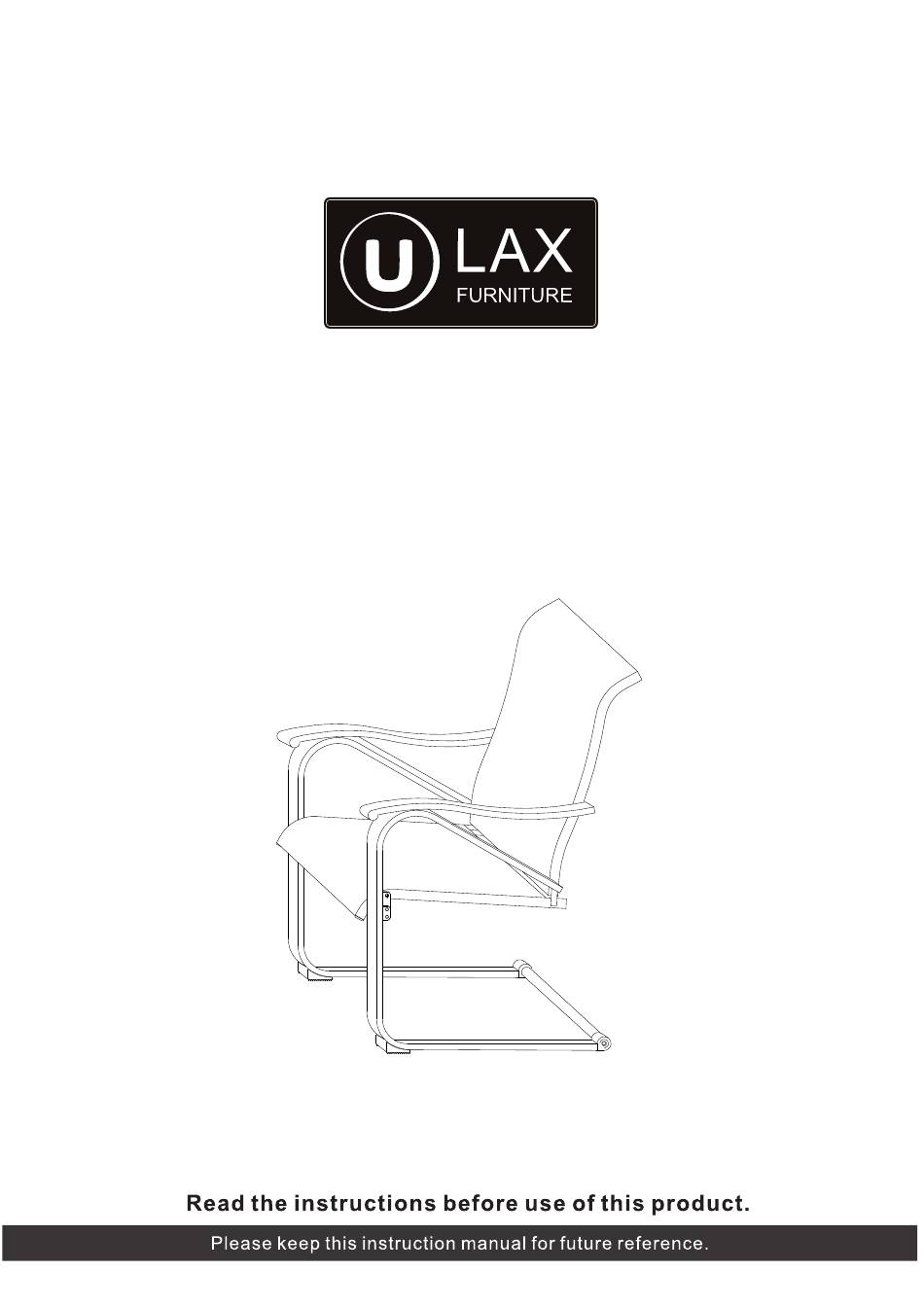

- Page 1 Patio Spring Chair...
- Page 3 PART Right Leg Left Leg Right Arm Left Arm Back Panel Seat Panel Stretcher Support Tube Bolt M6 *12 M6*12 Bolt M6 *20 M6*20...
- Page 4 PART Bolt M6 *25 M6*25 Bolt M6 *35 M6*35 Washer M6 14x2 Allen Key PART Bolt M6 *12 M6*12 Bolt M6 *20 M6*20 Bolt M6 *25 M6*25 Bolt M6 *35 M6*35...
- Page 5 PART Washer M6 Allen Key...
- Page 6 STEP1 Attach the stretcher (G) to leg (A) and leg (B) using bolts M6*12 (I) and washers (M). Attach the support tube (H) to leg (A) and leg (B) using bolts M6*12 (I) and washers (M). Please do not fully tighten bolts until unit is fully assembled. STEP2 Attach arm (C) and (D) to leg (A) and (B) using bolts M6*25 (K) and washers (M).
- Page 7 STEP3 Attach seat panel (F) to legs using bolts M6*20 (J) and washers (M). Connect seat panel (F) and back panel (E) using bolts M6*35 (L) and washers (M). Please do not fully tighten bolts until unit is fully assembled. STEP4 Please fully tighten all bolts using allen key (N) .
- Page 8 Cleaning and Maintenance Clean frame with mild soapy water, rinse thoroughly. Dry frame parts completely. Do not use bleach, acid, or other solvents on the fabric and metal parts. We recommend the use of furniture covers to protect the Patio Spring Chair when not in use.
