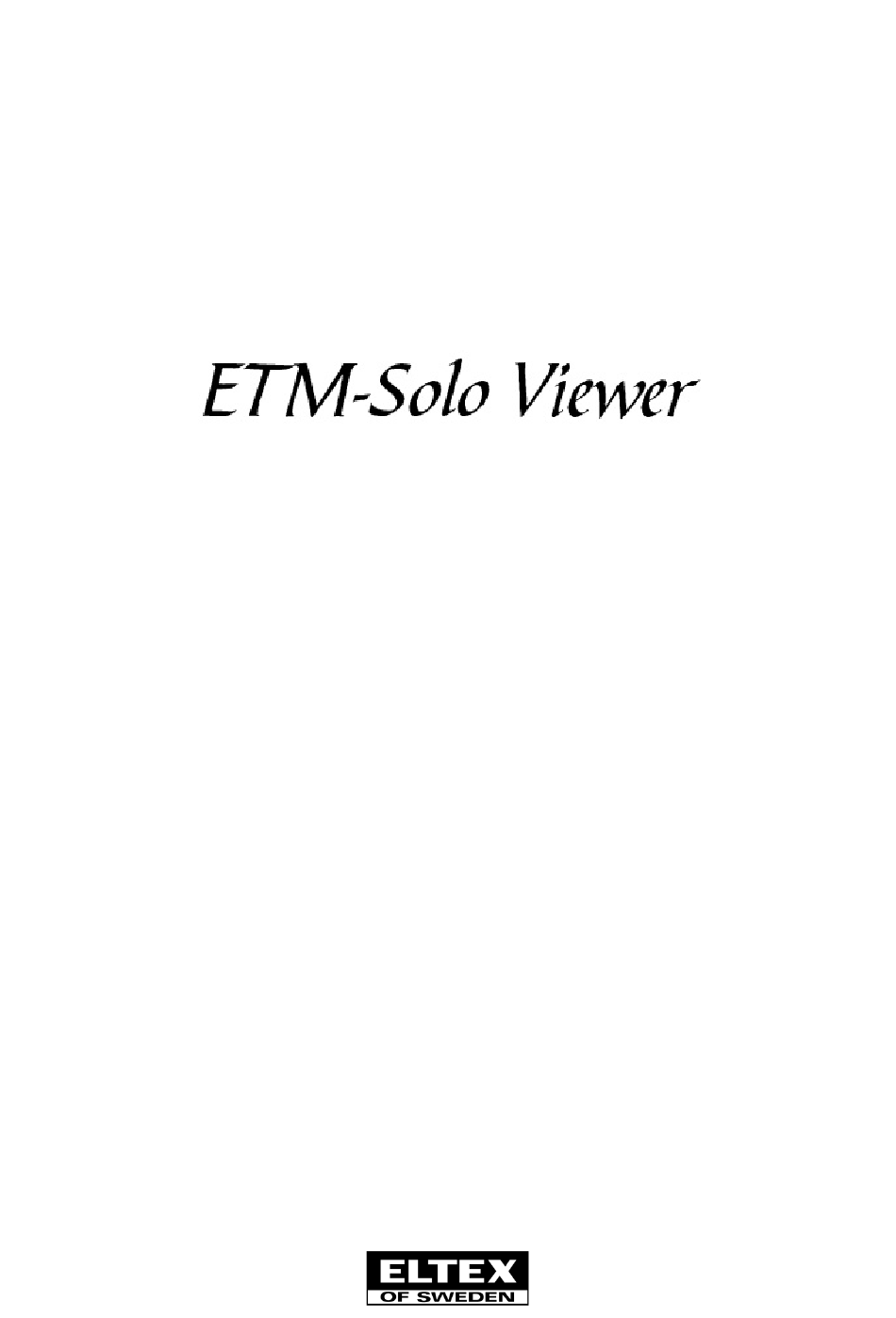

- Page 1 Manual Version 2.0 Document no.: TH-0321-03...
-
Page 2: Table Of Contents
Normal use ........................... 12 Quick start guide ......................12 Examine graphs ........................ 13 Mixing sensor types ......................13 Log file ..........................14 Logging data to file ......................14 File format ........................14 Troubleshooting ........................15 Copyright © , Eltex of Sweden AB... -
Page 3: Overview
• ETM-Solo Viewer PC software for viewing and logging yarn tension data • Optional CAN cables and power supply set, part no 76620, manufactured by Eltex of Sweden AB after customer specification. Or the customer can make it from the drawing in this document. -
Page 4: Installation
Type of interfaces Eltex supplies an USB to CAN interface as an accessory (component no. 6883) but the whole range of IXXAT CAN interfaces can be used if they are supported by driver interface VCI4. Copyright © , Eltex of Sweden AB... -
Page 5: Hardware Configuration
The cables between the sensors are straight modular cables with standard 6/6 modular plugs. Straight cables mean that for example the blue cable is connected to pin 1 in both connectors. These cables can also be supplied by Eltex. CAN bus termination For the CAN communication to work reliably the CAN bus needs to be terminated in both ends with a 120 Ohm Copyright ©... - Page 6 The end with the CAN interface is taken care of by the cable set described in Figure 1. But in the other end, in the last ETM-Solo sensor, a terminator is also needed. Eltex terminator plug, part no 75015, is a modular plug with built in terminating resistor. It shall be inserted into the free modular socket in the last sensor.
-
Page 7: License Administration
Note! Pressing Cancel also causes the main window to appear but the Start button will not work until a valid license key has been entered. • In the main window, click on Application title or the Eltex logo. The About window will open. Press Register button and enter key as explained above. -
Page 8: Check License
Type of license and max number of sensors allowed are written in the bottom half of the window. Main window Type of license is also shown to the right of the application title in the main window if the type is time limited or invalid. Copyright © , Eltex of Sweden AB... -
Page 9: User Interface
'Start' button is pressed. Settings Opens settings window, see below. No of detected sensors Status information showing number of ETM-Solo sensors found. This value is updated as soon as 'Start' button is pressed. Copyright © , Eltex of Sweden AB... -
Page 10: Settings Window
Max tension This setting is used both for displaying a dashed line in the graph area and as the maximum allowed tension value when in detection mode. Copyright © , Eltex of Sweden AB... - Page 11 Number of samples in a row the tension must cross the min or max level before detection status changes. This makes it possible to settle down the detection status indication in main window Copyright © , Eltex of Sweden AB...
-
Page 12: Normal Use
56008 1000 56060 1000 56071 2500 56072 1000 2500 56073 1000 56074 2500 56075 1000 2500 56076 1000 2500 56077 1000 2500 56078 2500 56079 1000 2500 Table 1: Settings for ETM-Solo sensors Copyright © , Eltex of Sweden AB... -
Page 13: Examine Graphs
The data written down to the log file is not affected by the ‘Tension range’ setting since the sensor’s raw values are used. See section Log file for more information. Copyright © , Eltex of Sweden AB... -
Page 14: Log File
This formula can easily be entered into a spreadsheet. Since the measuring range in the formula can be set differently for each column, sensors with different tension range can be logged at the same time. Copyright © , Eltex of Sweden AB... -
Page 15: Troubleshooting
CAN device initialization Check that IXXAT CAN driver VCI4 is installed. failed CAN controller initialization Check that IXXAT CAN interface is not already in use by another application failed (another ETM-Solo Viewer perhaps?). Copyright © , Eltex of Sweden AB... - Page 16 ELTEX OF SWEDEN AB ▪ Södra Portgatan 19 ▪ SE-283 50 OSBY ▪ TEL +46 479 536300 EPOST: info@eltex.se ▪ WEB: www.eltex.se 2023-05-15/TH-0321-03 Manual ETM-Solo Viewer EN.pdf Copyright © , Eltex of Sweden AB...
