ELTEX UPG-Stitch Instructions

Instruction for ELTEX UPG-Stitch
thread break detector for sewing machines
16760
General

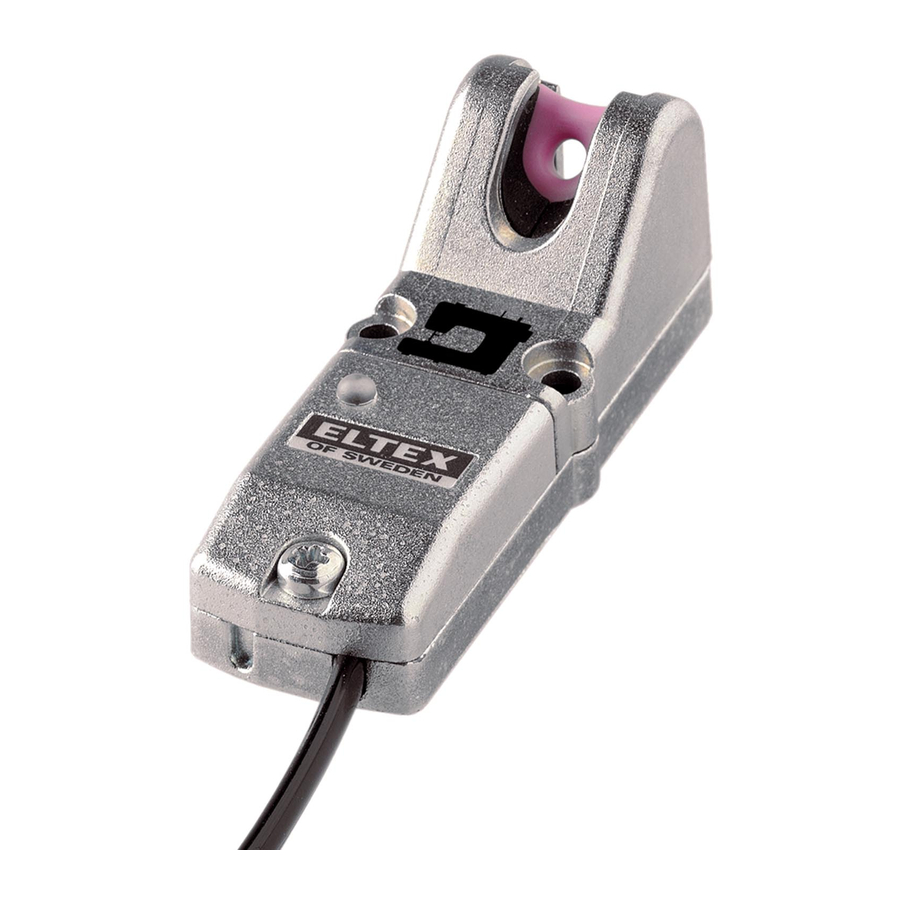

The UPG-Stitch is a thread break detector designed to be used on sewing machines.
It checks that the thread is moving in stitches. Both no thread movement and continuous thread movement will
result in an active output.
It operates on the piezoelectric principle, detecting the thread movement.
The ceramic sensor part can be used both as a closed eyelet and an open bar.
The thread must always contact the ceramic bar or eyelet, and the thread motion is detected most effectively when
it deviates about 10-15° as it passes through the sensor.
The LED is on when the thread is moving correctly.
It is flashing steady when the thread is not moving.
It is flashing irregularly when the thread is moving continuously.

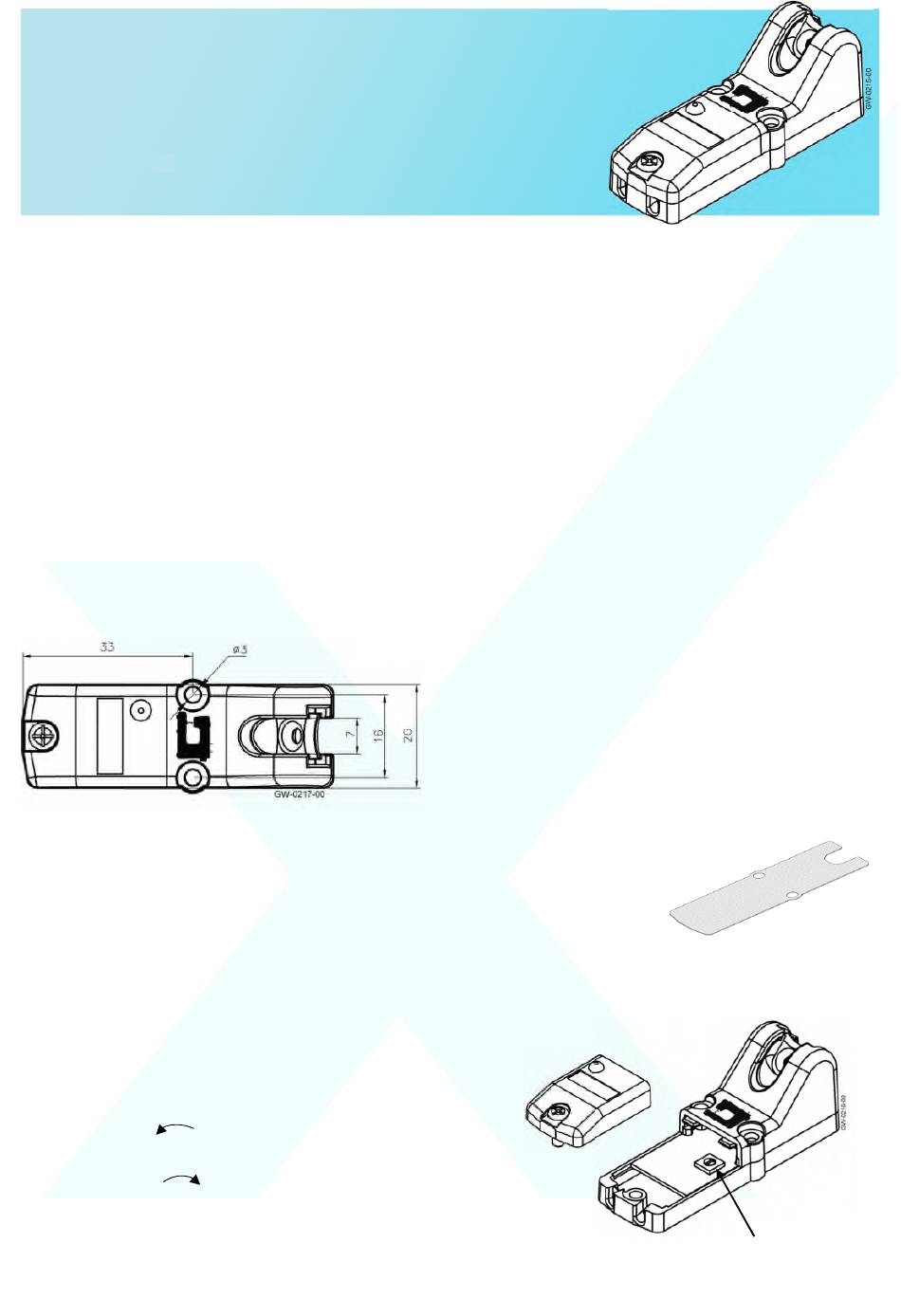

Fitting
The UPG-Stitch thread break detector is fitted on the
machine with two screws, maximum diameter 3 mm.
Adjustment
If the factory setting of the sensitivity is not suitable, it
can be adjusted with the potentiometer, located
under the lid.
When making adjustments, use a small screw-driver,
maximum size of 2.5 mm.
Minimum setting (
course, fast moving and/or high-tension thread.
Maximum setting (
moving, and low-tension thread.
counter clockwise) is for
clockwise) is for fine, slow
NOTE! Electrical interference caused by insufficient
machine ground can cause the UPG-Stitch to
indicate thread movement when no thread is moving.
This can be corrected by electrically insulating the
UPG-Stitch from the machine frame. Two nylon
screws and an insulation pad can be used to achieve
this. These parts are included with the UPG-Stitch
sensor. These parts can also be ordered from Eltex.
The part numbers are:
#4144 Nylon Screw,
#6868 Insulation pad
