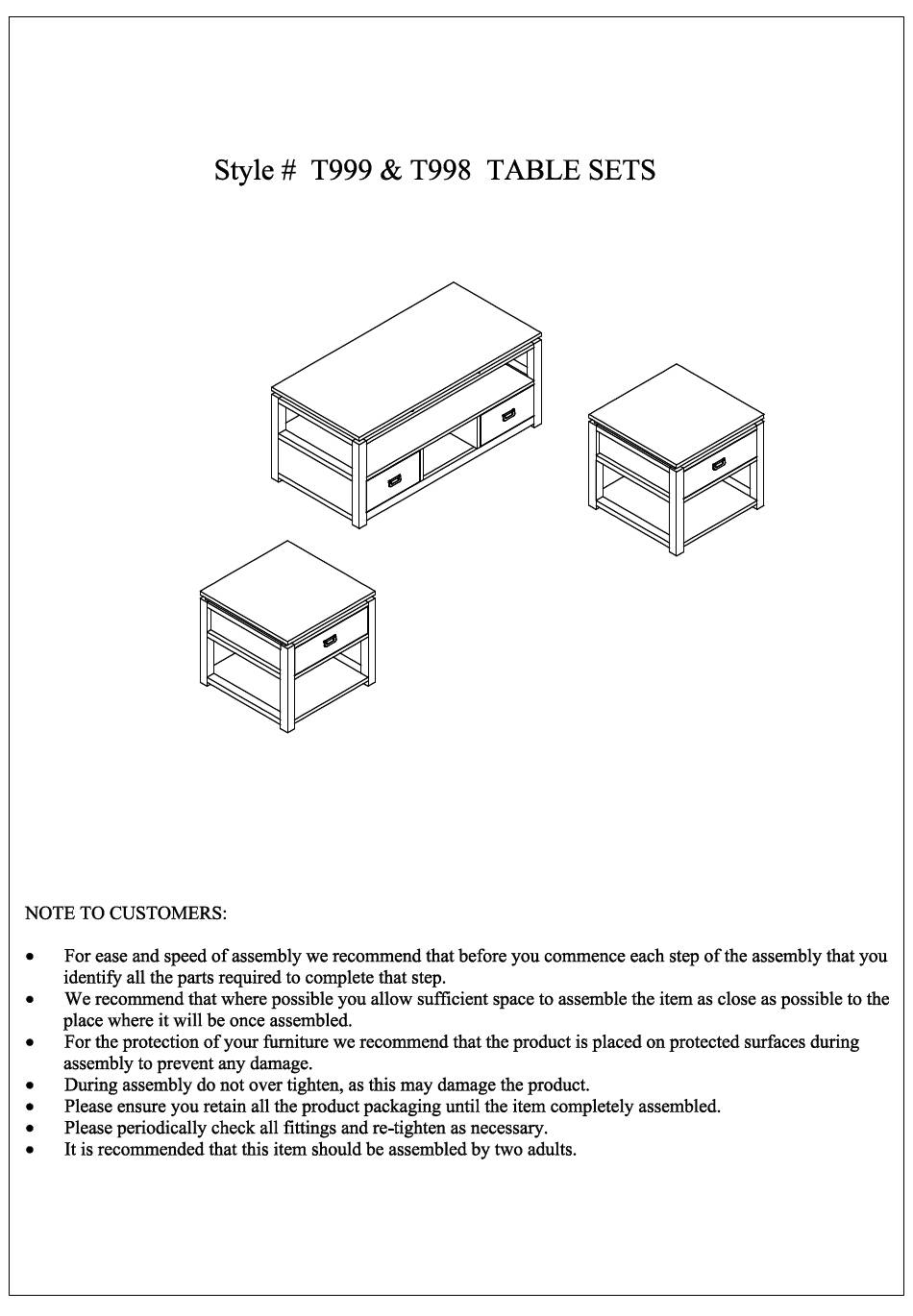

- Page 1 ASSEMBLY INSTRUCTIONS Page 1 of 12...
- Page 2 To insert a cam lock: (Please read below instructions before assembling) Diagram A 1. Insert cam screw into hole as shown in diagram A . Diagram B Make sure not to insert the cam screw: Too deep as shown in figure B as this will cause the cam screw to be misaligned and unable to interlock properly.
-
Page 3: Part List
Part List Quantity Quantity Quantity Quantity of 2 of 2 of 2 of 2 Rear Apron-End table Left frame-End table Top Panel-End table Right frame-End table Quantity Quantity Quantity Quantity of 2 of 2 of 2 of 4 Back Panel-End table Shelf -End table Drawer front Panel -End table Front Apron-End table... - Page 5 12sets 8pcs Step1: Assemble Front Aprons (5), Back Panel (6) and Shelf (7) to Left Frame (1) using Camlocks(A) & Wood Dowels (B) as shown above. 12sets Step 2: 8pcs Assemble Front Aprons (5), Back Panel (6) and Shelf (7) to Right Frame (2) using Camlocks(A) & Wood Dowels (B) as shown above.
- Page 6 Step 3: 4pcs 4pcs 6pcs Assemble Rear Apron (4) to the bottom of top panel (3) using Camlocks(A) & Wood Dowels (B), Screws (C) as shown above. 8pcs Step 4: 12pcs 8pcs Assemble Top Panel (3) to Left & Right Frame (1) (2)& Back Panel (6) using Camlocks(A) & Wood Dowels (B) as shown above.
- Page 7 Step 5: 8sets 8pcs 2SETS Assemble Drawer Side Panels (9) & (10) to Drawer Back Panel (11) using Screws(C). Insert Drawer Bottom Panel (12) into grooves on Drawer Side Panels(9) &(10). Attach Drawer Front Panel(8) to Drawer Side Panels(9) &(10) using Camlocks (A) . Attach Handle (F) to Drawer Front Panel (8)using included screws.
- Page 8 Step 7: 3sets 2pcs Assemble Lower Apron (22) to Bottom Panel(21) using Camlocks(A) & Wood Dowels (B) as shown above. Then tighten Center Leg(23) to the bottom of bottom panel (21). Step 8: 4sets 4pcs Assemble Dividers (18) & (19) to Shelf (17) using Camlocks(A) & Wood Dowels (B) as shown above.
- Page 9 Step 9: 4sets 4pcs Assemble Bottom Panel(21) to Dividers (18) &(19) using Wood Dowels (B) & Screws (G) as shown above. Step 10: Insert Back Panels (20) into grooves on Shelf (17 ) & Bottom Panel (21) as shown above.
- Page 10 Step 11: 12sets 12pcs Assemble Left & Right Frame(13) &(14) to Bottom Panel(21) , Shelf (17) and Upper Aprons (16) using Camlocks (A) & Wood Dowels (B) as shown above. Step 12: 2pcs 8SETS Assemble Top Panel (15) to Side Frames (13 )&(14), Upper Aprons(16) using Wood Dowels (B) & Bolts with washers (D) as shown above.
- Page 11 Step 13: 8sets 8pcs 2SETS Assemble Drawer Side Panels (25) & (26) to Drawer Back Panel (27) using Screws(C). Insert Drawer Bottom Panel (28) into grooves on Drawer Side Panels(25) &(26). Attach Drawer Front Panel(24) to Drawer Side Panels(25) &(26) using Camlocks (A) . Attach Handle (F) to Drawer Front Panel (24)using included screws.
- Page 12 8sets Step 15: Attach Plastic Connect Blocks (E) to Bottom Panel (21) to hold Back Panel (20) & Dividers (18) &(19), Shelf (17) using included Screws as shown above.
