Vibration Monitoring Unit
Series HE050
•
Vibration speed (mm/s, rms)
•
Vibration acceleration (g, rms)
•
Vibration acceleration (g, peak)
•
Temperature (°C)
•
Output 1: IO link or
digital switching output
•
Output 2: Analogue current output 4-20 mA or
digital switching output
•
Configurable frequency range: 10-1000 Hz
Date of manufacture:
Type description:
Serial no.:
Doc ID: M001-HE050 Stand: 2023-03-28
Betriebsanleitung
englisch
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hauber Elektronik HE050 Series
Summary of Contents for Hauber Elektronik HE050 Series
- Page 1 Vibration Monitoring Unit Series HE050 • Vibration speed (mm/s, rms) • Vibration acceleration (g, rms) • Vibration acceleration (g, peak) • Temperature (°C) • Output 1: IO link or digital switching output • Output 2: Analogue current output 4-20 mA or digital switching output •...
- Page 2 HAUBER-Elektronik GmbH Operating instructions Vibration Monitoring Unit Type HE050 HE050 Version: 2023-03-28 Attention! Prior to commissioning the product, the instruction manual must be read and un- derstood. All rights reserved, including rights to translation. Subject to modifications. Please contact the company with any questions: HAUBER-Elektronik GmbH Fabrikstraße 6 D-72622 Nürtingen...
-
Page 3: Table Of Contents
HAUBER-Elektronik GmbH Contents Contents ..............................3 Safety information ............................ 4 Scope of this instruction manual ......................4 Vibration Monitoring Unit Type HE050 ....................5 Intended Use ............................5 Scope of supply ............................5 Documents and Certificates ........................5 Fields of application and example labels ....................6 Information on the cULus validity range .................... -
Page 4: Safety Information
HAUBER-Elektronik GmbH Safety information General The safety instructions are intended to protect people and property from damage and hazards that could arise as the result of improper use, incorrect operation or other misuse or devices, especially in explosive areas. Therefore, please read the operating instructions carefully before working on the product or operating it. -
Page 5: Vibration Monitoring Unit Type He050

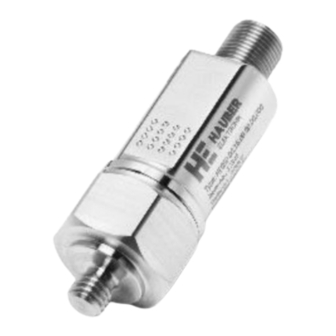

HAUBER-Elektronik GmbH Vibration Monitoring Unit Type HE050 Vibration monitoring unit type HE050 is a sensor that measures the vibration speed, vibration acceleration and temperature and can be used for purposes such as monitoring the absolute bearing vibrations of machinery in line with DIN ISO 10816. It offers the following features. •... -
Page 6: Fields Of Application And Example Labels
HAUBER-Elektronik GmbH Fields of application and example labels Coding HE050.0.0.x.xxx HE050.1.0.x.xxx HE050.0.1.x.xxx HE050.1.1.x.xxx E507077 E507077 E507077 E507077 Functional SIL 1 classification SIL 1 classification safety Example la- Standards applied You can find a list of standards, including the related issue dates, in the EU type examination certificate for the vibration monitoring unit. -
Page 7: Technical Data
HAUBER-Elektronik GmbH Technical data 10.1 General data The measuring range and frequency range can be adjusted via IO link. Measuring accuracy: ±10 % (according to DIN ISO 2954) ±0.5 % at calibration point Calibration point: without IO link: 90% measuring range @ 159.2 Hz with IO link: 1g (rms) @ 159.2 Hz Transverse sensitivity: <... -
Page 8: Electrical Data
HAUBER-Elektronik GmbH 10.2 Electrical data 18 – 30 V DC* Power supply: Power input (max.): 700 mA Power input (max.) 120 mA without switching contacts: Output Out 1 (pin 4) Output signal: IO link or switching contact Output Out 2 (pin 2) Output signal: 4–20 mA (proportional to the measuring range) or switching contact... -
Page 9: Operating Range Of The Vibration Monitoring Unit
HAUBER-Elektronik GmbH 10.3 Operating range of the vibration monitoring unit The operating range is independent from the measuring range. It can be derived from the maxi- mum acceleration, which is ± 15 g across all frequencies. The maximum measurable vibration speed is based on the formula ��... -
Page 10: Typical Frequency Response
HAUBER-Elektronik GmbH 10.4 Typical frequency response Fig. 2: Typical frequency response 10 Hz–1000 Hz Frequency in Hz Amplification in dB 10.5 Housing dimensions Fig. 3: Housing with M12 connector All dimensions in mm M12 connector Width A/F 24 Fixing Measuring direction along the fixing axis... -
Page 11: Mechanical Data
HAUBER-Elektronik GmbH 10.6 Mechanical data Additional materials and fixings can be found in section "Coding HE050" on page 18. Housing material: Stainless steel V2A, material no.: 1.4305 (standard) Fastening: Width across flats 24 (hexagonal) M8 x 8 mm Pitch: 1.25 mm (standard) Installation type: standing/vertical or lying/horizontal Measuring direction:... -
Page 12: Io-Link Description Of Functionality
HAUBER-Elektronik GmbH IO-Link description of functionality 12.1 Introduction IO-Link is the first standardised IO technology worldwide (IEC 61131-9) for the communication with sensors and also actuators. The powerful point-to-point communication is based on the long established 3-wire sensor and actuator connection without additional requirements regard- ing the cable material. -
Page 13: Switching Signal
HAUBER-Elektronik GmbH 12.6 Switching signal Two configurable switching signals ("pre-alarm" and "main alarm") are available in the sensor for each measured or process variable, which can be output via IO-Link or one of the two out- puts configured as a switching contact. The following settings can be configured individually for each switching signal: Limit values (in the respective unit of the measurement parameter) Time delay in ms (1 ms ... -
Page 14: Installation And Commissioning
HAUBER-Elektronik GmbH Installation and commissioning 13.1 General notes Installation and commissioning of the vibration monitoring unit may only be performed by an authorised specialist familiar with the safety regulations governing handling electrical components. Protect the connection cable and any extension cable from electrical interfe- rence and mechanical damage! Local regulations and instructions must be observed in doing so! The connection cable used must be suitable for the field of application. -
Page 15: Assembly And Disassembly
HAUBER-Elektronik GmbH Assembly and disassembly 14.1 General notes Assembly and disassembly work on and with the vibration monitoring unit may only be perfor- med by an authorised specialist familiar with the safety regulations governing handling electrical components! The housing of the vibration monitoring unit must be earthed via the fixing – through the machine earth of the mounting surface or through a separate pro- tective conductor (PE)! 14.2... -
Page 16: Accessories
HAUBER-Elektronik GmbH Accessories The following accessories are available for the vibration monitoring unit type HE050. Connection cables (other lengths available by request): • Cable type C (M12 connector on open end of wire) • 1.5 m (item no.: 13051) • 3 m (item no.: 13052) •... -
Page 17: Maintenance And Repair
HAUBER-Elektronik GmbH Maintenance and repair 16.1 General notes Repair and cleaning work on vibration monitoring units may only be performed by an authorised specialist familiar with the safety regulations governing hand- ling electrical components. Before repair and cleaning disconnect the monitoring unit from the power supply! Separate plug connections must always be de-energized! Immediately replace defective connection cables! A defective vibration monitoring unit must be completely replaced! -
Page 18: Coding He050
HAUBER-Elektronik GmbH Coding HE050 HE050. 0. HE series 050 = vibration sensor Certifications 0 = CE / IEC / UKCA / cULus 1 = CE / IEC / UKCA / cULus + SIL 1 IO link 0 = no IO link 1 = IO link (alternative function output 1) Housing 0 = 1.4305 (V2A) with fastening M8 x 8 mm;... -
Page 19: Transport, Storage And Disposal
HAUBER-Elektronik GmbH Transport, storage and disposal The sensor must be protected from damaging environmental factors and mechanical damage during transport with the use of adequate packing. The sensor may not be stored in ambient temperatures outside the permitted operating tempe- rature.
