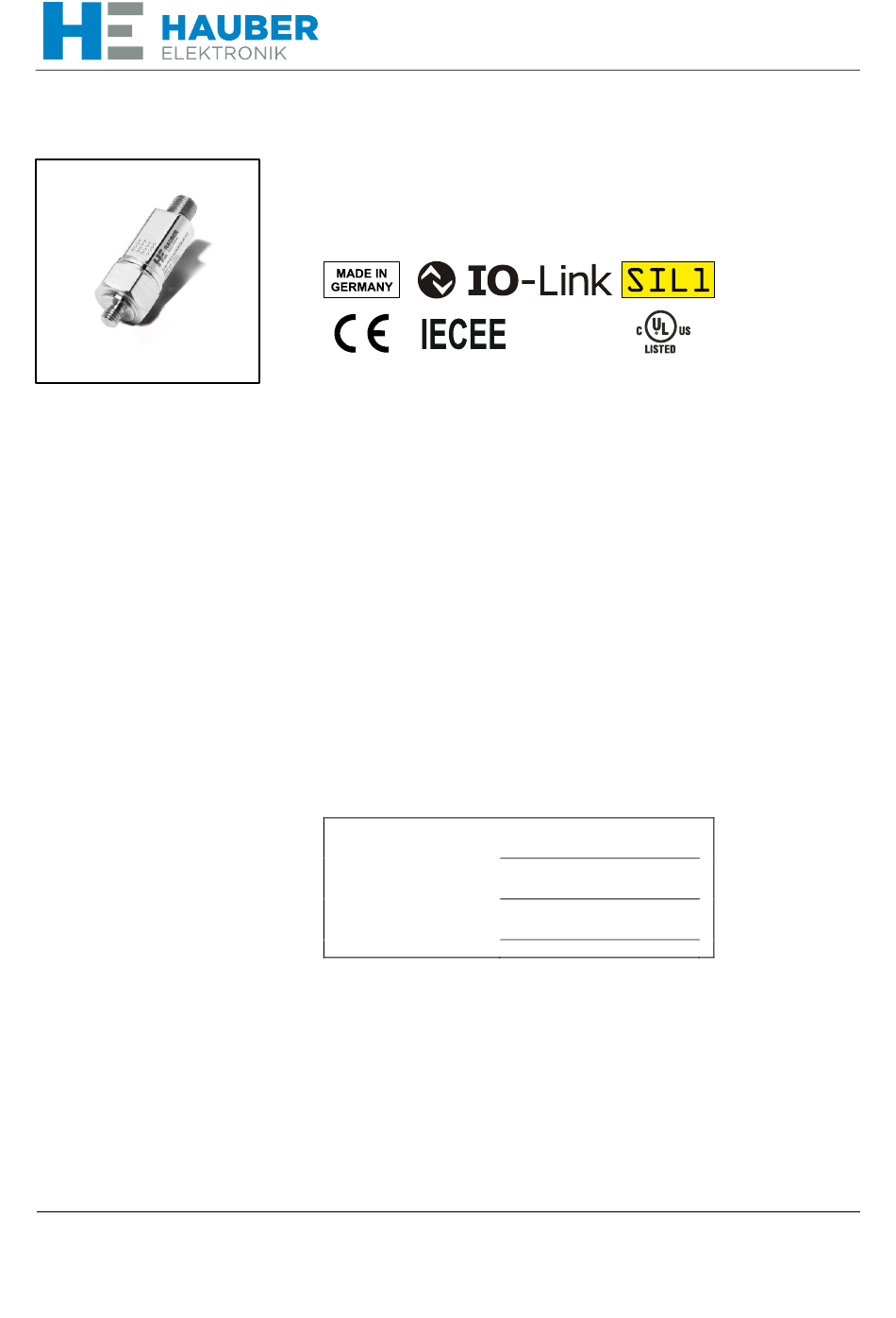

Vibration monitoring unit
Series HE050
•
Vibration velocity (mm/s, rms)
•
Vibration acceleration (g, rms)
•
Vibration acceleration (g, rms)
•
Temperature (°C)
•
Output 1: IO-Link or
Digital switching output
•
Output 2: Analogue current output 4...20 mA or
Digital switching output
•
Adjustable frequency range: 10 Hz ... 1000 Hz
Date of manufacture:
Type description:
Serial no.:
Doc ID: M001-HE050 Stand: 2022-05-20
Betriebsanleitung
englisch
Advertisement
Table of Contents
Related Manuals for Hauber Elektronik HE050 Series
Summary of Contents for Hauber Elektronik HE050 Series
- Page 1 Vibration monitoring unit Series HE050 • Vibration velocity (mm/s, rms) • Vibration acceleration (g, rms) • Vibration acceleration (g, rms) • Temperature (°C) • Output 1: IO-Link or Digital switching output • Output 2: Analogue current output 4…20 mA or Digital switching output •...
- Page 2 HAUBER-Elektronik GmbH Operating instructions Vibration Monitoring Unit Type HE050 HE050 Version: 2022-05-20 Attention! Prior to commissioning the product, the instruction manual must be read and un- derstood. All rights reserved, including rights to translation. Subject to modifications. Please contact the company with any questions: HAUBER-Elektronik GmbH Fabrikstraße 6 D-72622 Nürtingen...
-
Page 3: Table Of Contents
HAUBER-Elektronik GmbH Inhaltsverzeichnis Inhaltsverzeichnis ............................ 3 Safety information ............................ 4 Scope of this instruction manual ......................4 Vibration monitoring unit type HE050 ...................... 5 Intended use ............................5 Scope of supply ............................5 Documents and certificates........................5 Application areas and example labels ..................... 6 Information on the cULus validity range .................... -
Page 4: Safety Information
HAUBER-Elektronik GmbH Safety information General The safety instructions are intended to protect people and property from damage and hazards that could arise as the result of improper use, incorrect operation or other misuse or devices, especially in explosive areas. Therefore, please read the operating instructions carefully before working on the product or operating it. -
Page 5: Vibration Monitoring Unit Type He050
HAUBER-Elektronik GmbH Vibration monitoring unit type HE050 The HE050-type vibration monitoring unit is an IO-Link sensor for measuring of vibration veloc- ity, vibration acceleration and temperature and is used to measure and monitor absolute bear- ing vibrations in machines in line with DIN ISO 10816. It has the following features: •... -
Page 6: Application Areas And Example Labels
HAUBER-Elektronik GmbH Application areas and example labels Coding HE050.0.0.x.xxx HE050.1.0.x.xxx HE050.0.1.x.xxx HE050.1.1.x.xxx E507077 E507077 E507077 E507077 Safety SIL 1 SIL 1 integrity Klassifizierung Klassifizierung level Example labels Standards applied You can find a list of standards, including the related issue dates, in the EU type examination certificate for the vibration monitoring unit. -
Page 7: Technical Data
HAUBER-Elektronik GmbH Technical data 10.1 General data Both the measuring range and the frequency range can be adjusted via IO- Link. Measurement accuracy: ±10% (as per DIN ISO 2954) ±0,5% at calibration point Calibration point Variants w/o IO-Link: 90% of measuring range @ 159.2 Hz Variants with IO-Link: 1 g (rms) @159.2 Hz Cross-sensitivity: <... -
Page 8: Electrical Data
HAUBER-Elektronik GmbH 10.2 Electrical data 18…30 V DC* Voltage supply: Current supply (max.): 700 mA Output 1 (Pin 4) Output signal: IO-Link or switching output Output 2 (Pin 2) Output signal: 4–20 mA (proportional to the measuring range) or switching output Switching outputs Output signal:... -
Page 9: Operating Range Of The Vibration Monitoring Unit
HAUBER-Elektronik GmbH 10.3 Operating range of the vibration monitoring unit The operating range is independent of the measuring range. It is deduced from the maximum acceleration, which is 15 g across all frequencies. The maximum measurable vibration velocity is determined by the formula ��... -
Page 10: Typical Frequency Response
HAUBER-Elektronik GmbH 10.4 Typical frequency response 10 Hz to 1,000 Hz The frequency response is recorded using a reference sensor. • 4 Hz. . . 1,200 Hz acceleration sensor Fig. 2: Typical frequency response 10 Hz–1,000 Hz Frequency in Hz Amplification in dB... -
Page 11: Mechanical Data
HAUBER-Elektronik GmbH 10.5 Mechanical data Additional materials and fixings can be found in section "Coding HE050" on page 20. Housing material: Stainless steel V2A, material no.: 1.4305 (standard) Fastening: Width across flats 24 (hexagonal) M8 x 8 mm Pitch: 1.25 mm (standard) Installation type: standing/vertical or lying/horizontal Measuring direction:... -
Page 12: Housing Dimensions
HAUBER-Elektronik GmbH 10.6 Housing dimensions Fig. 3: Housing with M12 connector All dimensions in mm M12 connector Width A/F 24 Fixing Measuring direction along the fixing axis Connection Plug, M12, 4-pole 18…30 V DC Pin 1: 4…20 mA or switching output Pin 2: Out 2 Pin 3:... -
Page 13: Io-Link Description Of Functionality
HAUBER-Elektronik GmbH IO-Link description of functionality 12.1 Introduction IO-Link is the first standardised IO technology worldwide (IEC 61131-9) for the communication with sensors and also actuators. The powerful point-to-point communication is based on the long established 3-wire sensor and actuator connection without additional requirements regard- ing the cable material. -
Page 14: Switching Signal
HAUBER-Elektronik GmbH 12.6 Switching signal Two configurable switching signals ("pre-alarm" and "main alarm") are available in the sensor for each measured or process variable, which can be output via IO-Link or one of the two out- puts configured as a switching contact. The following settings can be configured individually for each switching signal: Limit values (in the respective unit of the measurement parameter) Time delay in ms (1 ms ... -
Page 15: Installation And Commissioning
HAUBER-Elektronik GmbH Installation and commissioning 13.1 General notes Installation and commissioning the vibration monitoring unit must be performed by an authorised specialist who is familiar with the safety regulations when handling electrical components. Protect the connection cable and any extension cables from electrical inter- ference or mechanical damage. - Page 16 HAUBER-Elektronik GmbH Evaluation unit (measuring device, SPS, IO-Link Master…) Cable shield Evaluation unit earth potential...
-
Page 17: Assembly And Disassembly
HAUBER-Elektronik GmbH Assembly and disassembly 14.1 General notes Assembly and disassembly work on and with the vibration monitoring unit may only be per- formed by an authorised specialist familiar with the safety regulations governing handling elec- trical components. The housing of the vibration monitoring unit must be earthed via the fixing – through the machine earth of the mounting surface or through a separate pro- tective conductor (PE). -
Page 18: Maintenance And Repair
HAUBER-Elektronik GmbH Maintenance and repair 15.1 General notes Repair and cleaning work on vibration monitoring units may only be performed by an authorised specialist familiar with the safety regulations governing han- dling electrical components. Before repair and cleaning disconnect the monitoring unit from the power sup- ply! Separate plug connections must always be de-energized! Immediately replace defective connection cables! A defective vibration monitoring unit must be completely replaced! -
Page 19: Transport, Storage And Disposal
HAUBER-Elektronik GmbH Transport, storage and disposal The sensor must be protected from damaging environmental factors and mechanical damage during transport with the use of adequate packing. The sensor may not be stored in ambient temperatures outside the permitted operating tempe- rature. -
Page 20: Coding He050
HAUBER-Elektronik GmbH Coding HE050 HE050. 0. HE series 050 = IO link sensor Certifications 0 = CE / IEC / cULus / EAC 1 = CE / IEC / cULus / EAC + SIL 1 IO link 0 = No IO-Link 1 = IO-Link (Alternative Function for OUT 1) Housing 0 = 1.4305 (V2A) with fastening M8 x 8 mm;... - Page 21 HAUBER-Elektronik GmbH...
-
Page 22: Eu Declaration Of Conformity
HAUBER-Elektronik GmbH EU declaration of conformity Declaration of conformity Norms and directives HAUBER-Elektronik GmbH EU Directive Norms Fabrikstraße 6 2014/30/EU EN 61000-6-7:2005 D-72622 Nürtingen-Zizishausen EN 61000-6-3:2007 + declares under our sole responsibility that the A1:2011 products listed below that relate to this decla- ration meet the basic health and safety re- EN 55011:2016 + quirements of the norms and directives below.
