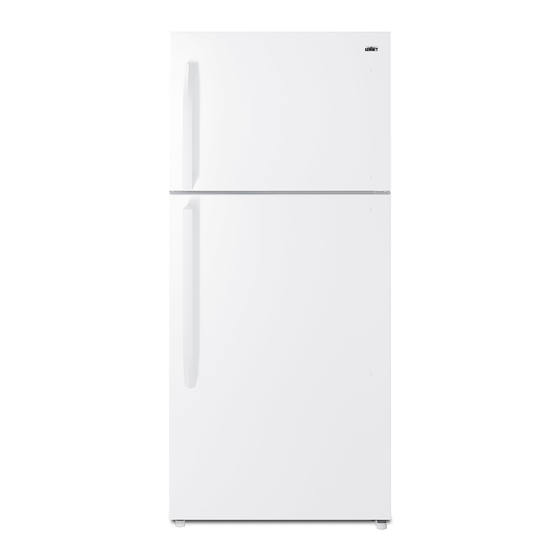

REFRIGERATOR - FREEZER
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Write Serial Number (on lower left corner of
inside cabinet) here:
Serial No.:
Models:
CTR21W
CTR21PL
User Manual
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY
www.summitappliance.com
Advertisement
Related Manuals for Summit CTR21W
Summary of Contents for Summit CTR21W
- Page 1 REFRIGERATOR - FREEZER Models: CTR21W CTR21PL User Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Write Serial Number (on lower left corner of Felix Storch, Inc. inside cabinet) here: An ISO 9001:2015 registered company 770 Garrison Avenue Serial No.:...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS SPECIFICATIONS PRODUCT OVERVIEW PRODUCT INSTALLATION OPERATION INSTRUCTIONS CLEANING AND MAINTENANCE TROUBLESHOOTING WARRANTY CALIFORNIA CARB/SNAP DISCLOSURE This product uses eco-friendly hydrocarbon refrigerant and fully complies with California CARB regulations. However, we are required by California Law to provide the following disclosure statement in every product sold in California. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS INTENDED USE Before switching on the appliance for the first time read the following safety hints: This appliance is intended to be used in households and similar applications such as staff kitchen areas in shops, offices, and other working environments; farmhouses and by clients in hotels, motels, and other residential type environments;... - Page 4 WARNING • DANGER Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost the refrigerator. Do not puncture refrigerant tubing. • DANGER Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. Use only manufacturer-authorized service parts. Any repair equipment used must be designed for flammable refrigerants.
- Page 5 ELECTRICAL SAFETY Incorrect electrical installation or excessive mains voltage can lead to electric shocks! • Only connect your refrigerator-freezer to a properly installed earthed socket if the mains voltage of the socket corresponds to the specification on the rating label. •...
- Page 6 RISK OF INJURY AND DAMAGE! • Never put frozen food in your mouth immediately after taking it out of the freezer. • Avoid prolonged skin contact with frozen food, ice, and the pipes in the freezer compartment. • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Page 7 Before The First Use The packaging must be undamaged. Check the device for transport damage. Do not connect a damaged device under any circumstances. In case of damage, please contact the supplier. Removing the Transport Cover The unit and parts of the interior are protected for transport. You can remove all adhesive tapes on the right and left side of the device door as well as any adhesive residues with cleaning solvent.
- Page 8 NOTES FOR CLEANING Disconnect the appliance from the power supply before cleaning. • Dust behind the product and on the floor must be cleaned to improve the cooling effect and energy saving. • Check the door gasket regularly to make sure there is no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
-
Page 9: Specifications
SPECIFICATIONS CTR21W, CTR21PL 14.65 ft³ Frozen Food Storage Volume 5.82 ft³ 115V~/ 60Hz... -
Page 10: Product Overview
PRODUCT OVERVIEW Location of Parts Freezer glass shelf Freezer door tray Display and control panel Storage box Refrigerator shelf Refrigerating door tray Fruits and vegetables box ATTENTION The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor. -
Page 11: Product Installation
PRODUCT INSTALLATION Installation Instruction Effective Temperature Range • The product is designed to operate normally in the temperature ranges specified below: Operating Temperature Ranges Sections Fahrenheit (°F) Celsius (°C) Ambient 50-110 10-43 Freezer 7-(-11) -14-(-24) Refrigerator 34-50 1-10 Finding a suitable location •... - Page 12 CAUTION The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet. Start to use •...
- Page 13 Reversing The Door Swing Based on the location where you plan to use your refrigerator, you may find it more convenient to reverse the position of the door. CAUTION CAUTION: To avoid injury to yourself or your property, we recommend that someone assist you during the door reversal process.
- Page 14 Step 1. Unplug your refrigerator and remove all food from the door shelves. 2. Remove the cover plate and the top hinge cover, then unscrew and remove the top hinge. Keep the screws to reuse. 3. When the user removes the top hinge cover, note that the hinge cover cannot be directly removed, there is a sensor wiring harness connected to the box on the inside side of the hinge cover, it needs to be slowly dismantled, and then take out the sensor wiring harness from the inside side of the hinge cover, and attach the cover on finally.
- Page 15 hole in the 8. Unscrew the hinge pin from the bottom hinge and reattach it to the other hinge pin, then secure the bottom hinge to the opposite side of the refrigerator using the screws you removed previously. Remove the hole caps and plastic bushings from the top of the freezer and refrigerator doors.
- Page 16 Attach the refrigerator door to the bottom hinge, then attach the center hinge to the refrigerator. Use the center hinge from the hinge kit (not the piece removed in step 4). Put the freezer door onto the center hinge, then attach the top hinge (from the hinge kit) to the top of the refrigerator.
- Page 17 Leveling Feet To avoid vibration, the unit must be leveled. If required, adjust the leveling screws to compensate for the uneven floor The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws counterclockwise to raise the unit, clockwise to lower it.
- Page 18 Tips For Energy Saving • Do not place the appliance near cookers, radiators, or other heat sources. If the ambient temperature is high, the compressor will run more frequently and for longer, resulting in increased energy consumption. • Ensure that there is sufficient ventilation at the base of the appliance, on the sides of the appliance, and at the back of the appliance.
-
Page 19: Operation Instructions
OPERATION INSTRUCTIONS Control Panel Display panel on the top Alarm/power off/power on button Freezer temperature set Refrigerator temperature set Display The initial powering up will take 3 seconds. The display will resume normal operation once the boot bell rings. (The refrigerator and freezer will be at a mid-range temperature at the time of initial power-up) Normally the display will indicate the unit’s set temperature range. - Page 20 Operating Instructions Refrigerator settings • Press the refrigeration key to adjust the refrigerator’s set temperature range, each press of the refrigeration key increases the range by one, the order is as follows: 46°F/8 39°F/4 36°F/2 Freezer settings • Press the refrigeration key to adjust the freezer’s set temperature, each press of the refrigeration key increases the range by one, the order is as follows: 3°F/-16 -2°F/-19...
- Page 21 Error indication • The following warnings appearing on the display indicate the corresponding malfunction of the refrigerator. Though the refrigerator may still have refrigerator and freezing function with the following errors, the user shall contact a maintenance specialist for maintenance, so as to ensure the normal use of the refrigerator. Error Code Error Description Refrigerator temperature sensor error...
- Page 22 Tips on storing food Freezer compartment The freezer is designated for the storage of food frozen at very low temperature, • long-term storage of frozen food, and for the production of ice. Only use the shelves in the door of the freezer to store frozen food, not for storing •...
-
Page 23: Cleaning And Maintenance
CLEANING AND MAINTENANCE Defrosting • The refrigerator is made based on the air-cooling principle and thus has an automatic defrosting function. Frost is formed due to a change in season or temperature, it can be manually removed by disconnecting the appliance from the power supply or by wiping it with a dry towel. - Page 24 Maintenance Power failure: In case of power failure, even if in summer, the food inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance. Long-time nonuse: The appliance shall be unplugged and then cleaned;...
-
Page 25: Troubleshooting
TROUBLESHOOTING The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved. PROBLEM POSSIBLE CAUSE • Check whether the appliance is connected to power or whether the plug is in good contact Failed operation •... - Page 26 Problem Possible reason • Remove any debris or obstruction from the door seal The door seal is not tight • Heat the door seal and then cool it for restoration (Blow on it with an electric hair drier or use a hot towel for heating) •...
- Page 27 NOTES...
-
Page 28: Warranty
LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory- specified parts and repair labor to correct defects in materials or workmanship.
