Product overview

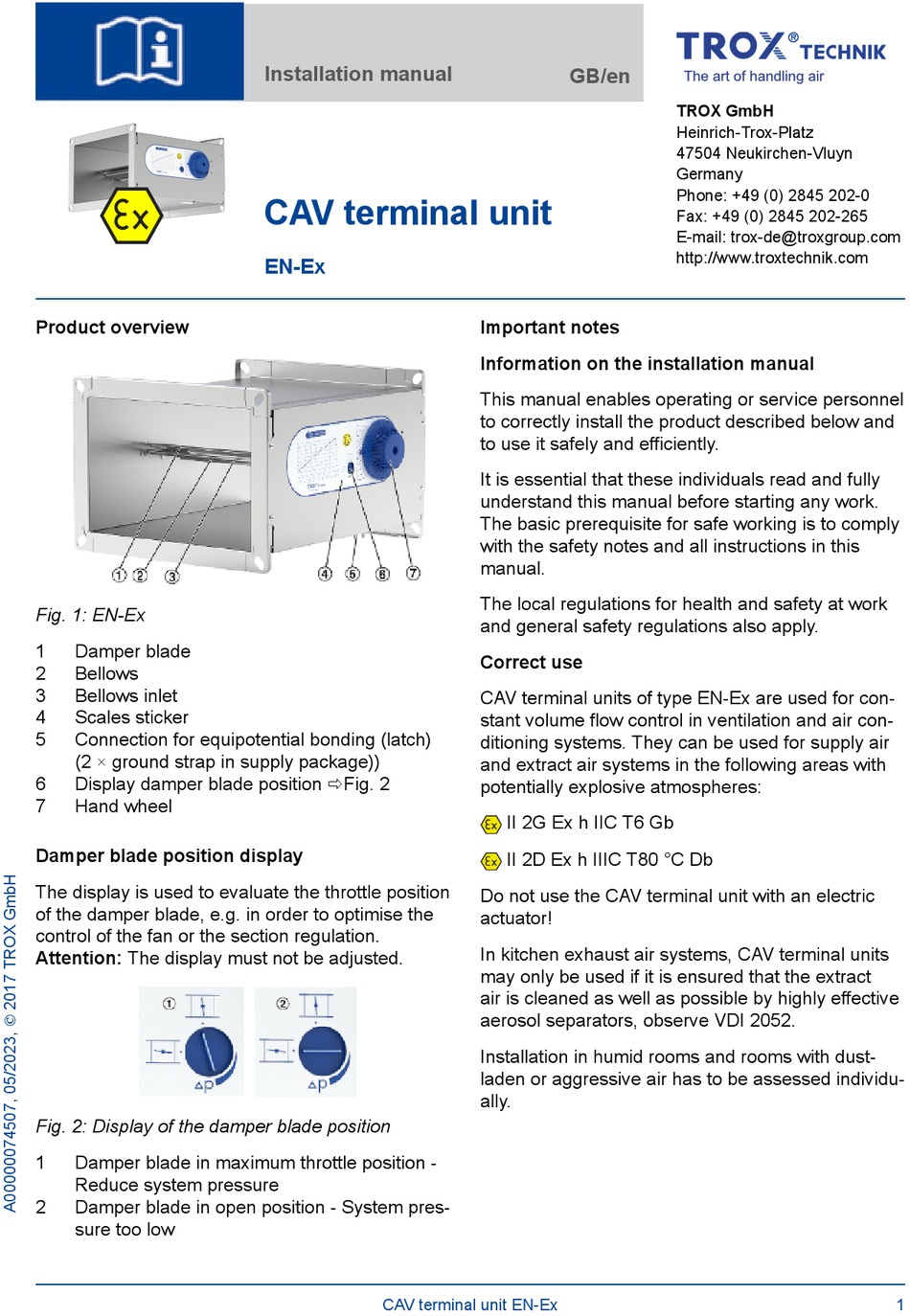

Fig. 1: EN-Ex
1
Damper blade
2
Bellows
3
Bellows inlet
4
Scales sticker
5
Connection for equipotential bonding (latch)
(2 × ground strap in supply package))
6
Display damper blade position ðFig. 2
7
Hand wheel
Damper blade position display
The display is used to evaluate the throttle position
of the damper blade, e.g. in order to optimise the
control of the fan or the section regulation.
Attention: The display must not be adjusted.
Fig. 2: Display of the damper blade position
1
Damper blade in maximum throttle position -
Reduce system pressure
2
Damper blade in open position - System pres-
sure too low
Installation manual
CAV terminal unit
EN-Ex
CAV terminal unit EN-Ex
GB/en
Important notes
Information on the installation manual
This manual enables operating or service personnel
to correctly install the product described below and
to use it safely and efficiently.
It is essential that these individuals read and fully
understand this manual before starting any work.
The basic prerequisite for safe working is to comply
with the safety notes and all instructions in this
manual.
The local regulations for health and safety at work
and general safety regulations also apply.
Correct use
CAV terminal units of type EN-Ex are used for con-
stant volume flow control in ventilation and air con-
ditioning systems. They can be used for supply air
and extract air systems in the following areas with
potentially explosive atmospheres:
II 2G Ex h IIC T6 Gb
II 2D Ex h IIIC T80 °C Db
Do not use the CAV terminal unit with an electric
actuator!
In kitchen exhaust air systems, CAV terminal units
may only be used if it is ensured that the extract
air is cleaned as well as possible by highly effective
aerosol separators, observe VDI 2052.
Installation in humid rooms and rooms with dust-
laden or aggressive air has to be assessed individu-
ally.
TROX GmbH
Heinrich-Trox-Platz
47504 Neukirchen-Vluyn
Germany
Phone: +49 (0) 2845 202-0
Fax: +49 (0) 2845 202-265
E-mail: trox-de@troxgroup.com
http://www.troxtechnik.com
