First things first
General purpose use only
M2004 Calibrator
DANGER
!
MST Sensors
These are not intended for hazardous locations.
Steps to get started
Make a connection
▪ Attach the pressure fittings to the internal
pressure sensor module.
▫ The threads should be coated with a pipe
sealant compound before installation.
▫ Tighten to finger tight plus 1.5 turns to 3
turns using a 19 mm (3/4 in.) wrench on the
manifold.
Use only a wrench on the fitting
NOTICE
and the manifold.
▪ Optional: Attach the pressure fittings to the
external pressure sensor module.
▪ Optional: Attach the RTD cable and probe to an
RTD module.
Carefully equalize the pressure
To avoid damaging differential sensors:
1. Make sure you are connecting to the correct
pressure port on DN or DI differential pressure
modules.
1. P1 port is high pressure.
2. P2 port is low pressure.
2. Apply pressure to both differential ports (P1 and
P2) at the same time.
9R711-IR
Know your batteries
The calibrator is powered by four 1.5 volt AA size
batteries.
mix batteries—not by manufacturer or by
▪ Never
size, by capacity, or by chemistry.
mix old and new batteries.
▪ Never
▪ Remove all four batteries in the calibrator at the
same time.
▪ Replace all four batteries with batteries from the
same package or with the same expiration date.
Install the batteries
1. Turn over the calibrator so the display faces
down.
2. Remove the two screws on the battery cover
with the Phillips head screwdriver by turning
them counterclockwise.
3. Insert four AA batteries.
Pay attention to the positive (+) and
Note:
negative (−) battery polarity markings at the
bottom of the compartment.
4. Replace the battery cover. To secure the cover,
torque the screws clockwise 2 in. lbs. maximum.
M2004 Calibrator & Sensors

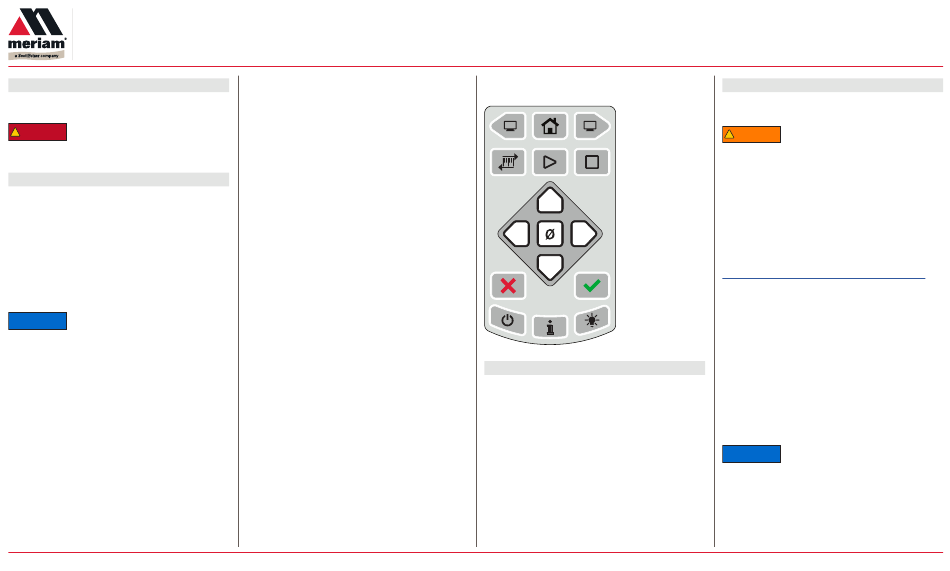

Learn the function keys
Meriam Tethered Sensors (MTS)
Optional Meriam Tethered Sensors
Pressure (Absolute, Compound, Differential).
▪
▪ Temperature (RTD PT100).
Make an electrical connection
▪ Align the red dot on the calibrator with the red
dot on the Tether cable and push in.
▪ Align the red dot on the MTS with the red dot
on the Tether cable and push in.
© Meriam 2018
USB cable & meriSuite CG
The keys from
left to right
For use only in non-hazardous locations
1. Backward
2. Home
WARNING
!
3. Forward
4. Units Connect the USB cable to the calibrator and to your
5. Start computer to configure the calibrator and sensors
6. Stop using the meriSuite CG application.
7. Up arrow
Install USB Drivers & meriSuite CG
8. Left arrow
9. Zero or Tare You must install USB Drivers first then install the
10. Right arrow meriSuite CG application.
11. Down arrow
12. Cancel or Esc For installation instructions:
×
or https://www.meriam.com/resources/download/
13. Accept or ✓
Open meriSuite CG
14. Power
15. Information Use meriSuite CG application to:
16. Backlight
▪ Sync PC Time to Gauge
display.
Select or deselect the Display functions on
▪
each calibrator or Measurement Units that you
need on each sensor.
▪ Select the timeout for the Backlight and for the
Auto Off.
Close meriSuite CG
NOTICE
▪ Do not turn off the power on the calibrator
while it is communicating with meriSuite CG.
Close meriSuite CG first, disconnect the USB,
▪
and turn off the calibrator.
Quick Start Guide
for data logging and
