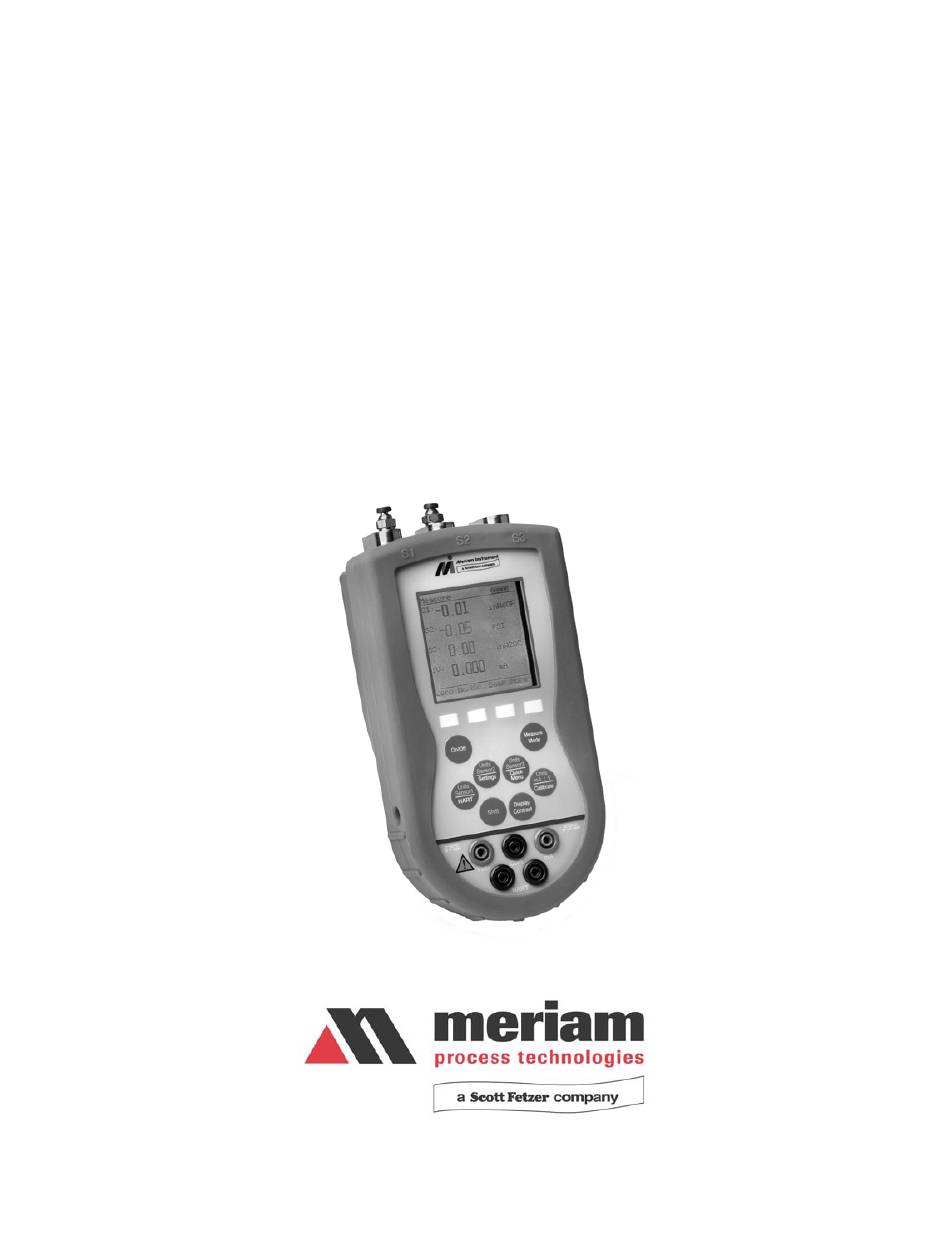

File No. 4000:440-5
August 2003
MFT 4000 Calibrator
®
MFT 4010 Calibrator with HART
MFT 4020 Calibrator w/Loop Power Supply
OPERATOR
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the meriam MFT 4000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Scott Fetzer meriam MFT 4000 Series

Summary of Contents for Scott Fetzer meriam MFT 4000 Series

  • Page 1 File No. 4000:440-5 August 2003 MFT 4000 Calibrator ® MFT 4010 Calibrator with HART MFT 4020 Calibrator w/Loop Power Supply OPERATOR INSTRUCTION MANUAL...
  • Page 2 MFT 4000 S ERIES PERATOR NSTRUCTION ANUAL Models MFT 400X Modular Calibrator ® MFT 401X Modular Calibrator / HART Communicator MFT 402X Modular Calibrator / Loop Supply MPORTANT OTICE Important information on the product is contained in this manual. Read this manual carefully and completely before operation the product.

  • Page 3: Table Of Contents

    MFT 4000/4010/4020 OPERATING INSTRUCTIONS TABLE OF CONTENTS Subject Page MFT 4000 Overview..........................1 Keypad Overview ............................1 Single Function Keys..........................1 Dual Function Keys ..........................2 Soft Keys............................... 3 Alphanumeric Data Entry ........................3 Measure Mode ............................5 Header-line Symbols..........................5 Display Screen ............................
  • Page 4 TABLE OF CONTENTS Subject Page ® MFT 4010 with HART Communications ....................21 HART Commands ..........................22 HART Connections..........................22 HART Communications ........................23 Communications Trouble Shooting .....................23 Multidrop Polling.........................24 HART Offline Mode..........................24 List/Show DOFs...........................24 List/Edit Configs .........................24 Create Configs ..........................25 Delete Configs / Clearing Config Memory .................25 HART Online Mode ..........................26 Device Configuration..........................27 Pressure Trim ............................32...
  • Page 5 Documenting Calibration Results ......................58 Entering Calibration Documentation Mode ..................59 Manual Procedure Calibrations and Documentation ................60 Stored Procedure Calibrations and Documentation ................62 Stored Procedure Status Indicators .......................65 Deleting Files and Clearing Calibration Memory.................66 Documenting HART Configurations ......................67 Returning the MFT for Repairs.........................67 APPENDIX MFT Specifications ..........................68 MFT Models, Options, Ordering Information ..................69...

  • Page 6: Mft 4000 Overview

    MFT 4000 SERIES OVERVIEW The MFT 4000 Multi-Function Tester (MFT) is a modular calibrator with three sensor bays accommodating up to three independent pressure, temperature or special function modules. The base MFT incorporates a voltage and current meter, several keys for user interface and will display up to four measurements simultaneously.

  • Page 7: Dual Function Keys

    Measure Mode Pressing the Measure Mode button will instantly return the unit to measure mode from any menu or sub-menu. Measure will appear on the upper left of the display. Display Contrast This key allows the user to adjust the contrast of the LCD display for user conditions or preferences. Pressing and holding this key will cycle through all available contrast settings.

  • Page 8: Soft Keys

    Units mA / V Toggles between voltage, current (mA), and off display for the integral voltage and current meter. This measurement is designated by “V/I” on the display. Calibrate Active only with MFT 4010 This key enters the MFT into calibration mode for HART device calibrations. Soft Keys SOFT KEYS (unlabled) The four white keys located below the display are soft keys.
  • Page 9 When using any character grid, pressing Row or Col and releasing the respective soft key moves the flashing cursor one character across or down the gird. Pressing and holding the Row or Col key causes the cursor to advance down or across, respectively, at a regular rate. Releasing the key when the cursor is under the desired character stops the cursor movement and allows the selection of the character using the Select key.

  • Page 10: Measure Mode

    MEASURE MODE After the MFT performs its power up diagnostics and displays the model number and sensor data, it defaults to the Measure Mode. The word Measure appears on the upper left of the display, confirming this mode is active. The soft key definitions in this mode are directed toward measurement and information functions. Header-line Symbol Key (see location at right) Hart heart symbol indicates active HART communication...

  • Page 11: Zero

    Zero Mn/Max Damp More Zero Pressing the soft key corresponding to Zero will zero the installed sensor modules and integral mA/Volts meter. The LCD will display “Zero in Progress” as this function is carried out. The sensors should be zeroed prior to making measurements to provide an accurate zero reference. Make sure that no physical signal is applied to the MFT when performing this function.

  • Page 12: Rcal

    Rcal Pressing the Rcal key enters the MFT into the Field Recalibration mode. This allows the unit’s sensors and modules to be recalibrated in the field to maintain optimal accuracy. See section on Field Recalibration for details. SETTINGS Press the Settings key to set the preferences on the MFT for lockout options, damp rates, auto shutoff time, or clock edit.

  • Page 13: Lockout Code

    To enable the lockout option, select Enabled by scrolling Down and press Select. The screen will switch back to the original Settings screen that now shows the lockout status as Enabled. Select Lockout again, scroll Down to View Details, and press Select. This screen allows the user to choose which parameters to lockout.

  • Page 14: Off Timer

    The damp rate can be set between 0.5 and 30 seconds. Once set, the damp rate feature can be activated or deactivated from the Measure Mode by pressing the Damp soft key. Factory default for the damp rate is 0.5 seconds.

  • Page 15: General Operation

    GENERAL OPERATION Sensor Installation/Removal To install a new sensor module into a sensor bay, make sure the spring-loaded sensor lock is facing toward the rear of the MFT. Depress the sensor lock until the base of the sensor module passes into the sensor bay. Push module into bay until it locks into place.

  • Page 16: Sensor Module Engineering Units

    Sensor Module Engineering Units Pressure Temperature º Fahrenheit Inches of Water @ 20° Celsius º Celsius Inches of Water @ 60º Fahrenheit º Rankin Inches of Water @ 4º Celsius º Kelvin KiloPascals Ohms Kilograms/cm milli-Volts MilliBars Bars Centimeters of Water @ 20º Celsius Inches of Mercury (Referenced @ 0º...

  • Page 17: Media Compatibility - Pressure Modules

    of the sensor’s full scale range, the affected pressure measurement is replaced by an “Overrange” warning. If this occurs, immediately release the pressure until the MFT displays a normal reading. Although pressures are displayed up to 20% over full scale range, specified accuracy is guaranteed for full scale range only. xGI (Gauge Isolated) and xAI (Absolute Isolated) Modules are capable of withstanding up to 2x the sensor range without sustaining damage.

  • Page 18: Differential Pressure Calibration

    source is recommended to ensure the accuracy of your measurements and calibration. Differential Pressure Calibration Differential pressure gauges and transmitters can be calibrated using xDN or xGI sensor modules. The following drawing depicts a typical calibration set-up. The units under test should be isolated from the process and drained of liquids if necessary.

  • Page 19: Additional Dp Application Information

    Additional DP Application Information In addition to reading gauge pressures, the MFT can also be used to measure the pressure drop across a device in a pressurized pipe. Examples include measuring the differential pressure across positive displacement meters, filters, orifice plates or valves. Process compatibility and pressure ranges of the sensor modules need to be considered for each application.

  • Page 20: Electrical Connections

    ELECTRICAL CONNECTIONS – See Hazardous Area Use Section of this manual for Intrinsically Safe guidelines / restrictions MILLIAMP TRANSMITTER The diagram below depicts the proper connection for measuring the current output from a transmitter. The MFT is connected in series with the loop using standard banana jacks. Important: Use the transmitter’s working terminals to measure mA, not the TEST terminals found on some transmitters.

  • Page 21: Voltage Transducers

    VOLTAGE TRANSDUCER The following diagram depicts the correct set-up for transducer calibrations. FIELD RECALIBRATION The sensor modules and mA/V meter can be recalibrated in the field for zero, span, and linearity. The proper primary standards must be available prior to calibrating the MFT or modules. These standards should meet the accuracy requirements for your company or industry.
  • Page 22 and temperature reference. Other engineering units or reference temperatures may be used but great care in units and temperature reference conversion must be used to achieve accurate calibration results. Points: This option allows the user to select the number of calibration points desired. The example above would use 3 calibration points;...
  • Page 23 Make sure your pressure source and calibration standard are properly connected to the sensor module under test. Connections must be leak free. The first recalibration target pressure is normally zero, so the first point should have all zeros. (As shown in example above—See section Adj for other options). Adjust the pressure source until the pressure you are applying matches the Apply pressure &...

  • Page 24: Db-9 Connection Port

    Back: In this mode, Back aborts the calibration procedure and returns the user to the recalibration set-up screen. The previous calibration data is retained. It does not return the user to the previous screen in the calibration procedure. DB-9 CONNECTION PORT All MFT models are equipped with a standard DB-9 connection for RS-232C communications.
  • Page 25 Intrinsically Safe Certification Label Intrinsically Safe MFTs have special battery door hardware to prevent the accidental ejection of batteries. This hardware consists of threaded inserts in the MFT case plus a bracket and captive thumbscrews on the battery door. See the Installation and Removal of Batteries section of this manual for more details. WARNING: Serious injury or death may result from explosions.

  • Page 26: Mft 4000 Series - Model Specific Features

    MFT 4000 SERIES MODEL SPECIFIC FEATURES: MFT 4000, MFT 4010, MFT 4020 Previous sections of this manual have covered specifications and instructions that are common to all models of the MFT. The following sections address model specific instructions. ELECTRICAL CONNECTIONS by MFT Model MFT 4000 Calibrator Electrical connections are shrouded standard banana jacks (3/4”...

  • Page 27: Hart Commands

    HART Commands Three HART command types are used by the MFT 4010 to communicate with HART field devices. First, Universal Commands are primarily used to identify a field device by its model number and tag number and to read process data from the device. This communication is often referred to as “polling”. The MFT 4010 can poll any Hart Device.

  • Page 28: Hart Communications

    When connecting the MFT 4010 to a loop with a resistive load greater than 250 ohms, the HART jacks may be connected across the loop + and – or to the HART device terminals. Refer to the following diagram for connecting across the loop + and -. Notice the 250 ohm adapter is not needed here.

  • Page 29: Multidrop Polling

    Multidrop Polling When multidrop polling is selected the MFT will search for the remaining 15 address locations. Each address poll requires up to 4 seconds to complete. If you wish to discontinue the multidrop polling process, press either the Stop or Abort soft key options and the MFT will enter the Hart Offline screen.

  • Page 30: Create Configs

    Entries in this list may have been saved directly from a connected HART device, created in the MFT using the Create Configs function, Offline copied from another configuration and renamed, or created by editing List/Edit Configs PT-105A an existing file. MFT with Documentation option (MFT 4011, MFT 4013) Device ID 6121486 will also list configurations downloaded from the separately available Endress + Hauser...

  • Page 31: Hart Online Mode

    HART ONLINE MODE Once a HART device is located, the MFT enters the Hart Device Online Screen as shown below. The word “Hart” appears in the top left of LCD. The symbol will “flash” when HART communications have been established. Note: The screen below illustrates a Rosemount 1151 rev.

  • Page 32: Device Configuration

    Device Configuration From the HART Device Online Screen move the cursor to Device Config and press the Select soft key. The menu screen below allows the user to select a number of tasks. These include changing editable parameters, re-ranging the device, calibration, and device diagnostics. Hart 1151: Pump 8 Process Variables...
  • Page 33 Move cursor to Rerange and press the Select soft key. The following screen will appear showing the current values for LRV, URV, LSL, and USL: Hart 1151: Pump 8 LRV: 0.00 InH20 URV: 150.00 InH20 Set 4mA Range Set 20mA Range LSL: -150.00 InH20 USL: 150.00 InH20 Down...
  • Page 34 URV: Upper Range Value. Allows the user to adjust the upper pressure range that the HART device will measure. Typically, this value corresponds to the 20 mA output. The values entered must be within the span limits of the device. Move the cursor to URV and press the Select soft key.
  • Page 35 Press the Back soft key to return to the Sensor main menu screen. Pressing Back again will return the MFT to the Device Config screen. Set 20mA Range: This option allows the user to configure the pressure value at which the HART device will read 20 mA.
  • Page 36 Signal Conditioning Signal Conditioning allows the MFT to configure how the HART device will process the sensor data. This includes pressure units, damping values, alarm settings, and transfer functions. Move the cursor to Signal Conditioning and press the Select soft key. The following screen will appear: Hart 1151: Pump 8...

  • Page 37: Pressure Trim

    The underscore will prompt the user for changes ( _ ). Use the Inc / Dec soft keys to change the value and the Next soft key to move to the next digit. When complete, press Done. A prompt will appear: Save new data? Pressing No will return the MFT to the Signal Conditioning main screen without making any changes.
  • Page 38 The MFT will prompt: Apply zero to Sensor. Make sure that the HART device has no pressure applied. Press the OK soft key to continue. The MFT will then prompt the user: Wait until stable. All pressure must be vented, and the display stabilized, before accepting a zero pressure value. Press the OK soft key to continue.
  • Page 39 Use the Up or Down soft key to move the selection arrow to Upper Trim, then press the Select soft key. The screen will prompt: Take Loop offline. This notice reminds the user that the device output will not be a measurement of the actual process, and to place the receiving device or control system (such as a chart recorder, PLC, or DCS) in manual mode.

  • Page 40: Analog Trim

    Analog Trim The Analog Trim option allows the user to trim the analog output of the connected HART device. To enter the Analog Trim option, use the Up or Down soft key to move the selection arrow to Analog Trim, then press the Select soft key.
  • Page 41 prompt will appear: Save new data? Press the Yes soft key to accept the changes and implement the 4 mA trim. Pressing No will take you back to the Analog Trim main menu screen without saving changes. Press the Back soft key. The MFT will prompt: Put Loop back online. This is to remind the user to return the HART device back into service.

  • Page 42: Loop Test

    LOOP TEST Loop Test: This option allows the user to send HART commands to the device under test to “fix” its analog output to any desired value between 4 and 20 mA, regardless of process variable value. This test is useful in determining the ability of a loop to deliver accurate analog signals by providing a specific current output to a receiving device.

  • Page 43: Scaleable D/A Trim

    Press the Back soft key to exit this screen. The screen will display the prompt: Put Loop back online. This notice reminds the user to return the device to service. Press the OK soft key to continue. Press the Back soft key to return to the Analog Trim main menu screen. Pressing Back from the Analog Trim screen will return the MFT to the Device Config screen.
  • Page 44 send the AO fixed command for device output of 4 mA . The next display asks the user to “Enter meter value” as read from the multimeter display. Use the Numeric Grid and soft keys to enter this value. Press Done when finished and the following screen is displayed.

  • Page 45: Basic Info

    Basic Info This function provides basic but valuable HART device information to the user. Use the Up or Down soft key to move the selection arrow until it points to Basic Info, then press the Select soft key. The following screen will appear: Hart 1151: Pump 8 Date...

  • Page 46: Hart Output

    Private Label: Provides the device manufacturer’s name. This option is non-editable. Revisions: After selecting Revisions the screen will change and provide a menu of HART related items. Press Select to choose the item of interest. Hart 1151: Pump 8 Hart Revision Device Revision Software Revision Final Assembly Number...
  • Page 47 Polling Address: This option allows the user to configure the address of the HART device. See the HART Communications section for more details on HART device addresses. Move the cursor to Polling Address and press the Select soft key. The screen will display the current Polling address. Press the Edit soft key to change the current value, or press Back to return to the Hart Output main menu.

  • Page 48: Diagnostics

    Burst Com Number: This register is used to select the information that will be continuously broadcast. The selection will differ from device to device. To enter the Burst Com Number option, use the Up or Down soft key to move the selection arrow to Burst Com Number, then press the Select soft key.

  • Page 49: Review/Edit

    Press the Next soft key to scroll through diagnostic results and finally return to the Diagnostics main menu. The Back soft key will return to the previous screen at any point in the diagnostics review. Loop Test: Refer to Loop Test under Analog Trim section for more information. When using the Loop Test here, pressing the Back and OK soft keys will return the MFT to the Diagnostics main menu screen.

  • Page 50: Calibrate Key

    Rerange Menu: Refer to Rerange section for more information. Diagnostic Menu: Refer to Diagnostic section for more information. Basic Info: Provides quick access to basic information about the connected HART device, including tag number, manufacturer and software information. Construction Matls: Provides quick access to construction material information for the connected HART device Sensor Menu: Refer to Sensors section for further information.
  • Page 51 The screen will change, giving the user the option to select No if a calibration procedure is to be performed on a non-Hart device, or Yes, if the HART calibration features are desired. Use the Up or Down soft key to scroll to the desired option and press Save to make the change. Press the Back soft key if you choose not to make any changes.

  • Page 52: Quick Cal

    Press the Back soft key if you choose not to make any changes. The MFT will then return to the Calibrate key main menu screen. Quick Cal: The Quick Cal feature for MFT 401x models displays the PV and AO from the HART signal along with the corresponding values measured by the MFTs NIST traceable standards.

  • Page 53: Smart Trim

    Smart Trim: The MFT 401x multi-function calibrator / HART communicator provides all measurement and communication features needed to trim / calibrate HART transmitters. No other handheld device is needed. Smart Trim enables this by providing direct access to the five common HART trim commands from one MFT screen.

  • Page 54: Ma Analog Trim

    20 mA Analog Trim: MFT 401x executes 20 mA trim on HART device To perform the 4mA Trim, make sure the selection arrow points to 20 mA Analog Trim and press Select. The screen will prompt: Take Loop offline. This notice reminds the user that the device output will not be a measurement of the actual process, and to place the receiving device or control system (such as a chart recorder, PLC, or DCS) in manual mode.

  • Page 55: Lower Sensor Trim

    PV displays the pressure being reported by the HART signal and S1 (or whichever sensor bay location is selected) displays the pressure being measured by the MFT’s NIST traceable module. When the S1 reads zero pressure, press the Select soft key. The sensor will automatically be trimmed, and the screen will display the prompt: Put Loop back online.

  • Page 56: View Results

    chart recorder, PLC, or DCS) in manual mode. Press the OK soft key to continue (or press the Abort soft key to return to the Hart Smart Trim Screen). The MFT will now prompt: Apply High Pressure. Press the OK soft key to continue. The MFT will then prompt the user: Wait until stable.

  • Page 57: Clear Cal Memory

    Move the selection arrow to the tag number desired and press the Select soft key. Point one of the saved calibration is displayed as shown below. Results: PT-307 Single variable As found Point 1 of 6 In: 0.090 inW20C Out: 3.999 mA Error: -0.096 % Pass Done...

  • Page 58: Mft 4010 Device Specific & Generic Hart Comm

    ® MFT 401x Device Specific & Generic HART Communications Meriam supports a growing number of Device Specific DOFs (Device Object Files). For a current listing of ® HART devices with full Device Specific MFT communications support, go to www.meriam.com and click on the “Available DOFs”...

  • Page 59: Who May Use

    Who may use the Download Site? All MFT purchasers have unlimited access to the Download Site for six months from date of shipment. These customers may download any published file from the site to their MFT upon entry of the proper authenticating codes.

  • Page 60: Subscriber Options

    First time visitors to the Download Site will need to download the MFx Installer Utility to the host PC. MFx Installer can be found at the bottom of the File Download Area page. MFx Installer coordinates the download operations from the host PC to the MFx. Periodic improvements may be incorporated into this Utility.

  • Page 61: Mft 4020 Loop Power Model

    MFT 402x with Loop Power The MFT 402x is designed to simultaneously power a field device and display the applied calibration parameters and mA/volts output from the field device. Measure Mode and programming operations are exactly the same as the MFT 400x, however, the MFT 402x is also equipped with an internal 24Vdc power supply.

  • Page 62: Connecting The Mft 4020 For Loop Power And 4-20Ma Meas

    To supply 24 Vdc to a field device, connect to the device as shown in the diagram. Observe loop polarity using the color coded standard banana jacks on the MFT. Red is positive (+) and Black is negative (-). Refer to previous sections in this manual for general MFT measurement and calibration information.

  • Page 63: Documenting Calibration Results

    DOCUMENTING CALIBRATION RESULTS / HART CONFIGURATIONS The MFT 40x1 or MFT 40x3 multi-function calibrators include documentation capability. The Documentation option enables the MFT to store calibration procedures for use with specific field devices, save As found and As left results of a stored calibration procedure, save the results of manual calibrations, view saved calibration results and upload saved results to Meriam’s Device Management System (DMS).

  • Page 64: Entering Calibration Documentation Mode

    Entering Calibration Documentation Mode Press the Calibrate key to setup the MFT to calibrate HART or conventional devices. The following screen will appear (see the Calibrate Key section in this manual for more details): Cal: Pump 8 Begin Calibration Hart: Procedure: Manual Sensor : S1...

  • Page 65: Manual Procedure Calibrations And Documentation

    Manual Procedure Calibrations and Documentation To start a Manual Procedure Calibration, press the MFTs Calibrate key, set up the MFT for Manual Procedure using the Procedure, HART, and Sensor menu options described above, and then Select the Begin Calibration option. The following screen will appear: Cal: DEFAULT Begin Calibration Cal Type: Pressure...
  • Page 66 Apply the next desired input signal and press the Save soft key when satisfied with the input signal. Repeat as needed to complete the calibration. Press the Done soft key to end the As found portion of the calibration. The following display will appear: As Fnd: DPT-1003 As Fnd: DPT-1003 Save As Fnd to AsLft...

  • Page 67: Stored Procedure Calibrations And Documentation

    To view previously stored calibration results, select the View Results menu option under the MFTs Calibrate key. See the Calibrate Key section of this manual for more information. Stored Procedure Calibrations and Documentation The Stored procedure option is only available when the MFT is used in conjunction with Meriam DMS software or other compatible FCINTF software programs.
  • Page 68 Once a tag number match is confirmed, or the user directs the MFT to use the mismatched procedure, the following screen will appear. Cal: DPT1003 Single Var Device Cal Type: Pressure Device SN: 649201 LRV: 0.000 inW20C URV: 200.00 inW20C Xfer Fn: Linear Cal Points: 5 Max Err: 0.25%...
  • Page 69 Apply the next input signal indicated by the Apply value and press the Save soft key when satisfied. Repeat as needed to complete the calibration. Press the Done soft key to end the As found portion of the calibration. The following display will appear: As Fnd: DPT-1003 FAIL Save As Fnd to AsLft...

  • Page 70: Stored Procedure Status Indicators

    Pass / Fail notice – Provides user with notification of the Pass / Fail status of the As left calibration documentation. Enter Cal Note – User may enter a calibration note into MFT memory for the procedure just completed; uses the MFTs alphanumeric entry features. Smart Trim –...

  • Page 71: Deleting Files And Clearing Calibration Memory

    <Blank> – blank space indicates no work done on stored procedure – Partially complete procedure with As found data saved (see below) – Complete procedure was performed and saved – Manual calibration procedure was performed and saved A Partial procedure is saved if all As found test points were saved before the procedure was interrupted. Trim operations may or may not have be completed before interruption.

  • Page 72: Documenting Hart Configurations

    DOCUMENTING HART CONFIGURATIONS All MFT 401x models are able to save and send HART device configuration files. The MFT 4011 and MFT 4013 with Documentation option are also able to uploading saved configurations to the Meriam DMS software. The information joins the corresponding tag number history once DMS receives the data. Within DMS users can review configuration data, compare the most recent configuration to past configurations, and revise configurations for subsequent download to the intended device.

  • Page 73: Appendix Mft Specifications

    APPENDIX PRODUCT SPECIFICATIONS OVERVIEW BASE UNIT: 9" L x 4.7" W x 3.2"D ABS plastic case with shock absorbing boot, 28 ozs. Three bays for measurement modules DISPLAY: 128 x 128 pixel graphic display, 2.6” x 2.6” viewable area, 5-digit resolution POWER: 6 AA alkaline batteries (1.5 V), 6 AA NiMH batteries (1.2 V) or optional 100 –...

  • Page 74: Mft Models, Options, Ordering Information

    ELECTRICAL MEASUREMENTS Current: ± 50.00 mA ± 0.025% FS Voltage: ± 50.00 VDC ± 0.025% FS MODULES: 2.3”L x 1.3”W x 2.6”D, 8.3 ozs. Positive-lock with spring-loaded sensor lock. Depress lock to release. MIN/MAX - minimum and maximum measured values are captured. Capture speed equal to current damping rate setting.

  • Page 75: Sensor Modules List

    SENSOR MODULES Module Pressure range / type FDN0010 0-10” O Differential FDN0020 0-20” O Differential xDN0100 0-100” H O Differential xDN0200 0-200” H O Differential xDN0400 0-400” H O Differential xDN2000 0-2000” H O Differential xGI0020 0-20 PSI Gauge xGI0200 0-200 PSI Gauge xGI0500 0-500 PSI Gauge...
  • Page 76 P/N A900028-90201 Class A, 100Ω platinum RTD probe, ¼” OD, 10” length, 304SS sheath, 5 foot coiled cable with connector for use with RTD1000 RTD measurement module P/N A900028-90202, 1000Ω platinum RTD probe, ¼” OD, 10” length, 304SS sheath, 5 foot coiled cable with connector for use with RTD1000 RTD measurement module P/N A36749 Soft carrying case with shoulder strap for base unit, modules, pump and test leads †...

  • Page 77: Rtd1000 Rtd Measurement Module Instruction

    Intrinsic Safety Control Document in the appendix. RTD Temperature Measurement Module The RTD1000 is an RTD measurement module for use with the Meriam MFT 4000 Series multi-function tester. The module is used to accurately measure the resistance from any of 22 different RTD sensor types with nominal resistance up to 1000 ohms.
  • Page 78 Platinum 0.00385 Platinum 1000 0.00375 1210 Platinum 0.00393 68.1 -200 to +962° C Platinum 0.00393 82.5 -200 to +630° C Platinum 98.129 0.00392 21.5 Platinum 0.00392 Copper 9.035 0.00427 12.1 Copper 0.00427 Nickel 0.00618 31.6 Nickel 0.00672 Iron 0.00518 Iron 908.4 0.00527 Iron...
  • Page 79 Notes on RTD wiring 1. For maximum accuracy use 3-wire or 4-wire configurations with DIN Class A RTDs. 2. When using a 2-wire RTD, keep the lead length between the alligator clips of the general-purpose connector and the RTD element as short as possible. 3.
  • Page 80 Rcal – Field Recalibration The RTD1000 module can be recalibrated / re-certified using appropriate local standards and the MFT’s Rcal feature. Two recalibration methods are available. See the FIELD RECALIBRATION Section of this MFT Operator Instruction Manual for general information on the Rcal feature and initial setup. Once pertinent parameters and options have been entered, move cursor arrow to the Start option on the main Rcal menu and press the Select soft key.
  • Page 81 multipoint calibrations). This method allows adjustments to be made to the Module + Probe calibration by using an external temperature bath, dry block, or a temperature simulation standard. The user can select 1-, 3-, 5- or 9-point calibration options. When calibrating using a temperature bath or dry block, a DIN Class A RTDs should be used for best possible “matched set”...
  • Page 82 When the Error value is within acceptable limits, press the Next soft key. This moves the calibration procedure to the next calibration point. Repeat the procedure outlined above until all points are complete; when the final recalibration point is acceptable, press Next to store the data. After completion of the calibration process for 1, 3, 5, or 9 points, the MFT will inquire if the cal data should be saved.
  • Page 83 Specifications for RTD1000 module Accuracy: 50 ppm + 10 ppm/° C (Ref. Temp. = 22° C) Temperature: Storage: -40° F to 140° F (-40° C to 60° C) Operating: 23° F to 122° F (-5° C to 50° C) Mating Connector: Switchcraft #TA6FL Power: supplied from MFT Units: °F, °C, °R, °K, ohms Weight: 0.20 lbs...

  • Page 84: Tio0110 T/C Measurement Module Instruction

    TIO0110 Module Quick Instructions For Thermocouple and milli-Volt Measurement and Simulation Safety Notice: Intrinsically Safe TIO0110 modules require the MFT 40X2 or 40X3 Intrinsically Safe base MFT units. The TIO module must be installed or removed in a safe area. T/C connectors must be connected to the TIO0110 module in a non-hazardous area.
  • Page 85 key until the TIO module is displayed. Sensor TC Setup Sensor 1 Current Settings: Meriam Instrument TC Type J Model: TIO0110 Standard ITS 90 xxxxxxxxx Resolution 0.1 deg Cal Date: YYYY-MM-DD Simulate Mode User Re-Calibrate Next Setup Down Select Back 1.3 At the TC Setup display the user can select the desired t/c from the TC Type list, select the mV to temperature conversion standard, set the temperature display resolution, select Simulate Mode or enter the User Re-Calibrate Mode.
  • Page 86 2.1 The Start menu begins a TC or mV simulation. When Start is selected with the Select soft key, a numeric entry screen appears to facilitate the entry of the desired simulation temperature value (or mV value). Once the value has been entered, the MFT will use the previously selected conversion standard to determine the corresponding mV value and output that value through the TIO mini-t/c connector.
  • Page 87 Each selection on the TC Setup screen enables a mode to measure and capture calibration data. The values are stored in non-volatile memory in the sensor module. Refer to the MFT TIO0110 Calibration Manual for details of the re-calibration process. TC Setup User Re-Calibration Offsets...
  • Page 88 5.0 Approvals 5.1 Intrinsically Safe by MET Laboratories, Inc per CAN/CSA-C22.2 No. 157, CAN/CSA-C22.2 No. 1010.1-92 & UL 913 Fifth Edition, Rev 2/21/97 for Class I, Division I, Groups A, B, C &D Hazardous Areas. Restrictions apply – see the Intrinsically Safe Control Document in Appendix for more details.

  • Page 89: Vma0055 Voltage And Current Module Instruction

    VMA0055 Module Quick Instructions For mA / V measurement, Xmitter Simulation, mA Source and V Source Notices: 1) The VMA 0055 module is not hot-swappable. To install the module, turn the MFT base unit OFF, install the VMA 0055 in any bay and turn the MFT back ON. Attempting to install the VMA module with MFT power ON will cause the MFT to shut down.
  • Page 90 The top line of the V Range display indicates the range presently in use. To select a more suitable range for the application at hand, simply arrow Up or Down to the desired range and press the Save soft key. Press Back when satisfied with the range selection. 1.2 For current measurements up to ±100 mA, use the VMA module’s “mAmp”...
  • Page 91 Measure S1: 24.00 V S2: 0.000 PSIG S3: 72.05 deg F IV: 4.000 mA Poff Vrng More The SX sensor location (depending which bay the VMA is located in) should read approximately 24.00 VDC. The MFT’s IV value will read the loop current. To establish HART communications with the test device, press the MFT’s HART key.
  • Page 92 Milliamp Receiver Loop Load Module VOLTS Power Supply Milliamp Receiver Diagram 3.2 – Transmitter Simulation Connection Diagram 3.2 From MFT Measure Mode, press the More soft key 3.3 Press the Sensr soft key and then Next until the VMA module information is displayed (MFT bay S1 module information is displayed first, then Next changes to bay S2, etc…) 3.4 Press the Setup soft key option for the VMA module to display the VMA Main...
  • Page 93 Vma Settings Current Settings Enter Output Value _ 0.000 Next Done Inc – Increases the value shown above the cursor Dec – Decreases the value shown above the cursor Next – moves cursor to the right; eventually wraps back to left position Done –...
  • Page 94 Vma Setup Auto-Step 1: Start Mode: mA Source Low pt: 4.000 mA Upr pt: 20.000 mA Steps: 5 Auto-Step 3 Dwell Time: Manual Down Select Back Auto-Step Setup Display Start – Begins the desired simulation mode with the stepping parameters selected. Mode –...
  • Page 95 Regulated Power Regulated Loop Power Resolution Range 24V dc Accuracy ± (0.01% of reading + 0.015% FS) Open Circuit Voltage 24 VDC Output Drive 15 VDC minimum @ 24 mA, Resistive load Notes: 1. Nominal resistance at VMA current terminal is 10 – 15 Ω...

  • Page 96: Intrinsic Safety Control Document

    Intrinsic Safety Control Document Multifunction Tester MFT 4XXX Series Shift HART Shift HART...

  • Page 97: Hart Command Structure Menu Tree Examples

    1151 Rev. 5 Menu Tree Pressure Value Zero Trim Pressure Percent Range Lower Sensor Trim Process Vars Analog Output Upper Sensor Trim Lower Sensor Trim Point Upper Sensor Trim Point Pressure Trim Re Range Sensors Signal Cond Pressure Lower Range Value Pressure Upper Range Value Set 4mA Range Set 20mA Range...
  • Page 98 3051C Rev. 2 Menu Tree Pressure Value Zero Trim Pressure Percent Range Lower Sensor Trim Process Vars Analog Output Upper Sensor Trim Temperature Value Lower Sensor Trim Point Upper Sensor Trim Point Sensor Trim Re Range Sensors Signal Cond Pressure Lower Range Value Units Pressure Upper Range Value Set 4mA Range...
  • Page 99 EJA Rev. 2 Menu Tree Pressure Value Zero Trim Pressure Percent Range Lower Sensor Trim Analog Output Upper Sensor Trim Temperature Value Lower Sensor Trim Point Process Static Pressure Value Upper Sensor Trim Point Vars Engr Display Unit Engr Display Value Pressure Lower Range Value Pressure Upper Range Value Sensor Trim...
  • Page 100 EJA Rev. 1 Menu Tree Pressure Value Zero Trim Pressure Percent Range Lower Sensor Trim Analog Output Upper Sensor Trim Temperature Value Lower Sensor Trim Point Process Static Pressure Value Upper Sensor Trim Point Vars Engr Display Unit Engr Display Value Pressure Lower Range Value Pressure Upper Range Value Sensor Trim...
