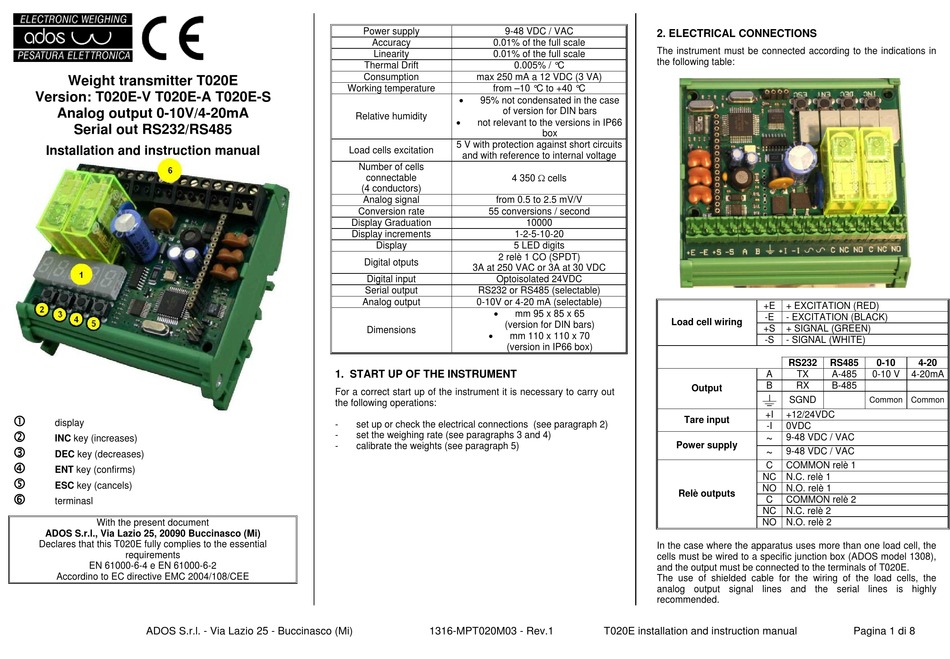

Ados T020E Series Installation And Instruction Manual

Weight transmitter T020E
Version: T020E-V T020E-A T020E-S
Analog output 0-10V/4-20mA
Serial out RS232/RS485
Installation and instruction manual

display

INC key (increases)

DEC key (decreases)

ENT key (confirms)

ESC key (cancels)

terminasl
With the present document
ADOS S.r.l., Via Lazio 25, 20090 Buccinasco (Mi)
Declares that this T020E fully complies to the essential
requirements
EN 61000-6-4 e EN 61000-6-2
Accordino to EC directive EMC 2004/108/CEE
ADOS S.r.l. - Via Lazio 25 - Buccinasco (Mi)
Power supply 9-48 VDC / VAC
Accuracy 0.01% of the full scale
Linearity 0.01% of the full scale
Thermal Drift 0.005% / °C
Consumption max 250 mA a 12 VDC (3 VA)
Working temperature from –10 °C to +40 °C

95% not condensated in the case
of version for DIN bars
Relative humidity

not relevant to the versions in IP66
5 V with protection against short circuits
Load cells excitation
and with reference to internal voltage
Number of cells
4 350  cells
connectable
(4 conductors)
Analog signal from 0.5 to 2.5 mV/V
Conversion rate 55 conversions / second
Display Graduation
Display increments 1-2-5-10-20
Display 5 LED digits
2 relè 1 CO (SPDT)
Digital otputs
3A at 250 VAC or 3A at 30 VDC
Digital input Optoisolated 24VDC
Serial output RS232 or RS485 (selectable)
Analog output 0-10V or 4-20 mA (selectable)

(version for DIN bars)
Dimensions

mm 110 x 110 x 70
(version in IP66 box)
1. START UP OF THE INSTRUMENT
For a correct start up of the instrument it is necessary to carry out
the following operations:
- set up or check the electrical connections (see paragraph 2)
- set the weighing rate (see paragraphs 3 and 4)
- calibrate the weights (see paragraph 5)
1316-MPT020M03 - Rev.1

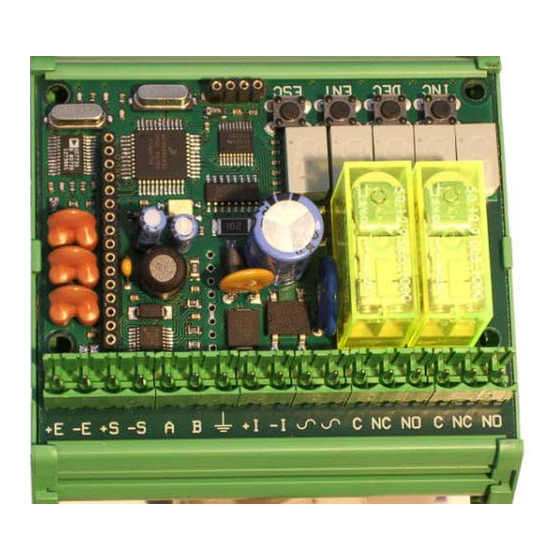

2. ELECTRICAL CONNECTIONS
The instrument must be connected according to the indications in
the following table:
box
10000
mm 95 x 85 x 65
Load cell wiring
Output
Tare input
Power supply
Relè outputs
In the case where the apparatus uses more than one load cell, the
cells must be wired to a specific junction box (ADOS model 1308),
and the output must be connected to the terminals of T020E.
The use of shielded cable for the wiring of the load cells, the
analog output signal lines and the serial lines is highly
recommended.
T020E installation and instruction manual
+E + EXCITATION (RED)
-E - EXCITATION (BLACK)
+S + SIGNAL (GREEN)
-S - SIGNAL (WHITE)
RS232 RS485 0-10 4-20
A TX A-485 0-10 V 4-20mA
B RX B-485
SGND
Common Common
+I +12/24VDC
-I 0VDC
9-48 VDC / VAC
~
9-48 VDC / VAC
~
C COMMON relè 1
NC N.C. relè 1
NO N.O. relè 1
C COMMON relè 2
NC N.C. relè 2
NO N.O. relè 2
