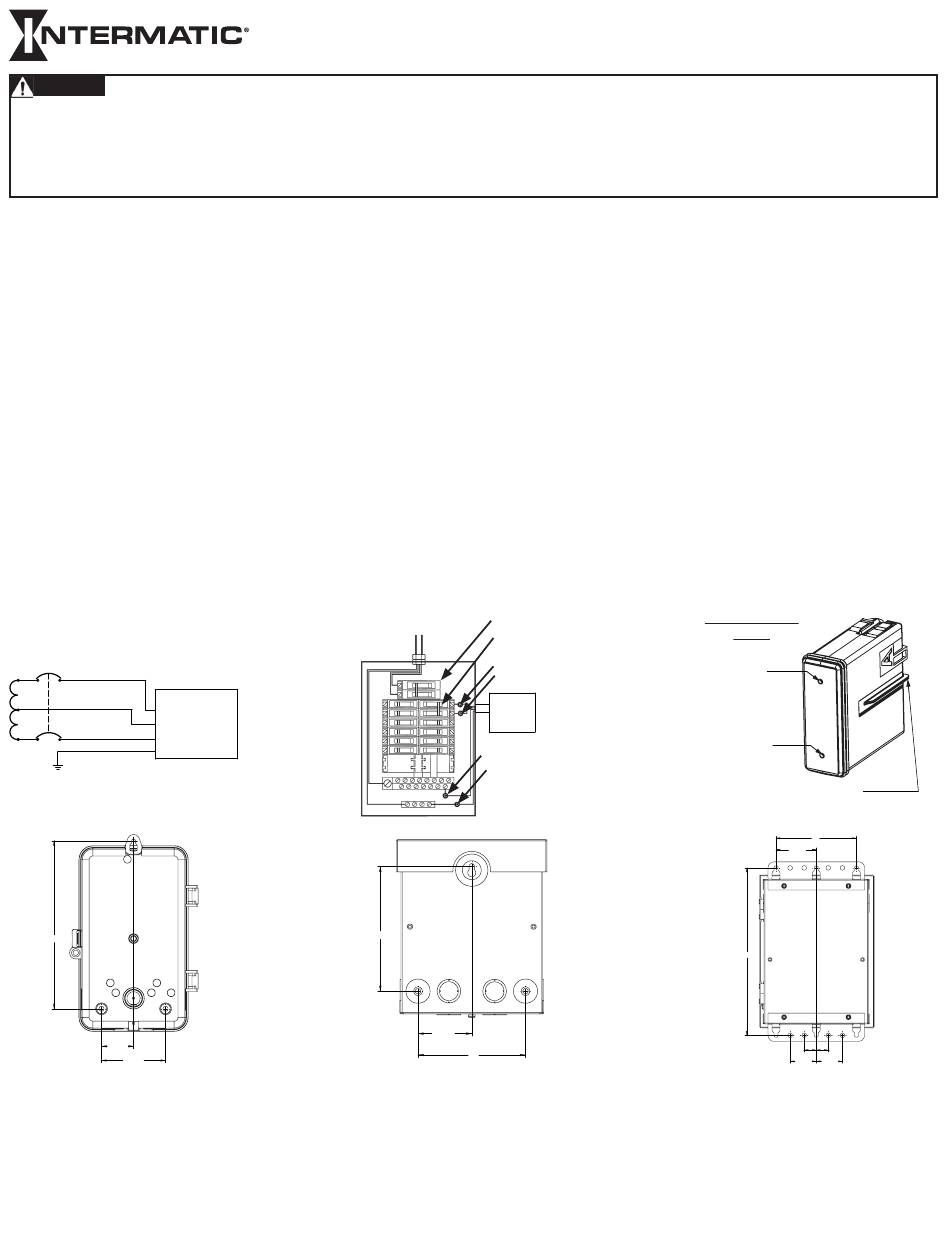

Intermatic IG2200 Installation Instructions

WARNING Risk of Fire or Electric Shock
• To be installed or serviced only by qualified personnel.
• Disconnect power at the service panel or disconnect switch(es) before installing or servicing.
• Installation and wiring must be in accordance with national and local electrical code requirements.
• Confirm consumable Surge Protective Device (SPD) is rated for the correct voltage and current for your application.
• KEEP DOOR CLOSED AT ALL TIMES when not servicing.
• Bonding between conduit connection and enclosure is not automatic and must be provided as part of the installation. Only one connection may be made to SPD enclosure.
• For outdoor locations, raintight, or wet locations, conduit hubs that comply with requirements of the UL514B (standard for fitting for conduit and outlet boxes) are to be used.
APPLICATION NOTES
1. Thoroughly read instructions before installing SPD unit.
2. This product is designed to protect against momentary transient overvoltage events.
3. This product does not protect against nearby lightning strikes.
4. This device features internal protection that will disconnect the surge protective component at the end of its useful life but will maintain power to the load-now unprotected. If this situation is undesirable
for the application, follow the manufacturers instructions for replacing SPD module(s).
5. Observe warnings and instructions on front panel and unit label of product.
DEFINITIONS
Type 2 SPD: A typical type 2 SPD installation will be connected to the load side of the service panel and is intended to be installed with overcurrent protection to the SPD.
INSTALLATION:
1. Verify system voltage.
2. Make sure SPD is correctly rated for system.
3. Determine mounting location of SPD unit.
The SPD unit should be located as close as possible to the load to be protected.
4. Mount enclosure
- Remove dead front from SPD unit.
- Disconnect power to SPD unit at power source before installation.
- Remove needed knockout from SPD unit once wire routing has been determined.
- Only one conduit connection may be made to the SPD enclosure.
- Mount enclosure using suitable fasteners in locations shown below. Do not rely on conduit fitting to support SPD unit.
5. Follow wiring diagram for all connections. (located within instruction sheets and SPD unit).
- Cut all wires to a minimum suitable length while maintaining a 4" recommended bend radius.
- Do not coil excess wire.
- Make sure all connections are secure.
- Replace dead front.
6. Energize SPD unit
- Flip circuit breaker to ON position at service panel or disconnect switch(es).
- Indicators: Each Consumable Surge Module has a blue LED to indicate the SPD unit has
power and a green LED to indicate that the SPD module is providing protection.
*2 Pole 30 amp circuit breaker in Service Panel.
*C/B
Line (black)
Neutral (white)
SPD
Line (black)
GND (green)
SPD TYPE 2 WIRING DIAGRAM
120/240 VAC SINGLE PHASE
8 1/2"
1 5/8"
3 1/4"
Plastic outdoor enclosure
SERVICING INSTRUCTIONS:
The Consumable SPD Module will absorb the energy of the surges to protect the connected load. If the green LED is OFF, the SPD module is no longer providing protection and should be replaced as soon
as possible.
TO REPLACE CONSUMABLE SURGE MODULE:
1. POWER MUST BE REMOVED FROM THE MODULE BEFORE REPLACING.
2. Disconnect power to SPD unit at service panel and/or disconnect switch(es) before servicing.
3. Remove module to be replaced by firmly pulling straight out from SPD unit. The module door within the unit will close once the module is removed.
4. Make sure SPD module is correctly rated for system.
5. Place new module back into SPD unit. Make sure SPD module alignment key is oriented correctly when inserting.
6. Make sure the module is fully seated.
7. Re-energize SPD unit.
8. Verify the blue and green LED's within each module are lit.
INSTALLATION INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS • SAVE THESE INSTRUCTIONS
5 3/4"
Main Breaker
2-Pole, 30A circuit
breaker
Black (Line)
Black (Line)
SPD
UNIT
Neutral (White)
Green (Ground)
Type 2 Installation
2 1/2"
5"
Metal outdoor enclosure
IG2200 CONSUMABLE SURGE SERIES
TYPE 2 SURGE PROTECTIVE DEVICES
Consumable Surge
Module
Blue LED: Power indicator
Green LED: Status indicator
ON: Protection is being provided.
OFF: Module is no longer providing
protection. Replace module as soon
as possible. Alignment key of module
5"
2 1/2"
10 3/8"
3/4" 3/4"
1 5/8" 1 5/8"

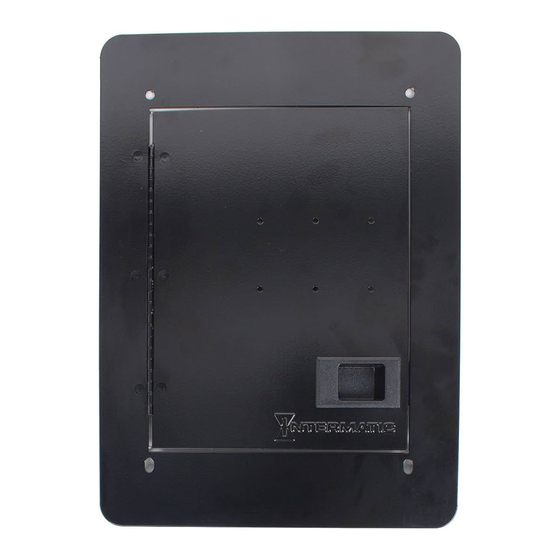

Metal indoor enclosure
(Flush mount kit IG2200--FMK)
