CON-TEC DLUX 30 E+ Manual

Manual
Bike LED Front Light
DLUX 30 E+ / DLUX 50 E+
Congratulations on the purchase of your new device. The user's manual is part of this device and
contains important information to safety, installation and disposal. Familiarize yourself with all
operating and safety instructions before using the device. Use the device as described and in the
specified areas of application. Keep this manual in a safe place and hand it with you when distri-
buting the device.
Used symbols
CE – identification
Green Point – Recycling the packaging
Symbol for the detection of electrical and electronic devices
Test mark of the Federal Motor Transport Authority
K XXXX
(K with the following approval number))
Mounting only on pedal with assistance with
DC AC
DC voltage supply
Proper use
The product is intended for use on bicycles with pedal assistance and serves the illumination
of the road. This LED front light is approved according to the currently valid RTLR (StVZO). The
product is intended for outdoor use.
Note:
The light should only be installed on bikes with pedal assistance that meets one of the following
conditions. If after unloading-conditioned disconnection of the drive assistance still an
uninterrupted electricity supply of the lighting system is guaranteed for at least two hours or the
drive assistance can be used as an alternator transitional to continue to provide the lighting system
with power.
Safety information
WARNING! LIFE AND ACCIDENT HAZARD FOR INFANTS AND CHILDREN!
Never leave children unattended with the packaging material, because of suffocation danger by
swallowing packaging parts. Always keep the device away from children. The device is not a toy!
This device can be used by children of age 8 and over and by persons with reduced physical or
mental capabilities or lack of experience and knowledge if they have been supervised or instructed
concerning the safe use of the device and by understanding resulting hazards. Children are not
allowed to play with the device. Cleaning and user maintenance should not be carried out by children
without supervision. Do not disassemble the device. Improper repairs can cause significant risks
for the user. Only have repairing made by qualified personnel.
Manual_DLUX 30/50 E
Safety information
- Do not look into the LEDs of the front - or tail light.
- Do not point the LED front light directly at people or animals.
- The light beam of the LED front light must point straight in direction.
- The front light must be so adjusted that it doesn't dazzle other traffic participants.
- The light distribution may be obscured by no other attached parts or pieces of luggage, not
even partially.
- The LEDs are not interchangeable. If the LED fails, the entire luminaire must be replaced.

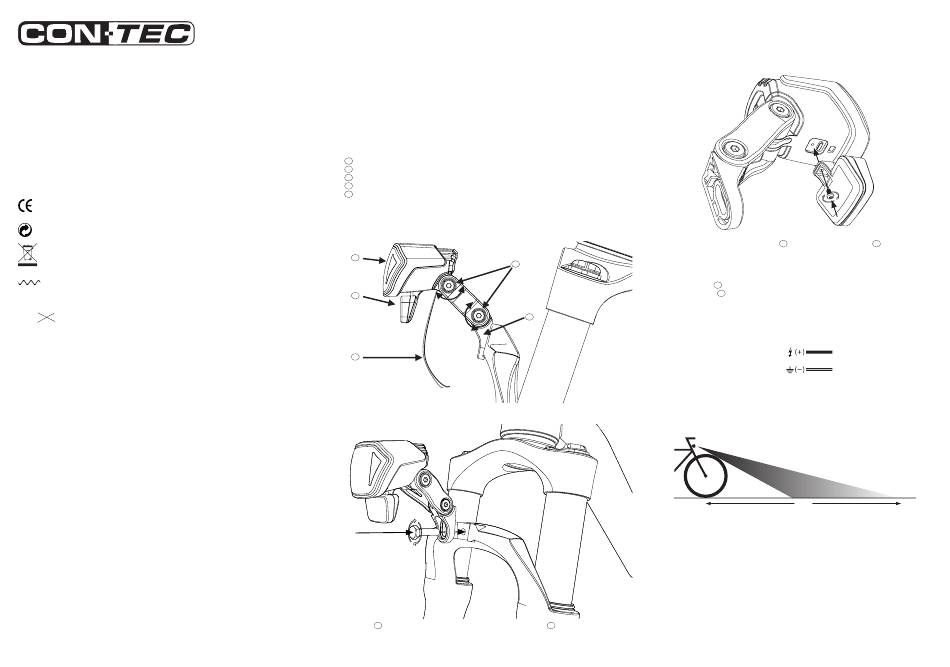

Mapped components

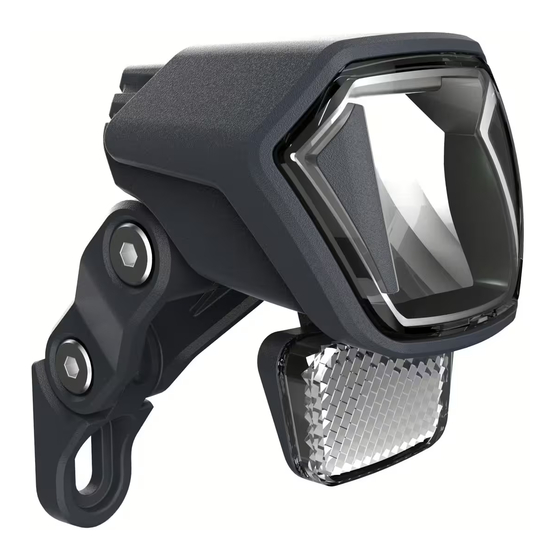

Front light
1
Integrated reflector
2
Connecting cable on the electrical bike system
3
Adjusting screw for height adjustment
4
Front light bracket
5
Front light
1
4
2
3
Front light assembly
Front light mount to the steel bracket and make sure that the front light
1
itself (tighten the screw firmly enough!)
Front reflector assembly (optional)
It is possible to mount a white reflector
equipped with two pins that adapt into the holes of the front light. Screw the reflector to the front
light for a permanent attachment.
Connection to the electric system
A pair of cables
of the front light
cable.
5
Black cable = power
Black-white cable = earth
Operation
The front light can be is switched on or off via the electrical bike system.
Front light adjustment
Align the LED front light so that the light beam reaches the road approx. 10 meters in front of
the wheel (see ill.).
Attention !
Check regularly the correct setting of your front light. The light beam of the LED front light must
point straight in direction from 400 up to 1200mm.
cannot be adjust by
1
to the bottom of the front light . The reflector is
2 1
for connecting to the electrical system of the bicycle is located at the bottom
3
1 . When connecting, pay attention to the correct polarity of the connection
10m
