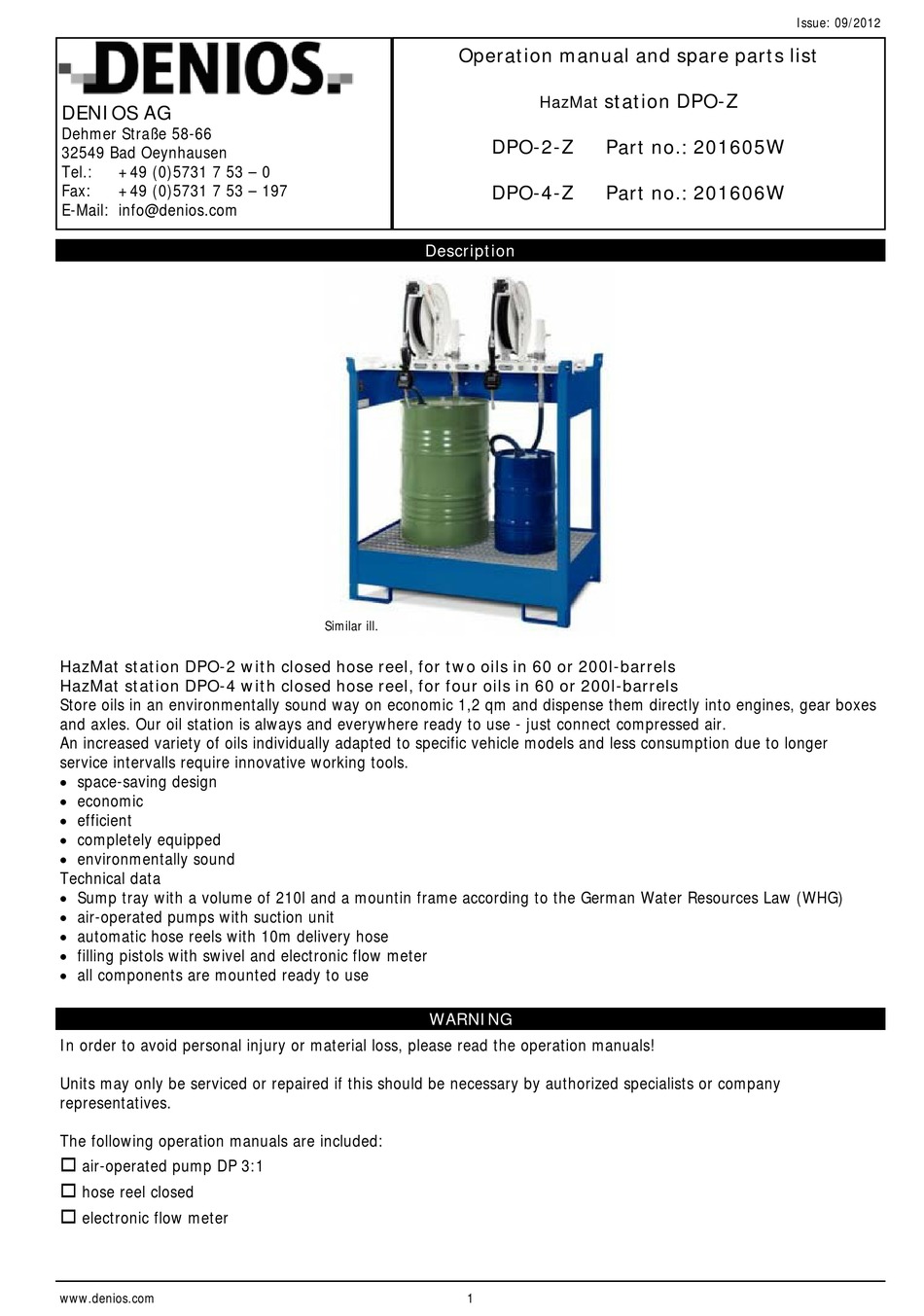

Denios HazMat DPO-Z Operation Manual

DENIOS AG
Dehmer Straße 58-66
32549 Bad Oeynhausen
Tel.: +49 (0)5731 7 53 – 0
Fax: +49 (0)5731 7 53 – 197
E-Mail: info@denios.com
HazMat station DPO-2 with closed hose reel, for two oils in 60 or 200l-barrels
HazMat station DPO-4 with closed hose reel, for four oils in 60 or 200l-barrels
Store oils in an environmentally sound way on economic 1,2 qm and dispense them directly into engines, gear boxes
and axles. Our oil station is always and everywhere ready to use - just connect compressed air.
An increased variety of oils individually adapted to specific vehicle models and less consumption due to longer
service intervalls require innovative working tools.
 space-saving design
 economic
 efficient
 completely equipped
 environmentally sound
Technical data
 Sump tray with a volume of 210l and a mountin frame according to the German Water Resources Law (WHG)
 air-operated pumps with suction unit
 automatic hose reels with 10m delivery hose
 filling pistols with swivel and electronic flow meter
 all components are mounted ready to use
In order to avoid personal injury or material loss, please read the operation manuals!
Units may only be serviced or repaired if this should be necessary by authorized specialists or company
representatives.
The following operation manuals are included:

air-operated pump DP 3:1

hose reel closed

electronic flow meter
www.denios.com
Operation manual and spare parts list
DPO-2-Z
DPO-4-Z
Description
Similar ill.
WARNING
1
station DPO-Z
HazMat
Part no.: 201605W
Part no.: 201606W
Issue: 09/2012
