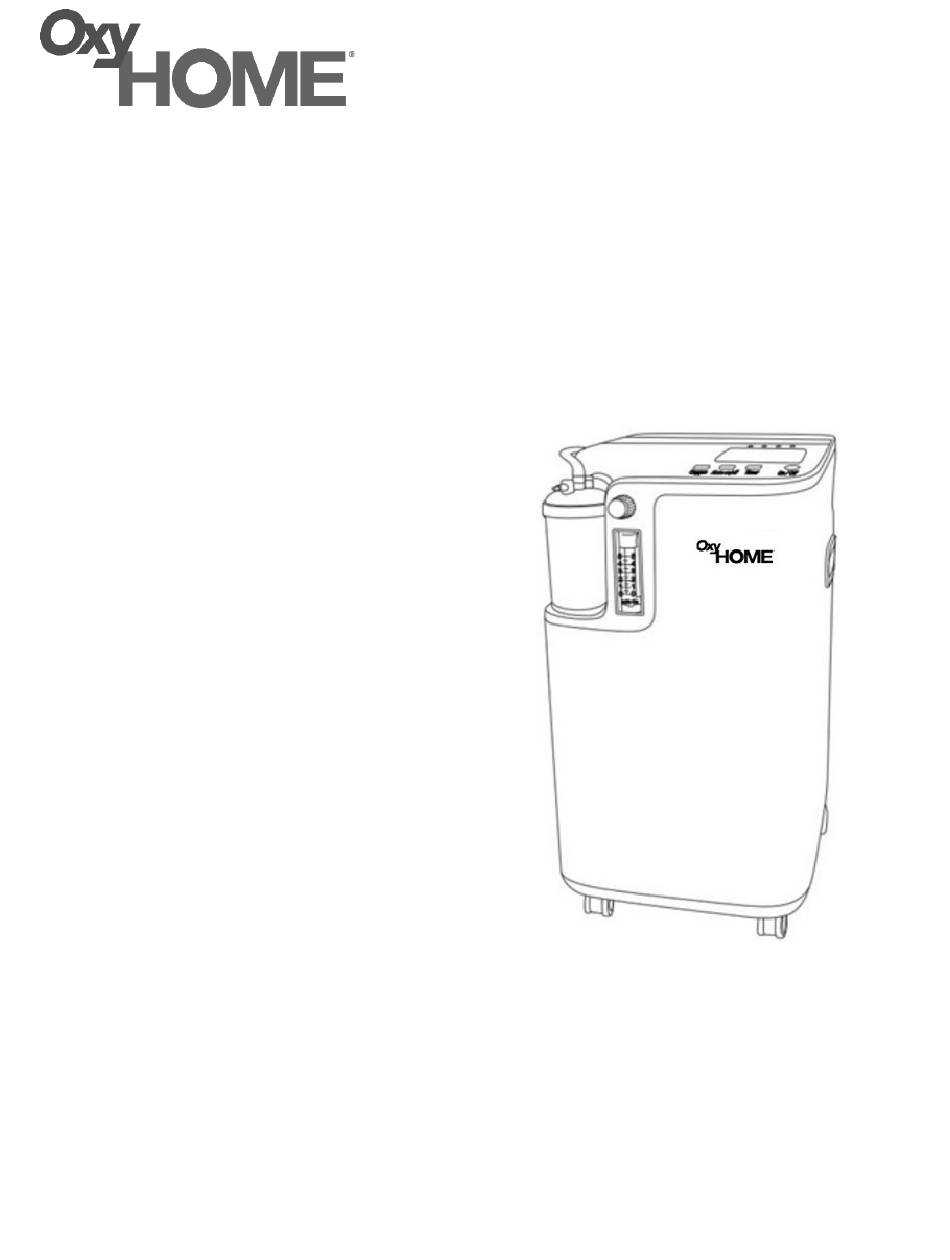

- Page 1 OXYGEN CONCENTRATOR User Manual Model: 1400-5100 Rx Only Caution: Federal law restricts this device to sale by or on the order of a physician. Read this instruction manual carefully before use...
-
Page 3: Table Of Contents
Contents Glossary - Explanation of Packaging and Labelling Symbols ................3 Introduction ................................4 About OxyHome ..............................4 General Information ..............................4 How to Use this Manual ............................4 Intended Use ................................4 Contraindications and Precautions ........................4 Warnings Overview ..............................5 Cautions Overview ..............................6 Concentrator Features .............................7 Front and Back of Concentrator ..........................7 Side Panel ................................7 Control Panel .................................8... -
Page 4: Glossary - Explanation Of Packaging And Labelling Symbols
◯ Glossary - Explanation of Packaging and Labelling Symbols On (Power) Off (Power) Refer to instruction Class II Device symbol manual/booklet WARNING - Statements that CAUTION - Statements that call describe serious adverse attention to special care to be reactions and potential safety exercised by the hazards. -
Page 5: Introduction
Introduction The OxyHome Oxygen Concentrator is used on a prescriptive basis by patients requiring supplemental oxygen. It supplies a high concentration of oxygen and is used with a nasal cannula to channel oxygen from the concentrator to the patient. Please refer to this manual for detailed instructions on warnings, cautions, specifications, and additional information. -
Page 6: Warnings Overview
Warnings Overview Do not use the product without first reading the user manual. Do not operate this device if unsure of its operation or function. Contact your home oxygen provider for assistance or further information. There is a risk of fire associated with oxygen equipment and therapy. Do not use near sparks or open flames. -
Page 7: Cautions Overview
Cautions Overview Keep away from heat sources (fireplaces, radiant heaters, etc.) that could cause the operating temperature at or near the device to exceed 104°F (40°C). The display may be difficult to read under bright lighting conditions (sunlight, interior lights, etc.), move away from direct light for viewing the display. -
Page 8: Concentrator Features
Concentrator Features Front and Back of Concentrator Display Top Handle Oxygen Outlet Port Flow Setting Knob Built-in Filter Box Humidifier Bottle Flow Meter Pause Button Alarm On/Off Cabinet Timer Switch On/Off Universal Wheels Side Panel Oxygen Outlet Port Circuit Breaker Side Handle... -
Page 9: Control Panel
Control Panel User Controls Item Description Function On / Off Switch Press the switch to turn the device “On” or “Off” Timer After the device starts to deliver the oxygen, you can set the treatment time by pressing and holding the Timer button for 10 seconds. -
Page 10: Flow Meter
Alarm Alarm Signals / Indicator light Alarm signal condition Item Auditory Alarm type Priority delay/ s generation Flashing Vacancy Yes/No Color delay/s frequency ratio Flashing Power supply failure every two Yellow alarm seconds Flashing every two Start-up fail alarm Yellow seconds Low oxygen concentration Flashing... -
Page 11: Operating Instructions
Necessary but not provided with this equipment – Nasal Cannula There are many types of nasal cannulas that can be used with this device. Any FDA approved nasal cannula tube can be used with continuous flow delivery and may be sized according to your prescription as recommended by your homecare provider who should also give you advice on the proper usage, maintenance, and cleaning. -
Page 12: Cleaning, Care, And Maintenance
Cleaning, Care, and Maintenance Routine Maintenance and Repairs The service life of the internal filters and sieve modules will depend on operating conditions. Do not attempt to repair the device. Contact your home oxygen provider or distributor for assistance. WARNING: Do not use oil, grease, or petroleum-based products on or near the Oxygen Concentrator or its accessories. -
Page 13: Troubleshooting
Troubleshooting If your concentrator fails to operate properly, consult your Equipment Provider, and refer to the troubleshooting chart below for probable causes and solutions. Problem Probable Cause Solution No or low oxygen Internal leak, kinked Check supply tube and cannula for obstructions. cannula, or supply tube. -
Page 14: Environmental
Temperature: -4F to 140F The permissible environmental conditions for transport and storage: Humidity limitation: up to 80% RH Temperature: -13F to 158F Environmental conditions of transport and storage between uses Humidity limitation: ≤90% RH Humidity limitation:15%RH to 90% RH Environmental Operational altitude of concentrator: 0-10,000 ft (3,000 m). - Page 15 Table 2 Guidance and Manufacturer’s Declaration: Electromagnetic Immunity 1400-5100 is intended for use in the electromagnetic environment specified below. The user of 1400-5100 should assure that it is used in such an environment. Compliance level Immunity test Electromagnetic environment guidance IEC 60601 test level Electrostatic Floors should be wood, concrete, or...
- Page 16 Table 3 Guidance and Manufacturer’s Declaration: Electromagnetic Immunity 1400-5100 is intended for use in the electromagnetic environment specified below. The customer or the user of 1400-5100 should assure that it is used in such an environment. IEC 60601 Test Level Compliance level Electromagnetic Environment - Guidance Immunity test Conducted RF...
- Page 17 Table 4 Recommended Separation Distances between Portable and Mobile RF Communications Equipment and this Device 1400-5100 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of 1400-5100 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment(transmitters)and 1400-5100, as recommended below, according to the maximum output power of the communications equipment.
-
Page 18: Terms And Conditions
Furthermore, this warranty in no case shall extend to payment of any monetary consideration or replacement or return of the product. EXCEPT AS PROVIDED HEREIN, OXYGO HQ FLORIDA, LLC MAKES NO WARRANTY WHATSOEVER WITH RESPECT... -
Page 19: Trademarks And Disclaimer
If you have questions about the information in these instructions or about the safe operation of this device, contact your home oxygen provider or distributor. To view the most up-to-date version of this manual, please visit our website at www.oxygo.life/oxyhome. Manufactured for: OxyGo HQ Florida, LLC...
Need help?
Do you have a question about the OXYHOME 1400-5100 and is the answer not in the manual?
Questions and answers
How do I set up my machine the first time?
To set up the OxyGo 1400-5100 machine for the first time, follow these steps:
1. Placement: Put the concentrator in a well-ventilated area, at least 6 to 12 inches away from walls, furniture, or curtains. Ensure that the ventilation ports at the bottom and back are not blocked.
2. Filters: Make sure both the inlet filter and gross particle filter are properly installed. Do not operate the device without these filters.
3. Power Connection: Plug the AC power cord into an electrical outlet.
4. Humidifier (if needed): If using a humidifier, connect tubing from the concentrator’s oxygen outlet to the humidifier. Then connect the oxygen supply tube or nasal cannula to the humidifier.
5. Inspection: Do not use the device or any accessories if they show signs of damage.
Refer to the supplier’s instructions for cleaning and disinfecting the oxygen supply tube and humidifier bottle.
This answer is automatically generated
Why does my oxyhome concentrator not have a humidifier bottle?
I don’t see any humidifier bottle on my oxyhome.
