45602 Instructions, Revision a.5
45602

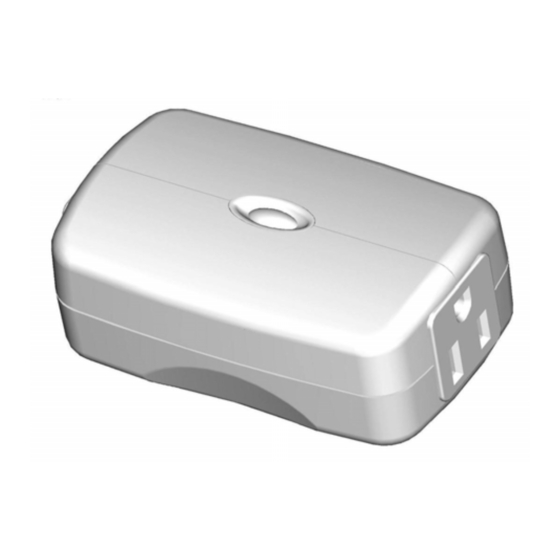

Z-Wave, RF Controlled, 300W, 120 VAC, Plug-In Lamp Module
R
Add callouts for Z-Wave and
Pass Through outlets
Thank you for your purchase of a GE SmartHome™ Z-Wave
automate lighting/home control and provide easy remote operation of all your Z-wave enabled devices. The GE Z-
Wave product family includes a variety of devices to enable and control lighting in your home. It is up to you whether
you want to control one room or your entire house and whether you want to do it all now or start with one room and
add more over time.
This module is one component of a Z-Wave
devices in a home control network. It will also act as a wireless repeater to insure that commands intended for
another device in the network are received, thereby extending the range of the wireless controller. Z-Wave devices
of other types and brands can be added to the system and will also act as range extenders if they support this
function of repeating the signal received to other nodes in the system.
The incandescent lighting plugged into the Z-Wave controlled outlet on this module must not exceed 300 watts.
Plugging a non-resistive load such as fluorescent lighting or a device with a motor may result in damage to the Lamp
Module and will void the warranty.
There are no user serviceable parts in this unit.
One Z-wave controlled AC outlet for standard incandescent lighting
Remote ON/OFF and Brightness control via the Z-Wave controller
o
Manual ON/OFF and Brightness control with the front panel pushbutton
o
One Always-ON pass-through AC outlet
Space efficient design
Does not block the 2
o
Plugs and cords for connected devices route to the side allowing close placement of furniture
o
The Front Panel Pushbutton on the 45602 Lamp Module allows the user to:
1. Manually turn the connected lighting ON/OFF by pressing the button.
This is a toggle switch; if the light is OFF, pressing the button turns the light ON and vice versa.
Page 1 of 4
®
control system and is designed to work with all other Z-Wave enabled
nd
outlet in a duplex wall receptacle
4/4/2007 6:26:10 PM
®
control device. Z-Wave technology is designed to
