Digital Remote
for Hoist Controller
Instruction Manual
Models:
CMC24-DIGI, CMC16-DIGI
CMC12-DIGI, CMC8-DIGI,
version 3.1 since 3 February 2020
ATTENTION!
This instruction manual contains important information about the installation and the use of
the equipment. Please read and follow these instructions carefully.
Always ensure that the power to the equipment is disconnected before opening the
equipment or commencing any maintenance work.
CMCXX-DIGI_en_manual_M011.doc
( 1 / 8)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SRS Labs CMC24-DIGI
Summary of Contents for SRS Labs CMC24-DIGI
- Page 1 Digital Remote for Hoist Controller Instruction Manual Models: CMC24-DIGI, CMC16-DIGI CMC12-DIGI, CMC8-DIGI, version 3.1 since 3 February 2020 ATTENTION! This instruction manual contains important information about the installation and the use of the equipment. Please read and follow these instructions carefully.
- Page 2 Safety information IMPORTANT INSTRUCTIONS All safety and operating instructions should be read before the equipment is installed or operated. IMPORTANT SAFETY INFORMATION The following general safety precautions have to be observed during all phases of operation, service, and the repair of this equipment. Failure to comply with these precautions or with specific warnings in this manual violates safety standards of design, manufacture, and the intended use of this equipment.
- Page 3 Operation The CMCxx-DIGI is manufactured from 1 to 48 channels and it suits as directional remote for digital controllers. The CMCxx-DIGI Motors/Hoists connected to the CMC-LVseries, GMDseries and AHDseries controller can be activated individually or simultaneously using the GO button located on the CMCxx-DIGI cable or wireless controller /WMC-DIGI/.
- Page 4 CMC-DIGITAL series controller CMC-DIGITALseries controller allows controlling of the RMCseries or GMDseries and GMC-LVseries via digital 5-pin cable connector. During standard operation, the full line cable must be equipped with Neutrik 5-pin connectors. Maximum cable length is 100m. The data connection is performed via RS485 communication line.

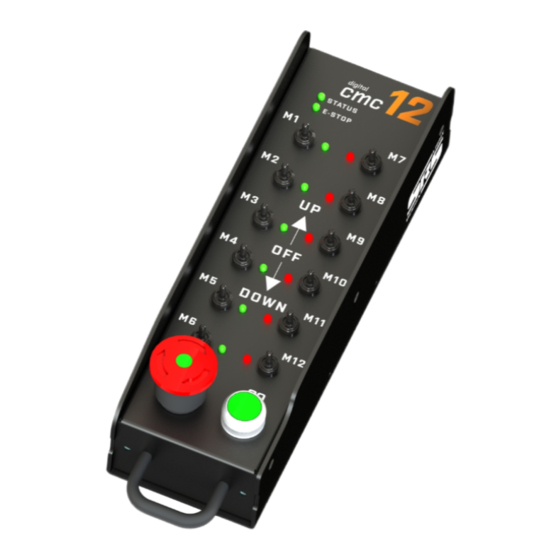

- Page 5 CMC12-DIGI / CMC8-DIGI / CMC4-DIGI STOP: This switch protects the operation of the base unit from undesired operation and its press turns the Controller to an inactive state. STOP is a red color button. Once the STOP button has been pressed, system is locked in an inactive position and the button must be rotated clockwise to be released to continue operation.
- Page 6 • Green Device ready for action • Indicates that the GO button is active • Orange Indicates the activity of direction switch, LED blinks in movement E-STOP LED • Green E-STOP system OK • Orange Indicates that the system needs to be reset •...
- Page 7 ( 7 / 8)
- Page 8 Copyright 2017 SRS Group, s.r.o. | Specifications subject to change without notice. Document: CMCXX-DIGI_en_manual_M011.doc | Version 3.1 | Actual as of: 3 February 2020 SRS Group s.r.o. Rybnicna 38/B | 831 07 Bratislava | Slovakia Phone: +421 2 32 661 800 Email: sales@srs-group.com | www.srs-group.com ( 8 / 8)
