Digital Remote
for Hoist Controller
Instruction Manual
Models:
CMC4-DIGI-AHD, CMC8-DIGI-AHD
CMC12-DIGI-AHD, CMC16-DIGI-AHD
CMC24-DIGI-AHD, CMC48-DIGI-AHD
version 3.1 since 3 February 2020
ATTENTION!
This instruction manual contains important information about the installation and the use of
the equipment. Please read and follow these instructions carefully.
Always ensure that the power to the equipment is disconnected before opening the
equipment or commencing any maintenance work.
CMC-DIGI-AHD_manual_M310.doc
( 1 / 8)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SRS Labs CMC4-DIGI-AHD
Summary of Contents for SRS Labs CMC4-DIGI-AHD
- Page 1 Digital Remote for Hoist Controller Instruction Manual Models: CMC4-DIGI-AHD, CMC8-DIGI-AHD CMC12-DIGI-AHD, CMC16-DIGI-AHD CMC24-DIGI-AHD, CMC48-DIGI-AHD version 3.1 since 3 February 2020 ATTENTION! This instruction manual contains important information about the installation and the use of the equipment. Please read and follow these instructions carefully.
- Page 2 Safety information IMPORTANT INSTRUCTIONS All safety and operating instructions should be read before the equipment is installed or operated. IMPORTANT SAFETY INFORMATION The following general safety precautions have to be observed during all phases of operation, service, and the repair of this equipment. Failure to comply with these precautions or with specific warnings in this manual violates safety standards of design, manufacture, and the intended use of this equipment.
- Page 3 Operation The CMCxx-DIGI-AHD is manufactured from 1 to 48 channels and it suits as directional remote for digital controllers. The CMCxx-DIGI-AHD Motors/Hoists connected to the GMDseries and AHDseries controller can be activated individually or simultaneously using the GO button located on the CMCxx- DIGI-AHD cable or wireless controller /WMC-DIGI-AHD/.
- Page 4 CMC-DIGI-AHD series remote CMC-DIG-AHDseries remote allows controlling of the AHDseries and GMDseries via digital 5-pin cable connector. During standard operation, the full 5core cable must be equipped with Neutrik 5-pin connectors. Maximum cable length is 1000m. The data connection is performed via RS485 communication line.

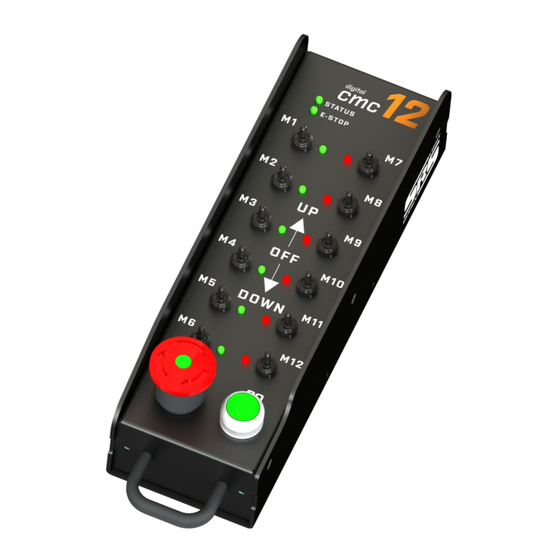

- Page 5 CMC4-DIGI-AHD / CMC12-DIGI-AHD STOP: This switch protects the operation of the base unit from undesired operation and its press turns the Controller to an inactive state. STOP is a red color button. Once the STOP button has been pressed, system is locked in an inactive position and the button must be rotated clockwise to be released to continue operation.
- Page 6 CMC48-DIGI-AHD: 107 x 330 x 105 mm , CMC24-DIGI-AHD: 107 x 260 x 105 mm CMC16-DIGI-AHD: 107 x 260 x 105 mm , CMC12-DIGI-AHD: 107 x 190 x 105 mm CMC8-DIGI-AHD: 107 x 190 x 105 mm, CMC4-DIGI-AHD: 60 x 190 x 105 mm Warranty CMC-DIGI-AHD series hoist controller is covered by a 2-year manufacturer’s warranty.
- Page 7 ( 7 / 8)
- Page 8 Copyright 2017 SRS Group, s.r.o. | Specifications subject to change without notice. Document: CMC-DIGI-AHD_manual_M310 | Version 3.1 | Actual as of: 3 February 2020 SRS Group s.r.o. Rybnicna 38/B | 831 07 Bratislava | Slovakia Phone: +421 2 32 661 800 Email: sales@srs-group.com | www.srs-group.com ( 8 / 8)
