Connecting a GPS to Your Icom M302 radio
On the back panel of your radio, there are two blank wires (yellow and green) that
will connect to your GPS.

M302 Connections

Radio
NMEA in + (yellow)
NMEA in – (green)

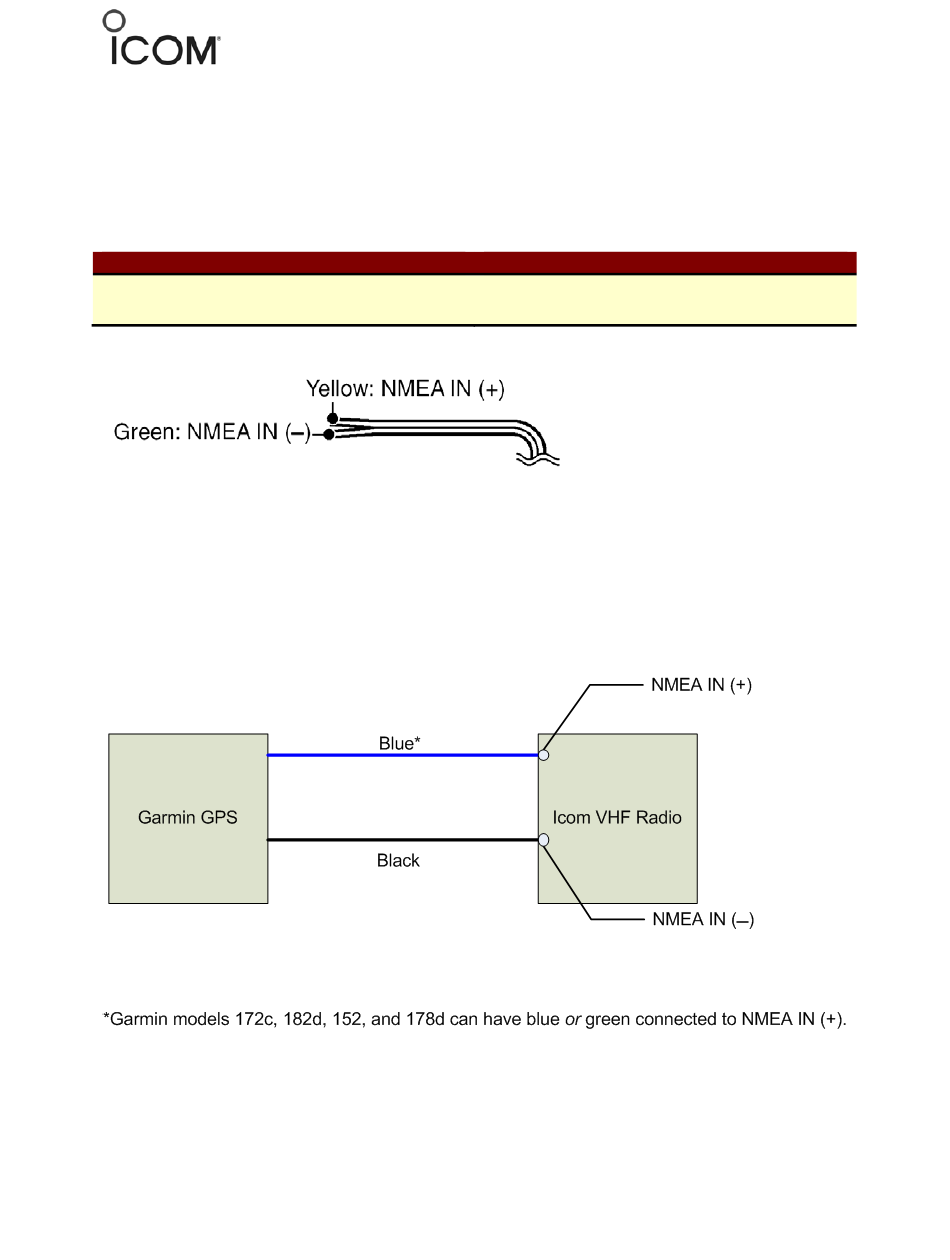

GPS Example Connections

You will need to solder the 2 wires to the NMEA wires from your GPS. For more
specific information, consult the individual instruction manual from the GPS
manufacturer.
Garmin GPS
©2011 Icom America Inc.
GPS
→
NMEA / Data out
→
NMEA / Data ground
Page 1
Icom America, Inc.
th
2380 116
Ave NE
Bellevue, WA 98004
425.454.7619

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M302 and is the answer not in the manual?

Questions and answers

Related Manuals for Icom M302

Summary of Contents for Icom M302

  • Page 1 2380 116 Ave NE Bellevue, WA 98004 425.454.7619 Connecting a GPS to Your Icom M302 radio On the back panel of your radio, there are two blank wires (yellow and green) that will connect to your GPS. M302 Connections Radio →...
  • Page 2 425.454.7619 Raymarine GPS Note: When using some Raymarine equipment you may need to connect your Icom radio directly to the Raymarine GPS itself, not through a repeated port from other equipment, such as a plotter. This ensures that the proper NMEA sentence passes to the radio.
  • Page 3  Have a technician check the plotter/GPS using test equipment to verify it is sending the GPS sentence.  Check the solder points on the radio and plotter connectors. Some connectors are very small, increasing the likelihood of solder bridging. Page 3 ©2011 Icom America Inc.
