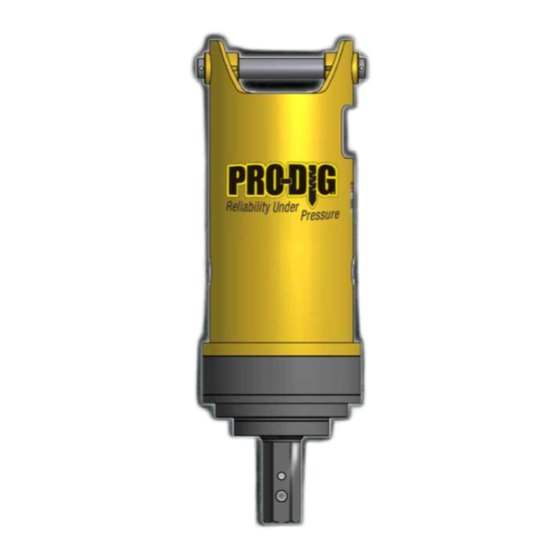

Auger & Anchor Drive
(Single Speed)
X9K5
Manual Number: PROX9K5
Release Date: September 3, 2011
Advertisement
Table of Contents
Related Manuals for Pro-dig X9K5
Summary of Contents for Pro-dig X9K5
- Page 1 Auger & Anchor Drive (Single Speed) X9K5 Instruction Manual Manual Number: PROX9K5 Operating Instructions Owners Manual Release Date: September 3, 2011 Maintenance Safety Precautions Parts Lists 720 E 9th St., Lawrence, KS 66044 866.259.1801 • 785. 856.2661 www.pro-dig-usa.com • info@pro-dig-usa.com...
- Page 2 Modifications may weaken the integrity of the equipment and may impair the Maintenance Cont./Troubleshooting ................9 functions, safety, life, and performance of the equipment. When making repairs, X9K5 Gearbox Parts Breakdown ................10 use only the manufactures genuine parts, following authorized instructions. Guarantee/Warranty ....................11 Other parts may be substandard in fit and quality.
- Page 3 • Keep a first aid kit near by when operating equipment. entangled. • Keep all parts of your body away from the drilling bit when operating the unit. oPerator Safety • DO NOT operate the PRO-DIG Auger Drive when the auger bit is more than 12” (305mm) above ™ warNiNg ground.
- Page 4 Min. Hydraulic Flow 10 GPM P/N 750002 Max. Hydraulic Flow 35 GPM oPeratioNS to avoid Before operating always ensure that the PRO-DIG Max. Continuous Pressure 3000 PSI ™ Auger Drive and auger or anchor are connected Output Shaft ” Hex 1.
- Page 5 • Quick release coupler is faulty. Replace faulty coupler. • If equipment has been altered in any way from it original design, PRO-DIG ™ does not accept any liability for injury or warranty.
- Page 6 Reliability Under Pressure X9K5 guaraNtee aNd warraNty Gearbox Exploded View Drawing Goods manufactured, rebuilt, supplied or installed by the Company are warranted against defects in material or workmanship by the Company or its supplier for twelve months but the Company may transfer to the customer the...
