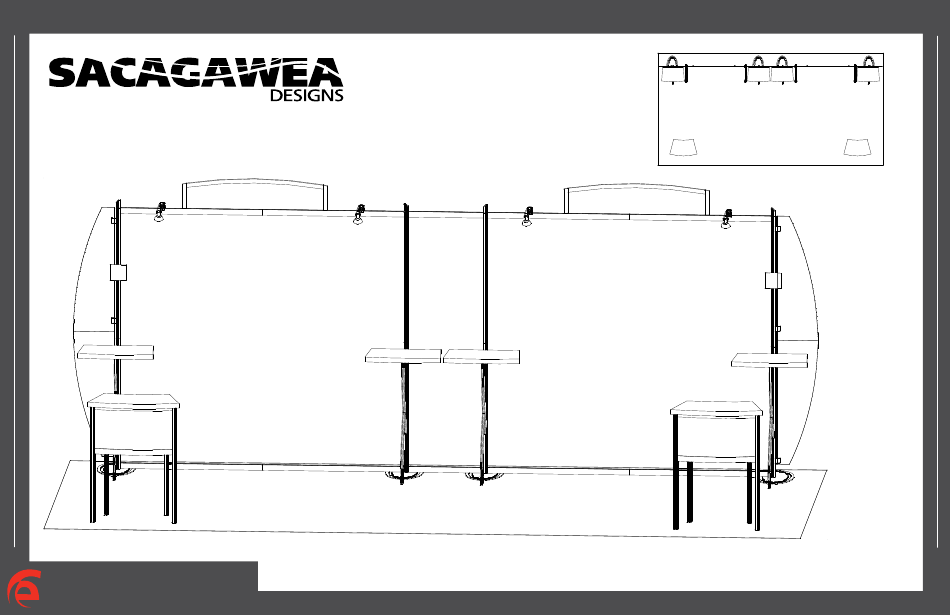

- Page 1 Step 1 Order #XXXXX - VK-2104 Sacagawea -General Layout 10’ 20’ Plan View WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2012 w w w . c l a s s i c e x h i b i t s . c o m Page 1 of 3...
- Page 2 Step 2 Order #XXXXX - VK-2104 Sacagawea - General Information Using You Set-up Instructions: The Visionary Designs Set-up Instructions for Sacagawea displays are created Hex Key Tool Typical Connection Typical Connection specifically for your configuration. They are laid out sequentially, including an exploded view of the entire display and a logical series of detailed steps for assembly.
-
Page 3: Back View
Step 1 Order #XXXXX - VK-2104 Sacagawea -Backwall Assembly Steps: 1) Attach base plates [1] to lower verticals [2a,3a,2c,3c] with bolts. 2.5”h Angle-Cut 2) Connect upper verticals [2b,3b,2d,3d] to lower verticals [2a,3a,2c,3c] with connection bars [b]. Vertical Attachment 3) Connect horizontals [4a,4b] and [5a,5b] with connection bars [a]. 4) Connect vertical assemblies [2a/2b,3a/3b,2c/2d,3c/3d] with horizontal assemblies [4a/4b,5a/5b] Tighten setscrew and horizontals [4c,5c] as shown. - Page 4 Step 2 Order #XXXXX - VK-2104 Sacagawea -Attachments Steps: Item Qty. Description 1) Attach lights as indicated. 7/8/9 2/2/2 Header Frame 2) Attach assembled header frames and apply graphics as shown. 30.2” Curved Extrusion 3) Attach assembled counter supports [10/11] to verticals where indicated. Leg Support 4) Attach support legs [10a] to counter supports [10/11].
- Page 5 Step 3 Order #XXXXX - VK-2104 Sacagawea - Pedestal Assembly (Qty. 2) Item Description 38”h Vertical Extrusion 13/13a 12”w Horizontal Extrusion 25”w Horizontal Extrusion Steps 1) Attach horizontal extrusions [13 and 13a] between vertical extrusions [12], placing inserts between horizontals. 2) Attach curved horizontal extrusions [14] between vertical extrusions [12], placing insert between curved horizontals.
-
Page 6: Top View
Order #XXXXX - Packing Instructions - Case 1 of 4 Top View Wing Panels Graphics Base Base Plates Plates Setup Hardware Counter Counter Lights Level 1 Level 2 Level 3 Level 4 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©... - Page 7 Order #XXXXX - Packing Instructions - Case 2 of 4 Top View Wing Panels Graphics Base Base Plates Plates Setup Hardware Counter Counter Lights Level 1 Level 2 Level 3 Level 4 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
- Page 8 Order #XXXXX - Packing Instructions - Case 3 of 4 Top View Front Insert Assembled Assembled Pedestal Pedestal Side Side Counter Top Shelf Level 1 Level 2 Level 3 Level 4 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
- Page 9 Order #XXXXX - Packing Instructions - Case 4 of 4 Top View Front Insert Assembled Assembled Pedestal Pedestal Side Side Counter Top Shelf Level 1 Level 2 Level 3 Level 4 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
