SACAGAWEA DESIGNS VK-2109 Quick Start Manual

Advertisement

Step 1

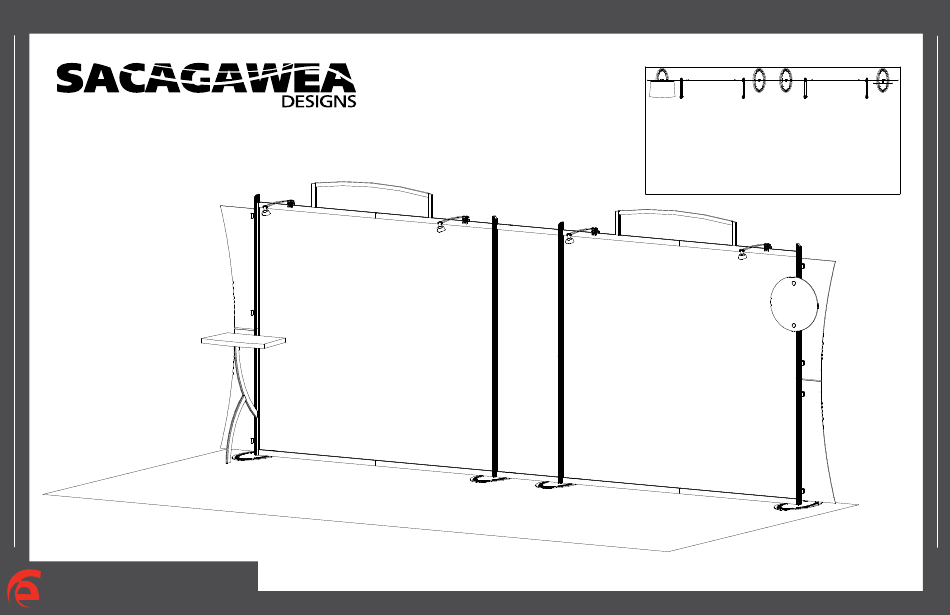

Order #xxxxx - Sacagawea - VK-2109 - General Layout
866.652.2100
10'
Plan View
20'
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
© 2012
w w w . c l a s s i c e x h i b i t s . c o m
Page 1 of 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VK-2109 and is the answer not in the manual?

Questions and answers

Summary of Contents for SACAGAWEA DESIGNS VK-2109

  • Page 1 Step 1 Order #xxxxx - Sacagawea - VK-2109 - General Layout 866.652.2100 10’ Plan View 20’ WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2012 w w w . c l a s s i c e x h i b i t s . c o m...
  • Page 2 Step 2 Order #xxxxx - Sacagawea - General Information 866.652.2100 Using You Set-up Instructions: The Visionary Designs Set-up Instructions for Sacagawea displays are created Hex Key Tool Typical Connection Typical Connection specifically for your configuration. They are laid out sequentially, including an exploded view of the entire display and a logical series of detailed steps for assembly.
  • Page 3 Step 1 Order #xxxxx - Sacagawea - Backwall Assembly 866.652.2100 Steps: 1) Attach base plates [1] to lower verticals [2a,3a,2c,3c] with bolts. 2.5”h Angle-Cut 2) Connect upper verticals [2b,3b,2d,3d] to lower verticals [2a,3a,2c,3c] with connection bars [b]. Vertical Attachment 3) Connect horizontals [4a,4b] and [5a,5b] with connection bars [a]. 4) Connect vertical assemblies [2a/2b,3a/3b,2c/2d,3c/3d] with horizontal assemblies [4a/4b,5a/5b] Tighten setscrew and horizontals [4c,5c] as shown.
  • Page 4 Step 2 Order #xxxxx - Sacagawea - Attachments 866.652.2100 Steps: Item Qty. Description 1) Attach lights as indicated. 7/8/9 2/2/2 Header Frame 2) Attach assembled header frames and apply graphics as shown. 30.2” Curved Extrusion 3) Attach assembled counter support [10/11] to verticals where indicated. Leg Support 4) Attach support leg [10a] to counter supports [10/11].
  • Page 5 Order #xxxxx - Case Packing Instruction - Case 1 of 2 866.652.2100 Top View of Each Level Backwall Counter Support Halogen Lights Assembled Header Base Plates Graphics Round Sign Counter Setup Hardware Level 1 Level 2 Level 3 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
  • Page 6 Order #xxxxx - Case Packing Instruction - Case 2 of 2 866.652.2100 Top View of Each Level Halogen Lights Assembled Header Graphics (2) Base Plates Level 1 Level 2 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
