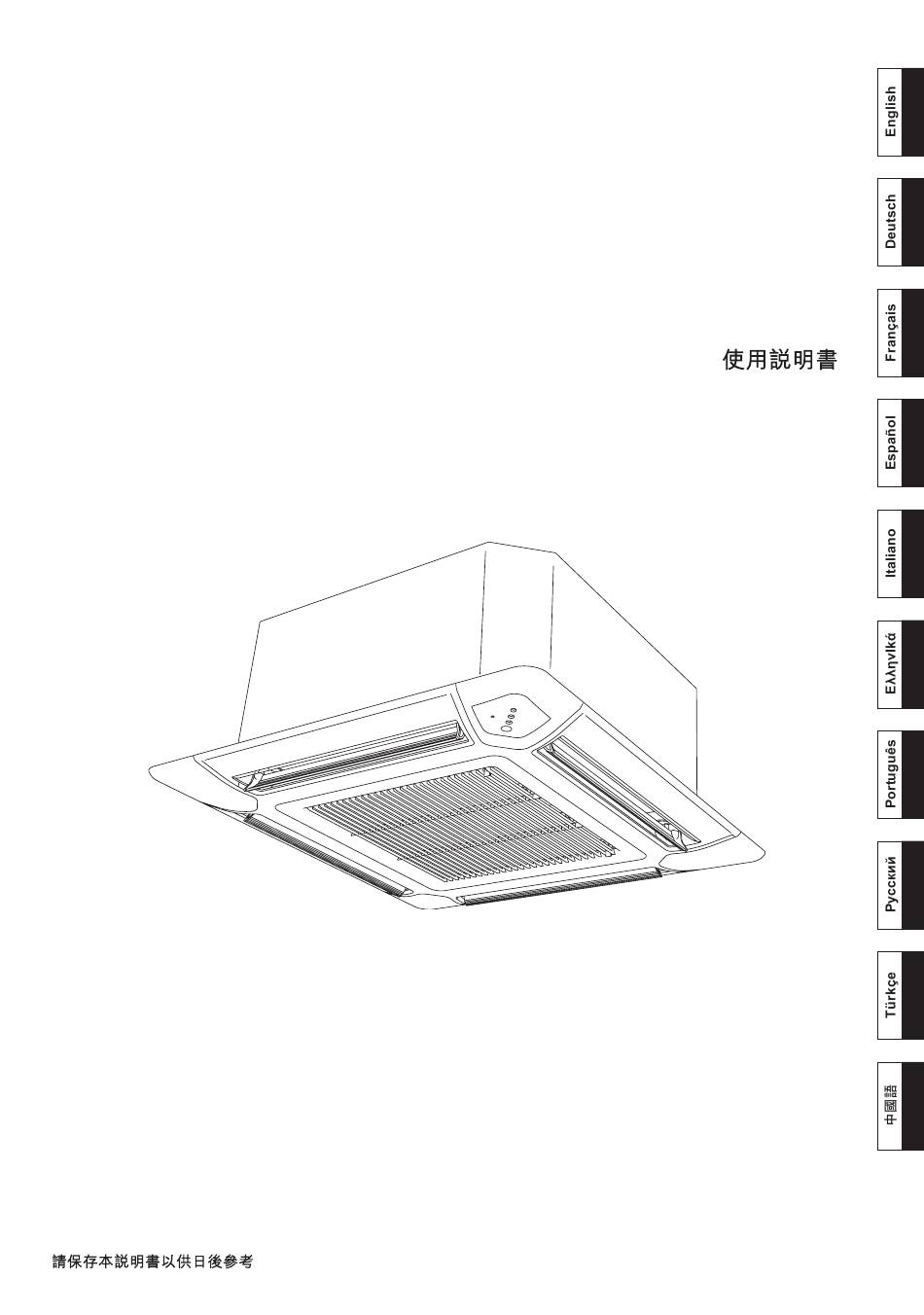

- Page 1 AIR CONDITIONER OPERATING MANUAL Compact Cassette Type BEDIENUNGSANLEITUNG MODE D’EMPLOI MANUAL DE FUNCIONAMIENTO MANUALE DI ISTRUZIONI ΕΓΧΕΙΡΙΔΙΟ ΛΕΙΤΟΥΡΓΙΑΣ MANUAL DE INSTRUÇÕES РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ KULLANMA KİTABI KEEP THIS MANUAL FOR FUTURE REFERENCE BEWAHREN SIE DIESES HANDBUCH ZUM SPÄTEREN NACHSCHLAGEN AUF CONSERVEZ CE MANUEL POUR RÉFÉRENCE ULTÉRIEURE CONSERVE ESTE MANUAL PARA SU FUTURA CONSULTA CONSERVARE IL PRESENTE MANUALE PER FUTURE CONSULTAZIONI...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ........2 ADJUSTING THE DIRECTION OF AIR CIRCULATION ..11 FEATURES AND FUNCTIONS ....... 3 SWING OPERATION ..........11 NAME OF PARTS ........... 4 ECONOMY OPERATION ........12 PREPARATION ............6 10°C HEAT OPERATION ........12 OPERATION ............7 SELECTING THE REMOTE CONTROLLER TIMER OPERATION .......... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Do not use infl ammable gases near the air conditioner. ● CAUTION This appliance is not intended for use by persons (including children) with reduced ● physical, sensory or mental capabilities, or lack of experience and knowledge, un- less they have been given supervision or instruction concerning use of the appli- ance by a person responsible for their safety. -
Page 4: Name Of Parts
NAME OF PARTS Indoor unit 1 Air Filter (in air intake grille) 2 Airfl ow direction fl aps 3 Air intake grille 4 Control panel 5 Remote control signal receiver 6 MANUAL AUTO button ● When the MANUAL AUTO button is pressed in for more than 10 seconds, the forced cooling operation will start. - Page 5 NAME OF PARTS Remote controller Display panel Display panel To facilitate explanation, the accompanying illustration has been drawn to show all possible indicators; in actual oper- ation, however, the display will only show those indicators appropriate to the current operation. 1 MODE button E Signal transmitter 2 10°C HEAT button...
-
Page 6: Preparation
PREPARATION CAUTION Load Batteries (R03/LR03 × 2) Take care to prevent infants from acciden- ● tally swallowing batteries. Press and slide the battery compartment lid on the ● When not using the remote controller for an reverse side to open it. extended period, remove the batteries to avoid possible leakage and damage to the Slide in the direction of the arrow while pressing the... -
Page 7: Operation
OPERATION To Select Mode Operation Press the START/STOP button. The indoor unit’s OPERATION indicator lamp will light. The air conditioner will start operating. Press the MODE button to select the desired mode. Each time the button is pressed, the mode will change in the following order. AUTO COOL HEAT... - Page 8 OPERATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). To Stop Operation Press the START/STOP button. The OPERATION indicator lamp will go out. MODE Operation AUTO (in COOLING model): When AUTO (automatic changeover) operation fi rst selected, the fan will ●...
-
Page 9: Timer Operation
TIMER OPERATION Before using the timer function, be sure that the remote controller is set to the correct current time (☞ Page 6.) If the indoor unit is connected to a wired remote controller, the wireless remote controller cannot be used to set the timer. Note: In simultaneous multi connection, this function by using the wireless remote controller cannot be used. -
Page 10: Sleep Timer Operation
SLEEP TIMER OPERATION Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operate is stopped. If the indoor unit is connected to a wired remote controller, the wireless remote controller cannot be used to set the sleep timer. Note: In simultaneous multi connection, this function by using the wireless remote controller cannot be used. - Page 11 ADJUSTING THE DIRECTION OF AIR CIRCULATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Begin air conditioner operation before performing this procedure. Vertical Air Direction Adjustment Press the SET button (Vertical). Each time the button is pressed, the air direction range will change as follows: The remote controller’s display ●...
- Page 12 ECONOMY OPERATION Begin air conditioner operation before performing this procedure. To Use the ECONOMY Operation Indicator Lamp Press the ECONOMY button. The ECONOMY indicator lamp (green) will light. ECONOMY operation begins. To Stop the ECONOMY Operation :Lighting :OFF Press the ECONOMY button again. The ECONOMY indicator lamp (green) will go out.
- Page 13 SELECTING THE REMOTE CONTROLLER SIGNAL CODE When two or more air conditioners are installed in a room and the Remote Controller is operating an air conditioner other than the one you wish to set, change the signal code of the Remote Controller to operate only the air conditioner you wish to set (4 selections possible).
-
Page 14: Cleaning And Care
CLEANING AND CARE Before cleaning the unit, be sure to stop the unit and disconnect the power supply. ● CAUTION Turn off the electrical breaker. ● A fan operates at high speed inside the unit, and personal injury could result. ●... -
Page 15: Troubleshooting
CLEANING AND CARE Filter Reset (ECONOMY indicator lamp fl ashing/ A special setting) Can be used if set correctly during installation. ● Please consult authorized service personnel when using this function. • It lights on when it is time to clean the air fi lters. After turning the power on, press the MANUAL AUTO button for 2 seconds or less on the indoor unit. - Page 16 TROUBLESHOOTING Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Symptom Problem See Page NORMAL Water is produced During heating operation, water may be produced from the outdoor unit due ● FUNCTION from the outdoor unit: to the automatic defrosting operation.
-
Page 17: Operating Tips
