ELPRO AG400011 Manual

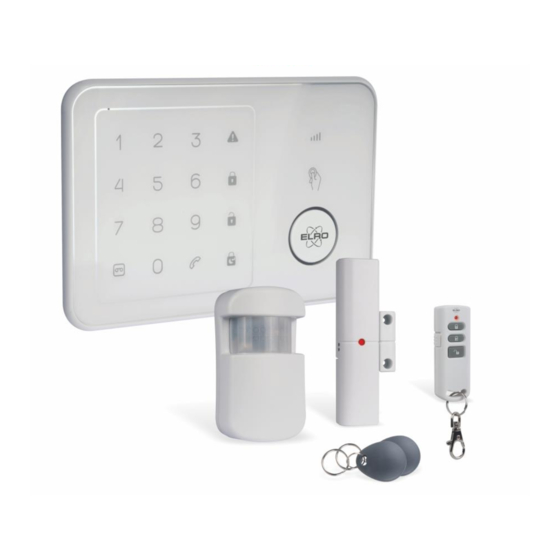

Home alarm system with smartphone app & dialer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1. Introduction
The AG400011 GSM Alarm panel is a control panel that is compatible with
other H-net security devices from Everspring, such as wireless sensors, remote
keyfobs, tags, and keypad. With this system you can achieve a better control of
your home security to make your life safer and easier than ever.
2. Product overview
A. Touch keypad
B. Microphone
C. Siren
D. RFID sensor area
E. GSM status led

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG400011 and is the answer not in the manual?

Questions and answers

Related Manuals for ELPRO AG400011

Summary of Contents for ELPRO AG400011

  • Page 1 1. Introduction The AG400011 GSM Alarm panel is a control panel that is compatible with other H-net security devices from Everspring, such as wireless sensors, remote keyfobs, tags, and keypad. With this system you can achieve a better control of your home security to make your life safer and easier than ever.

  • Page 2: Sim Card Installation

    3. Features • 868MHz Radio Frequency • 50 wireless zones • SIM card slot for GSM connection • SMS & phone call notifications up to 10 numbers • Easy operation by App • Easy disarm by RFID tag, with up to 50 tags supported. •...

  • Page 3: Mounting The Alarm Panel

    4-2 Setting Up the Host Phone Number [ALARM] LED Flashing: Alarm event triggered First of all you need to enter the Host Phone Number so that the GSM notification can function normally. The host phone number refers to the owner’s phone number that needs to be entered into the alarm panel so that it will recognize SMS [TEL] LED &...
  • Page 4 7. Configure the Alarm panel b. The “Show Caller ID” function on the contact’s mobile phone must be turned on to send SMS commands. The alarm panel can then determine if this an authorized There are 3 ways to configure the Alarm panel’; number 7-3 Alarm Type 1.
  • Page 5 signal strength indicated as: the siren on the alarm panel. An SMS will be sent to the Host Phone Number if disarmed by RFID Tag. The SMS content can be modified for Tags 1-4 (e.g. “Jack - LED 1 :Good, LED 2: Normal, LED 3: Poor, came home”, “Daniel disarmed”).
  • Page 6 9. When alarm occurs a. Press “1” key = Fully Arm and send SMS b. Press “2” key = Part-Arm and send SMS c. Press “3” key = Set the Siren to turn on Alarm and send SMS An alarm condition will be triggered when, in Fully Arm/Partial mode, a sensor is d.

  • Page 7: Telephone Functions

    11. Telephone Functions - Security Type “1” : Partial Arm and Fully Arm. The sensor will be activated when the system is in either Partial arm or Fully arm mode. When sensor is The alarm panel can operate as an ordinary telephone to make and answer GSM triggered the alarm will sound immediately without any preset delay.

  • Page 8: Hot Key Functions

    3. Enter PIN + 15 + PARM to start the binding process. The DISARM LED will start Speed Dial TEL_5 Hold 5 Speed dial phone number set 5 to blink for 30 seconds with a beep tone. PANIC Hold 9 Generate a Call for Help Alarm 4.

  • Page 9: Basic Troubleshooting

    PIN code or PUK code. batteries or DC-jack to power it on. Keep pressing the reset button until a beep c. Change the position of the AG400011. tone is heard. Release the button after beep tone.
  • Page 10 Specifications Operating temperature range -10°C to 50°C Operating humidity 85% RH at 30°C Input rating 9V DC 1A Battery type Li-ion cell 2000mAh 3.7V Transmission range Outdoors >150m (Open space) for front and sides Frequency range 868.35 MHz GSM band 850/900/1800/1900 MHz ** Specifications are subject to change without notice CAUTION...

  • Page 11: Appendix A: Touch Keypad Operation Table

    Appendix A: Touch Keypad Operation Table For HA71F outdoor solar siren Keys 1 – 8 LEDs will display siren DIP Switch Function Enter Key Explanation positions. Exit Delay: Arm Key LED flashes and beeps - ON position (1) = Key LED on Enter PIN code + (faster beeps at last 5 second countdown) - OFF position (0) = Key LED off...
  • Page 12 Add RFID No delay: alarm will sound immediately without any preset delay Same procedure for Remote keyfob, RFID Tag Enter PIN code + 15 + Tags and Keypad Security Mode 0 (up to 50 tags) Enter PIN code + 15 + 0 + Sensor activated only when Fully arm Enter PIN code + 20 + 3 Sensor will not be activated in Partial Arm.

  • Page 13: Appendix B: Sms Commands

    Appendix B: SMS commands TEL: These are the type of SMS commands the alarm panel receives and its Alarm Voicecall (Note 5) (Note1) confirmation message sent back to user. Phone Number SMS sent to TEL: Setup Operation SMS in Return panel 1.
  • Page 14 (Note 2) Zone1 Name: (Note 5) Siren Volume (0 Mute, 1 Low, 2 High): 2 Siren Volume Zone 1 Name (Note5) Zone1 Use result from Use result from Siren Volume (0 Get command, do Zone1 Name: Change Get command, do Entrance Door Set Zone Name Successfully Mute, 1 Low, 2 High):...

  • Page 15: Appendix C: Sms Alerts

    Appendix C: SMS Alerts Remote keyfob Emergency help notify Panic List of SMS alert messages automatically sent by the alarm panel when Phone number invalid Unauthorized Phone Number certain event occurs. SMS Command invalid Requirements Not Allowed Events SMS sent to user Alarm call confirmed The Phone Call Confirmed AC Adaptor Power Off...
