Sharp R-763IN Service Manual page 32

SCHEMATIC DIAGRAMS
NOTE:CONDITION OF OVEN
1. Door closed
2. Cooking mode at microwave position
3. Timer at zero
NO
NO
NC

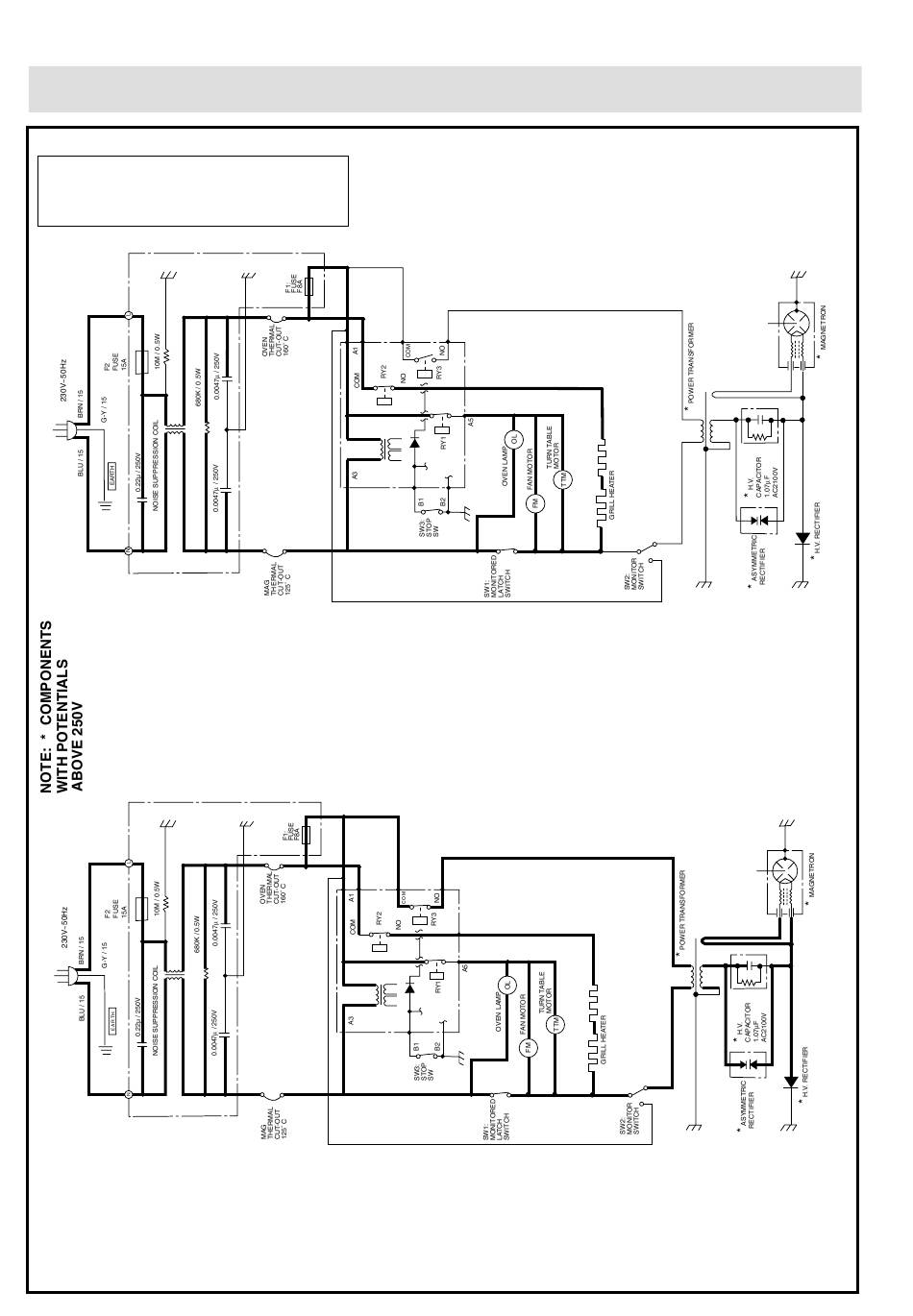

Figure O-3. Oven Schematic-Grill Condition
NO
NO
NC
Figure O-4. Oven Schematic-Dual Cooking Condition
