Astro Pneumatic Tool 3036 Manual

Model:
WARNING
Study, understand and follow all instructions provided with this
product. Read these instructions carefully before installing,
operating, servicing or repairing this tool. Keep these instructions
in a safe accessible place.
INTENDED USE OF THE TOOL
This belt sander is designed to be used to rapidly sand down
materials, to remove rust, paint and welds in hard to reach
areas. Do not use this tool outside of the designed intent.
Never modify the tool for any other purpose or use.
WARNING
• Normal use of this product is likely to expose the user to
dust and/or microscopic particles containing chemicals
known to the State of California to cause cancer, birth
defects or other reproductive harm. Always wear
appropriate safety equipment and clothing when using this
product. Study, understand and follow all instructions
provided with this product. Failure to read and follow all
warnings and operating instructions may result in damages
and serious injury or death.
• Always wear ANSI approved goggles when using this
product. (Users and Bystanders).
• Never use this tool for any application other than for
which it was designed.
• Only use accessories designed for this tool.
• Never alter or modify this tool in any way.
• Improper operation and/or maintenance of the tool,
modification of the tool, or use of the tool with accessories
not designed for it could result in serious injury or death.
• Always select the correct accessories of the correct size
and design for the job that you are attempting to perform.
• Always work in a clean, safe, well-lit, organized and
adequately equipped area.
• Do not begin repairs without assurance that vehicle is in
secure position, and will not move during repair.

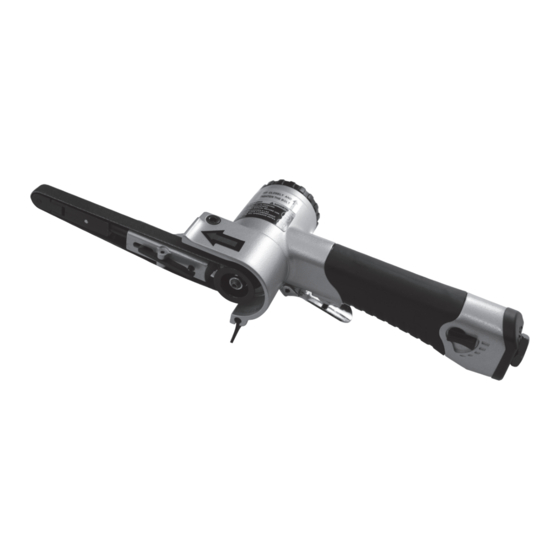

AIR BELT SANDER (10 x 330MM)
3036
MADE IN TAIWAN
Product Type:
AIR BELT SANDER (10 x 330MM)
www.astrotools.com
1 YEAR LIMITED WARRANTY
• Astro Pneumatic Tool Co. warrants our products to the original user against defective
material or workmanship for a period of 1 year (except where noted on our price
schedule) from the date of 1st use. Astro reserves the right to determine whether the
product failed because of defective material, workmanship or other causes and to charge
back for missing parts. Astro Pneumatic Tool Co., at its discretion, will repair products
covered under this warranty free of charge. The distributor should direct the original user
to return the product (with the exceptions listed below) with the distributor's name,
address, adequate proof of date of purchase or a copy of warranty card, and a short note
explaining the problem. Failures caused by accident, alteration, or misuse are not
covered by this warranty.
• If one part of this product fails, please do not return the entire product. Astro will
replace free of charge component parts of this product that fail within 1 year of first
use by the original user. Items included in this category include but are not limited
to kits, hand tool kits and any other product where there are multiple items or
components that make up the unit. Please contact the phone number below in
order to obtain the replacement components covered under warranty.
• Astro Pneumatic Tool Co. or its authorized service representatives must perform all
warranty repairs. Any repair to the product by unauthorized service representatives
voids this warranty. The rights under this warranty are limited to the original user and may
not be transferred to subsequent owners.
• This warranty is in lieu of all other warranties, expressed or implied, including warranties
of merchantability and fitness for a particular purpose. Some states do not allow the
exclusion of limitations of incidental or consequential damages so the
above limitations may not apply to you.
PLEASE DO NOT RETURN ANY PRODUCT WITHOUT CALLING
1-800-221-9705 FOR INSTRUCTIONS
When unpacking, check the parts diagram and part number
listing on page 4 to make sure all parts are included. If any
parts are missing or damaged, please call your distributor.
PRODUCT INFORMATION:
• Simple belt tension lever
• Non-slip handle grip
• Variable speed control
• Increase pulley space for new thicker belts
• Unit comes with:
1 - Sanding Belt 80 Grit - 10 mm x 330 mm
1 - Sanding Belt 100 Grit - 10 mm x 330 mm
1 - Sanding Belt 120 Grit - 10 mm x 330 mm
SPECIFICATIONS:
Free Speed: 16,000rpm
Size of Belt: 10mm x 330mm
Air Consumption: 4cfm
Overall Length: 12.59" (320mm)
Net Weight: 2.09 lbs. (0.95kg)
Air Inlet: 1/4"
Air Pressure: 90 psi
DO NOT DISCARD – GIVE TO USER
Page 1
Unpacking
