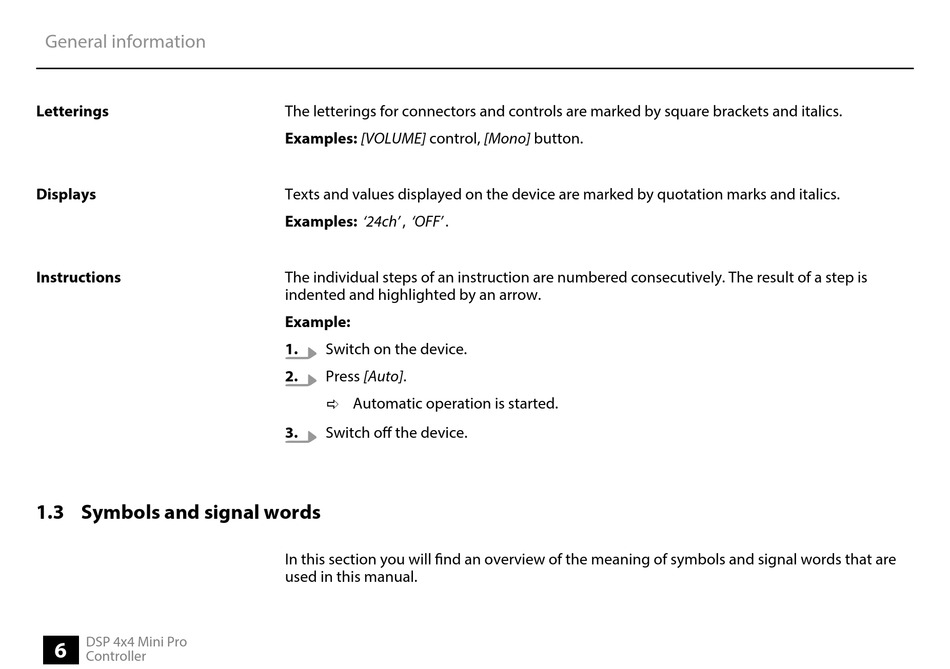

General information
Letterings
Displays
Instructions
1.3 Symbols and signal words
DSP 4x4 Mini Pro
6
Controller
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: '24ch' , 'OFF' .
The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1.
Switch on the device.
2.
Press [Auto].
ð Automatic operation is started.
3.
Switch off the device.
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
