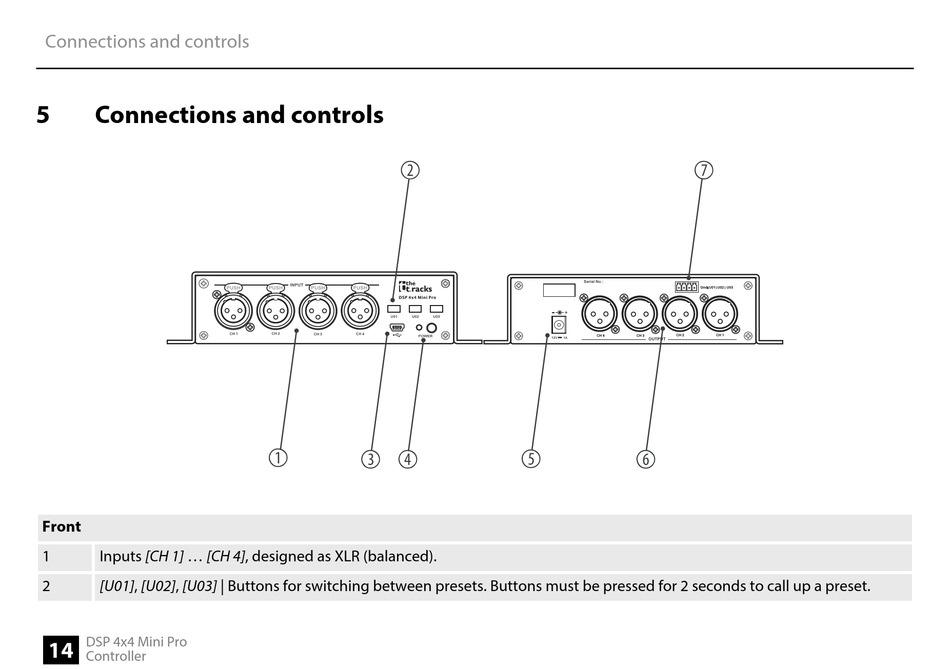

Connections and controls

5 Connections and controls
Front
1 Inputs [CH 1] ... [CH 4], designed as XLR (balanced).
2 [U01], [U02], [U03] | Buttons for switching between presets. Buttons must be pressed for 2 seconds to call up a preset.
DSP 4x4 Mini Pro
14
Controller
#
ö
$ %
(
CH 4 CH 3 CH 2
OUTPUT
& '
Gnd U01 U02 U03
CH 1
