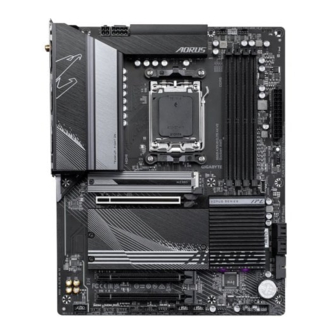

B650 AORUS ELITE AX ICE
(B650 A ELITE AX ICE)
B650 AORUS ELITE AX V2
(B650 A ELITE AX V2)
B650 AORUS ELITE V2
User's Manual
Rev. 1001
GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen.
Also, to reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.
For more product details, please visit GIGABYTE's website.
Advertisement
Table of Contents
Related Manuals for Gigabyte B650 A ELITE AX ICE
Summary of Contents for Gigabyte B650 A ELITE AX ICE
- Page 1 User's Manual Rev. 1001 GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen. Also, to reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
- Page 2 The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Product Introduction ..................4 Motherboard Layout ..................4 Motherboard Block Diagram ................5 Chapter 2 Hardware Installation ..................6 Installation Precautions ..................6 Product Specifications ..................7 Installing the CPU and CPU Cooler ............... 10 Installing the Memory ..................13 Installing an Expansion Card ................. -
Page 4: Chapter 1 Product Introduction
Chapter 1 Product Introduction Motherboard Layout ATX_12V1 CPU_FAN ARGB_V2_2 CPU_OPT ATX_12V QFLASH_PLUS QFLED SYS_FAN1 M2_WIFIjk Socket AM5 DP_HDMI20 USB20 USB 2.0 Hub U32_1 U32G2C U32_2 USB 3.2 Gen1 Hub U32G2_LAN RST_SW SYS_FAN4 _PUMP AUDIO CPU DRAM VGA BOOT PCIEX16 Realtek ®... -
Page 5: Motherboard Block Diagram
Motherboard Block Diagram PCI Express 5.0 (Note) CPU CLK+/- (100 MHz) DDR5 5200/4800/4400 MT/s 1 M.2 Socket 3 (M2A_CPU) PCI Express 4.0 Bus AM5 CPU 1 USB Type-C ® with USB 3.2 Gen 2 support 2 USB 3.2 Gen 2 Type-A 1 M.2 Socket 3 (M2B_CPU) USB 2.0... -
Page 6: Chapter 2 Hardware Installation
Chapter 2 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •... -
Page 7: 2-2 Product Specifications
2-2 Product Specifications AMD Socket AM5, support for: Š AMD Ryzen 7000 Series Processors ™ (Go to GIGABYTE's website for the latest CPU support list.) Chipset AMD B650 Š Memory Support for DDR5 5200/4800/4400 MT/s memory modules Š 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) Š... - Page 8 Storage Interface Š CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 (Note) SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: Š 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices...
- Page 9 ATX Form Factor; 30.5cm x 24.4cm Form Factor Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. Only for B650 AORUS ELITE AX ICE. Only for B650 AORUS ELITE AX V2.
-
Page 10: Installing The Cpu And Cpu Cooler
Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage. - Page 11 B. Installing the CPU Follow the steps below to correctly install the CPU into the motherboard CPU socket. j G ently press the CPU socket lever handle down and away from the socket. k C ompletely lift up the CPU socket lock- ing lever.
- Page 12 C. Installing the CPU Cooler Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for your CPU cooler.) Apply an even and thin layer of thermal grease on the surface of the installed CPU.
-
Page 13: Installing The Memory
Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) •... -
Page 14: Installing An Expansion Card
Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: • Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card. • Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage. -
Page 15: Back Panel Connectors
Back Panel Connectors Q-Flash Plus Button (Note) Q-Flash Plus allows you to update the BIOS when your system is off (S5 shutdown state). Save the latest BIOS on a USB thumb drive and plug it into the dedicated port, and then you can now flash the BIOS automatically by simply pressing the Q-Flash Plus button. - Page 16 7.1-channel audio, access the audio software for audio settings. & Please visit GIGABYTE's website for details on configuring the audio software. https://www.gigabyte.com/WebPage/697/realtek897-audio.html (Note) To enable the Q-Flash Plus function, please navigate to the "Unique Features" page of GIGABYTE's website for more information. - 16 -...
-
Page 17: Onboard Buttons And Leds
RST_SW The reset button provides you with several functions to use. To remap the button to perform different tasks, please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "RST_SW (MULTIKEY)" for more information. Status LEDs The status LEDs show whether the CPU, memory, graphics card, and operating system are working properly after system power-on. -
Page 18: Internal Connectors
Internal Connectors ATX_12V/ATX_12V1 F_PANEL F_AUDIO CPU_FAN F_U320G SYS_FAN1/2/3 F_U32 SYS_FAN4_PUMP F_USB1/F_USB2 CPU_OPT SPI_TPM ARGB_V2_1/ARGB_V2_2/ARGB_V2_3 LED_C CLR_CMOS SATA3 0/1/2/3 M2A_CPU/M2B_CPU/M2C_SB Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. •... - Page 19 1/2) ATX_12V1/ATX_12V/ATX (2x2, 2x4, 12V Power Connectors and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and The power connector possesses a foolproof design.
- Page 20 The header also provides speed control for a water cooling pump. Please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Smart Fan 6" for more information.
- Page 21 LED strip. For how to turn on/off the lights of the LED strip, please navigate to the "Unique Features" page of GIGABYTE's website. • To avoid abnormal LED behavior, do not connect addressable RGB Gen1 LED strips and addressable RGB Gen2 LED strips to the same header at the same time.
- Page 22 1.5Gb/s standard. Each SATA connector supports a single SATA device. The SATA connectors support RAID 0, RAID 1, and RAID 10. Please navigate to the "Configuring a RAID Set" page of GIGABYTE's website for instructions on configuring a RAID array.
- Page 23 M.2 PCIe SSDs. Please note that an M.2 PCIe SSD cannot be used to create a RAID set with a SATA hard drive. Please navigate to the "Configuring a RAID Set" page of GIGABYTE's website for instructions on configuring a RAID array.
- Page 24 Connects to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch (please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Soft-Off by PWR-BTTN" for more information).
- Page 25 12) F_AUDIO (Front Panel Audio Header) The front panel audio header supports High Definition audio (HD). You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header. Incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it.
- Page 26 14) F_U32 (USB 3.2 Gen 1 Header) The header conforms to USB 3.2 Gen 1 and USB 2.0 specification and can provide two USB ports. For purchasing the optional 3.5" front panel that provides two USB 3.2 Gen 1 ports, please contact the local dealer.
- Page 27 F_USB3 F 16) SPI_TPM (Trusted Platform Module Header) You may connect an SPI TPM (Trusted Platform Module) to this header. Pin No. Definition Data Output Power (3.3V) No Pin Data Input Chip Select S F_ S S_F 17) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off.
- Page 28 Reset The reset jumper provides you with several functions to use. To remap the button to perform different tasks, please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "RST_SW (MULTIKEY)" for more information. - 28 -...
-
Page 29: Chapter 3 Bios Setup
If this occurs, try to clear the CMOS values and reset the board to default values. • Refer to the introductions of the battery/clear CMOS jumper in Chapter 2 or navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Load Optimized Defaults" for how to clear the CMOS values. - Page 30 Startup Screen: The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or to access the Q-Flash utility in BIOS Setup. <F12>: BOOT MENU Boot Menu allows you to set the first boot device without entering BIOS Setup.
-
Page 31: Chapter 4 Installing The Operating System And Drivers
Step 1: Go to GIGABYTE's website, browse to the motherboard model's web page, download the AMD RAID Preinstall Driver file on the Support\Download\SATA RAID/AHCI page, unzip the file and copy the files to your USB thumb drive. -
Page 32: Drivers Installation
(GCC). Click Install to proceed with the installation. (In BIOS Setup, make sure Settings\Gigabyte Utilities Downloader Configuration\Gigabyte Utilities Downloader is set to Enabled.) When the End User License Agreement dialog box appears, press <Accept> to install GIGABYTE Control Center (GCC). On the GIGABYTE CONTROL CENTER screen, select the drivers and applications you want to install and click Install. -
Page 33: Chapter 5 Appendix
• A USB thumb drive. An M.2 PCIe SSD cannot be used to set up a RAID set either with a SATA hard drive. & Please visit GIGABYTE's website for details on configuring a RAID array. https://www.gigabyte.com/WebPage/918/amd600-raid.html - 33 -... -
Page 34: Regulatory Notices
Product Name: Motherboard Trade Name: GIGABYTE Model Number: B650 A ELITE AX ICE / B650 A ELITE AX V2 / B650 AORUS ELITE V2 Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338... - Page 35 European Commission Delegated Directive (EU) 2015/863 Statement I prodotti con il marchio CE sono conformi con una o più delle seguenti GIGABYTE products have not intended to add and safe from hazardous Direttive UE, come applicabile: Direttiva EMC 2014/30/UE, Direttiva sulla substances (Cd, Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP).
- Page 36 European Community Radio Equipment Directive Compliance Statement: This equipment complies with all the requirements and other relevant provisions of Radio Equipment Directive 2014/53/EU. This equipment is suitable for home and office use in all the European Community Member States and EFTA Member States. The low band 5.15 -5.35 GHz is for indoor use only.
-
Page 37: Contact Us
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231 TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : https://esupport.gigabyte.com WEB address (English): https://www.gigabyte.com WEB address (Chinese): https://www.gigabyte.com/tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: https://esupport.gigabyte.com...
