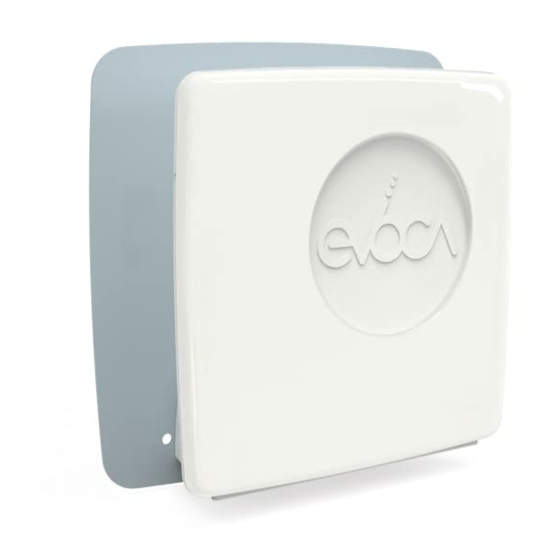

MIMO Antenna
TV-130990
Assembly, operation, and maintenance instructions
Contents of the box
A
B
Installation
1
Mast mount
E
A
PH #2
E
D
By
D
C
TO TV
TO ANT
USB
G
F
NEEDED TOOLS
E
10mm wrench
H
WITH A SUPPORT
E
Attach the plate
in the right position as
shown in the pictures. Screw it to the antenna
A
using both screws
D
.
Place the antenna in a vertical position and attach
it to the mast using the clamp
C
.
PH #2
Screw driver
(not included)
B
and the nuts
B
C
Advertisement
Related Manuals for Televes MIMO evoca TV-130990
Summary of Contents for Televes MIMO evoca TV-130990

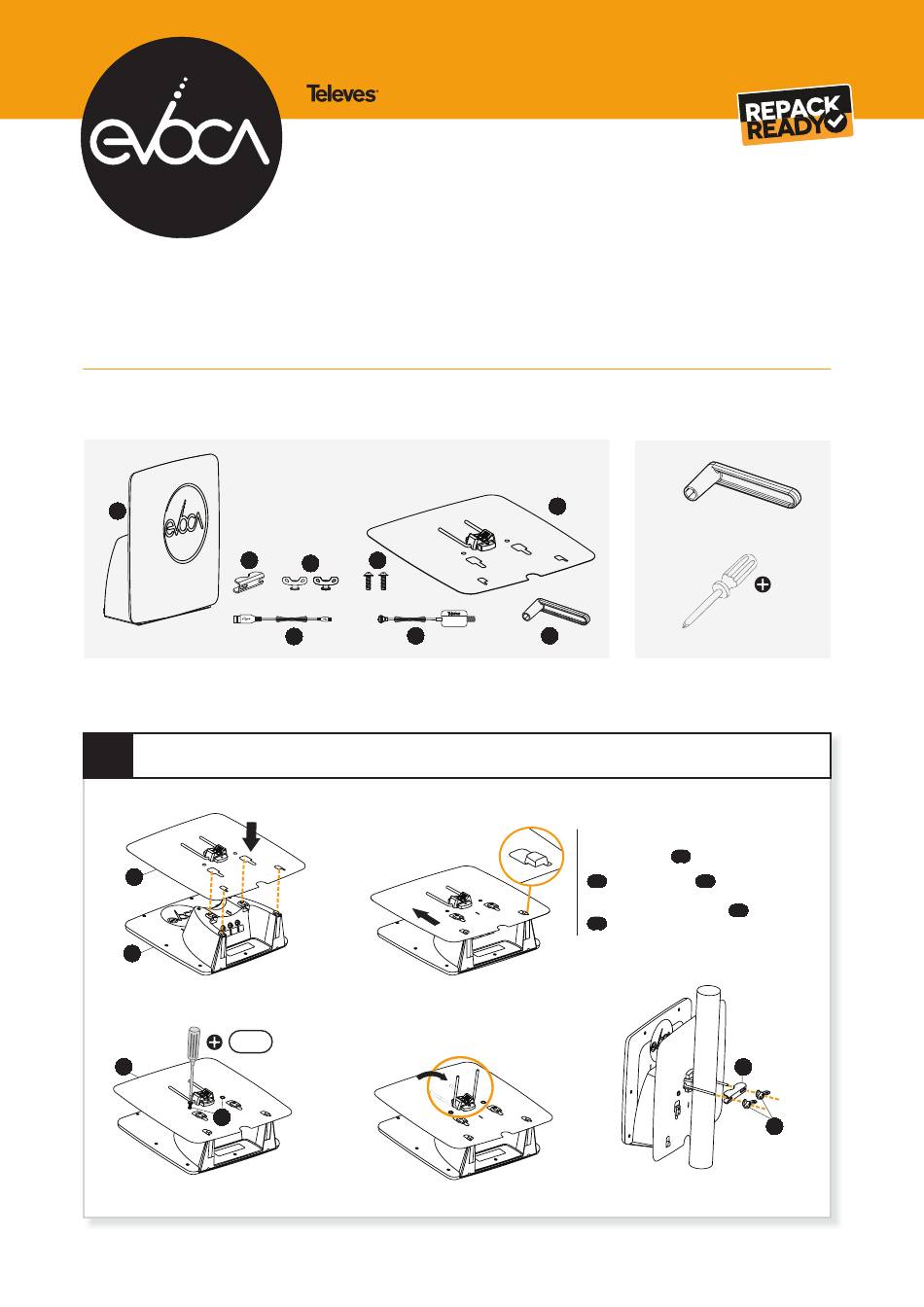

- Page 1 MIMO Antenna TV-130990 Assembly, operation, and maintenance instructions Contents of the box NEEDED TOOLS 10mm wrench PH #2 TO TV TO ANT Screw driver (not included) Installation Mast mount WITH A SUPPORT Attach the plate in the right position as shown in the pictures.
- Page 2 TABLE MOUNT WITH A REFLECTOR Remove the clamp and the screws from the plate using a 10mm wrench. Put the plate in the right position as shown by the arrow. Screw it to the antenna using both screws Rest the antenna on the table in a vertical position as shown in the picture below.
- Page 3 CONNECTION 1. 5G OUT 2. VERTICAL OUT + V 3. HORIZONTAL OUT + V Safety Instructions LIGHTNING PROTECTION wire, number eight (8) or larger. Example of antenna grounding as per The down lead wire from the antenna to National Electrical Code, ANSI/NFPA 70 If installed outdoors, be sure the antenna the lightning arrestor and the mast ground system is grounded so as to provide...
- Page 4 OUTDOOR EXAMPLE 01 MIMO MODE TO TV TO ANT 5G MODEM OUTDOOR EXAMPLE 02 NO MIMO MODE TO TV TO ANT YELLOW YELLOW YELLOW YELLOW VIOLET VIOLET GREEN GREEN GREEN GREEN 5G MODEM LIGHT LIGHT LIGHT LIGHT BLUE BLUE GREEN GREEN GREEN GREEN...
