Summary of Contents for Wano VG Lock vG-BL4

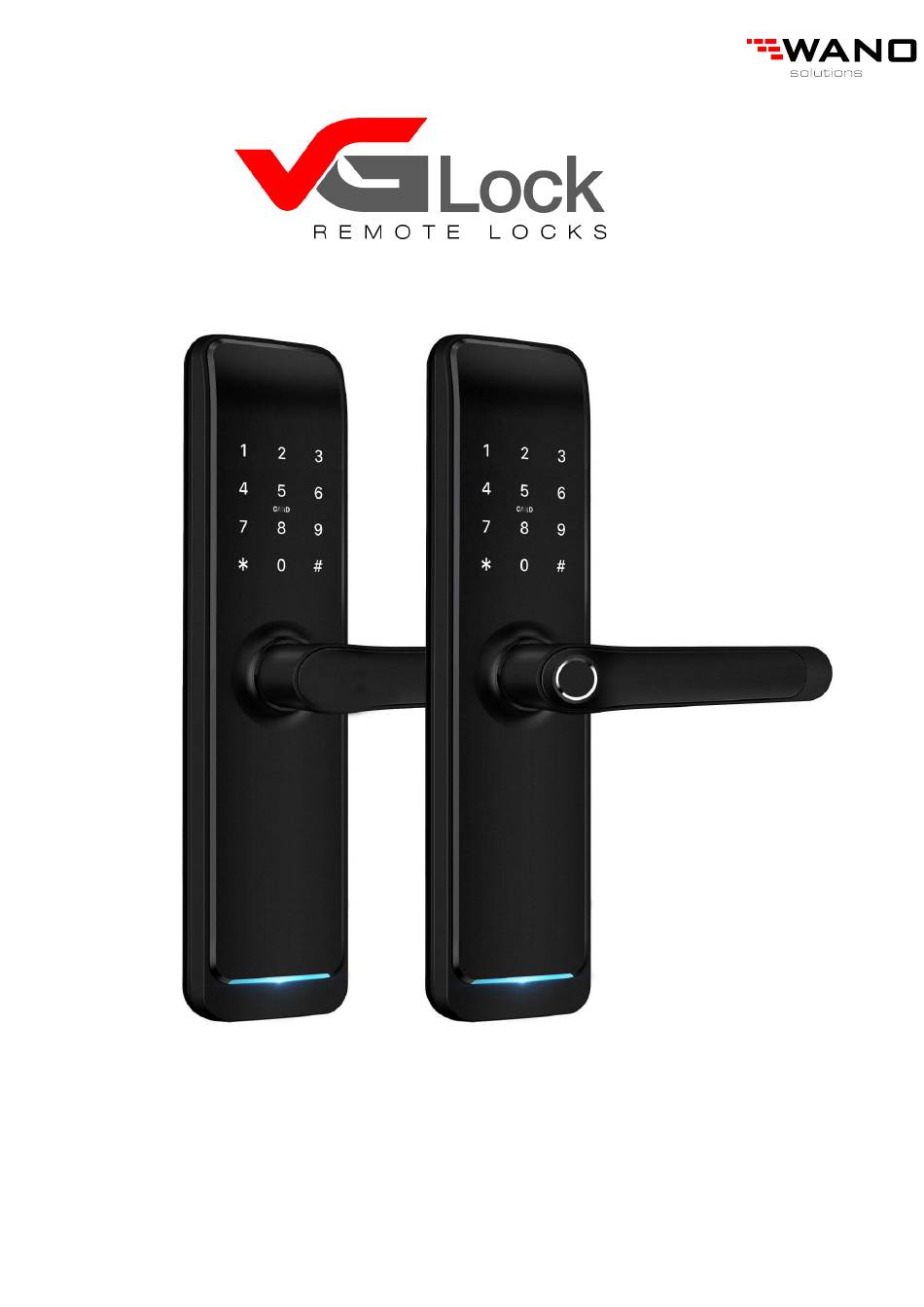

- Page 1 User Manual vG-BL4 Special Attention: 1. Mechanical keys please keep outdoor, just in case keys lock in doors. 2. Please replace for the battery when low wattage alarm. 3.Reading this manual carefully before installation, and keep it for future reference.
-
Page 2: Packing List
1. Introduction 1.1.Lock structure 1.2.Packing List Check the following drawing to check whether the package contains all the parts Name Name Front Panel Mortise Screws:10*5 (For Aluminum Door) Back Panel Mortise Screws:25*4mm (For Wooden Door) Mortise:latch 60mm/80mm Square shaft Card M5*25mm Screw for Door Thickness 35-39mm Mechanical Key... -
Page 3: Specifications
1.3.Specifications Suitable for Doors Aluminum door vG-Bl4 Models Applicable Wooden door Working Aluminum alloy Materials 6V/4x AA Batteries Voltage Door Thickness Lock Weight 35-65mm to Fit Bluetooth Fingerprint(option) Fingerprint ： 200 Unlocking Password Data Capacity Password ： 150 Card Card ： 200 Mechanical key Gateway(option) Silver... -
Page 4: Installation
2.Installation 2.1Turn the handle Notice: Adjust the handle according to the direction you open the door. - Page 5 Installation Diagram(For 5572) 2.2. Step 1 Install Mortise Step 2 Install Sliding Screw Casing The screw casing place is adjustable from 55mm to 100mm far from the square shaft. Depending on the location of the hole-drilling or the old door hole. arrow always pointing...
-
Page 6: Operation
3.Operation 3.1.Registration software (iOS version) downloaded from the app store, and the Android version can be downloaded from the application store of Google play, Yingyongbao, Baidu, Ali, 360, Huawei, and Xiaomi. 3.2. Connect lock to the phone 1) please scan the QR code to download the app 2) You can also search for TTLock in the APP store(Google Play)to download 4) Register a new account (phone number or email) or login with an existing account. -
Page 7: Setting Passcode
3.4.User Management 3.4.1. Bluetooth management Make sure there is no problem with Bluetooth communication. After connecting the phone to the door lock as above, Click " "to unlock.(the phone is within 5meters from the door lock) 3.4.2. Setting Passcode Passcodes are also a way to unlock. After entering the passcode on the locked keyboard, press the unlock button in the lower right corner to unlock. - Page 8 3.4.4.Add card Supports opening doors through various IC cards. Before an IC card is used to open the door, it needs to be added first. The adding process needs to be perform ed by the app beside the lock.The validity period of the IC can be set, it can be per manent, or it can be limited in time.
-
Page 9: Add Gateway
3.5. Gateway management(Optional) The TT lock is directly connected via Bluetooth, that is why it is not attacked by the network. The gateway is a bridge between smart locks and home WIFI networks. Through the gateway, the user can remotely view and calibrate the lock clock, read the unlock record. - Page 10 4.FAQ 1) How to read operation records? In the Records of the main interface. . 2) Why can’t I unlock it after open the You need to perform an unlock verification in passage mode any method, than the passage mode will take effect.
- Page 11 III Sobieskiego 80B 62-030 Luboń, Polska tel. 61 307 22 35 email: biuro@wano.pl www.wano.pl...
