Wano VGLock vG-BL5 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

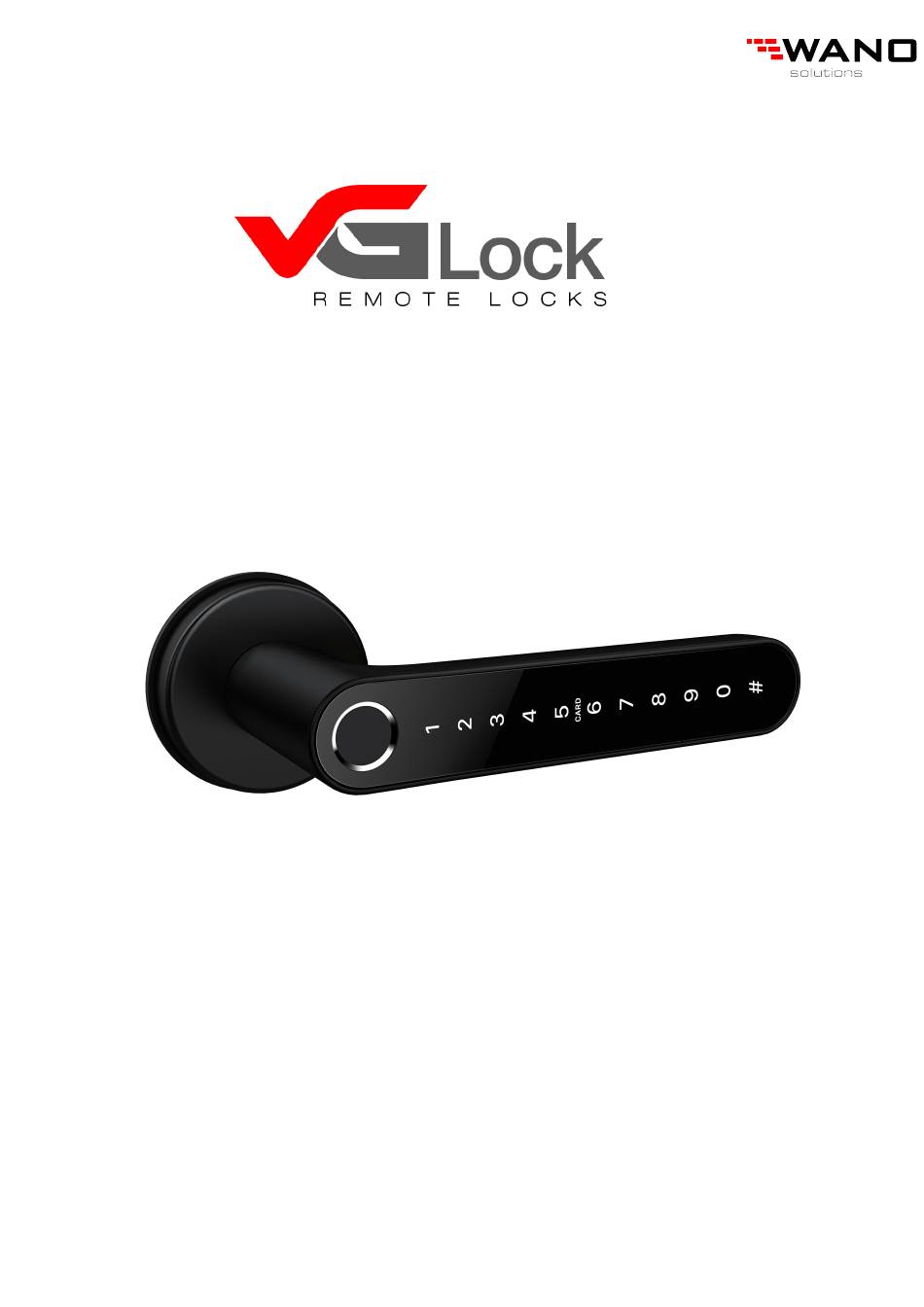

User Manual
vG-BL5
Special Attention:
1. Mechanical keys please keep outdoor, just in case keys lock in doors.
2. Please replace for the battery when low wattage alarm.
3.Reading this manual carefully before installation, and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VGLock vG-BL5 and is the answer not in the manual?

Questions and answers

Related Manuals for Wano VGLock vG-BL5

Summary of Contents for Wano VGLock vG-BL5

  • Page 1 User Manual vG-BL5 Special Attention: 1. Mechanical keys please keep outdoor, just in case keys lock in doors. 2. Please replace for the battery when low wattage alarm. 3.Reading this manual carefully before installation, and keep it for future reference.

  • Page 2: Packing List

    1. Introduction 1.1.Lock structure 1.2.Packing List Check the following drawing to check whether the package contains all the parts Name Name Front Panel Screw Stubs:M4*40mm Back Panel Strike&Strike Box Mortise User Manual Mortise Screws:M5*10mm Card (For Aluminum Door) Mortise Screws:M4*20mm Mechanical Key (For Wooden Door) Waterproof Rubber...

  • Page 3: Specifications

    1.3.Specifications Suitable for Doors Aluminum door N31-TTB Models Applicable Wooden door Panel:Zinc alloy Working Materials 6V/4x AAA Batteries Handle ： Aluminum alloy Voltage Door Thickness Lock Weight 1.5 KG 35-52mm to Fit Bluetooth Fingerprint(option) Fingerprint ： 200 Unlocking Password Data Capacity Password ：...

  • Page 4: Installation

    2.Installation Installation Diagram(For Latch ) 2.1. Step 1 Install Mortise Step 2 Install Screw Casing 1.Install the Screw Stubs 2.Install Rubber Plate Step 3 Install back panel Step 4 Install battery and link wire 1. Unscrew the battery cover screw 2.Install Rubber Plate 3.Mounting screws installation complete...

  • Page 5: Operation

    3.Operation 3.1.Registration software (iOS version) downloaded from the app store, and the Android version can be downloaded from the application store of Google play, Yingyongbao, Baidu, Ali, 360, Huawei, and Xiaomi. 3.2. Connect lock to the phone 1) please scan the QR code to download the app 2) You can also search for TTLock in the APP store(Google Play)to download 4) Register a new account (phone number or email) or login with an existing account.

  • Page 6: Setting Passcode

    3.4.User Management 3.4.1. Bluetooth management Make sure there is no problem with Bluetooth communication. After connecting the phone to the door lock as above, Click " "to unlock.(the phone is within 5meters from the door lock) 3.4.2. Setting Passcode Passcodes are also a way to unlock. After entering the passcode on the locked keyboard, press the unlock button in the lower right corner to unlock.
  • Page 7 3.4.4.Add card Supports opening doors through various IC cards. Before an IC card is used to open the door, it needs to be added first. The adding process needs to be perform ed by the app beside the lock.The validity period of the IC can be set, it can be per manent, or it can be limited in time.

  • Page 8: Add Gateway

    3.5. Gateway management(Optional) The TT lock is directly connected via Bluetooth, that is why it is not attacked by the network. The gateway is a bridge between smart locks and home WIFI networks. Through the gateway, the user can remotely view and calibrate the lock clock, read the unlock record.
  • Page 9 4.FAQ 1) How to read operation records? In the Records of the main interface. . 2) Why can’t I unlock it after open the You need to perform an unlock verification in passage mode any method, than the passage mode will take effect.
  • Page 10 III Sobieskiego 80B 62-030 Luboń, Polska tel. 61 307 22 35 email: biuro@wano.pl www.wano.pl...
