Summary of Contents for BenQ FP92W

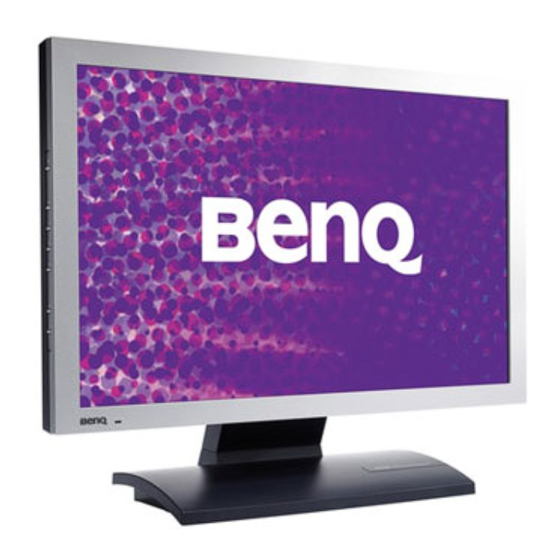

- Page 1 FP92W a 19" Wide-Screen LCD Monitor User Manual Welcome Downloaded from ManualMonitor.com Manuals...
- Page 2 Copyright Copyright © 2006 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.
-
Page 3: Table Of Contents
How to detach the stand base ...................10 How to use the monitor wall mounting kit .............11 Getting the most from your BenQ monitor ..............13 How to install the monitor on a new computer ............14 How to upgrade the monitor on an existing computer ..........15 How to install on Windows XP system ..............16... -
Page 4: Getting Started
1. Getting started Your FP92W a will provide the optimal display performance of the video resolution standard of 1440 x 900. Please ensure that your graphic card supports the resolution of 1440 x 900. When unpacking please check you have the following items. If any are missing or damaged, please contact the place of purchase for a replacement. -
Page 5: Getting To Know Your Monitor
2. Getting to know your monitor Front view Back view 1. Power AC input jack 2. D-Sub input socket Getting to know your monitor Downloaded from ManualMonitor.com Manuals... -
Page 6: Left-Side View
Left-side view 1. Power 2. Enter / Brightness Contrast 5. MENU 6. Input (Not available for FP92W a) Getting to know your monitor Downloaded from ManualMonitor.com Manuals... -
Page 7: How To Assemble Your Monitor Hardware
3. How to assemble your monitor hardware If the computer is turned on you must turn it off before continuing. Do not plug-in or turn-on the power to the monitor until instructed to do so. 1. Attach the monitor base. Please be careful to prevent damage to the monitor. - Page 8 2. Connect the PC video cable. Connect the plug of the D-Sub cable (at the end without the ferrite filter) to the monitor D-Sub socket. Connect the other plug of the D-Sub cable (at the end with the ferrite filter) to the computer video D-Sub socket. Tighten all finger screws to prevent the plugs from acci- dently falling out during use.
- Page 9 Turn on the computer too, and follow the instructions in Section 4: Getting the most from your BenQ monitor on page 13 to install the monitor software. How to assemble your monitor hardware...
-
Page 10: How To Detach The Stand Base
How to detach the stand base 1. Prepare the monitor and area. Turn off the monitor and the power before unplugging the power cable. Turn off the computer before unplugging the monitor signal cable. Please be careful to prevent damage to the monitor. Placing the screen surface on an object like a stapler or a mouse will crack the glass or damage the LCD substrate voiding your warranty. -
Page 11: How To Use The Monitor Wall Mounting Kit
How to use the monitor wall mounting kit The back of your LCD monitor has a VESA standard mount with 100mm pattern, allowing the installation of a wall mount bracket. Before starting to install a monitor wall mounting kit, please read the precautions carefully. - Page 12 3. Remove the rear cover. Slide the rear cover back toward you to remove it. The screw plate at the back of the monitor could be revealed. 4. Follow the instruction manuals of the wall mount bracket you purchased to complete the installation. How to assemble your monitor hardware Downloaded from ManualMonitor.com Manuals...
-
Page 13: Getting The Most From Your Benq Monitor
4. Getting the most from your BenQ monitor To gain the most benefit from your new BenQ color LCD flat screen monitor, you should set the graphics card to the native resolution of 1440 x 900 at first, and then you may start to install the custom BenQ LCD Monitor driver software as provided on the BenQ LCD Monitor CD-ROM. -
Page 14: How To Install The Monitor On A New Computer
BenQ LCD Monitor is the first ever monitor to be connected to it. If you are adding the BenQ LCD Monitor to an existing computer that has already had another monitor connected to it (and has monitor driver software installed), you should not be following these instructions. -
Page 15: How To Upgrade The Monitor On An Existing Computer
The BenQ LCD Monitor driver for your model may well function perfectly with other versions of Windows, however, as at the time of writing, BenQ has done no testing of this driver on other versions of Windows and cannot guarantee its operation on those systems. -
Page 16: How To Install On Windows Xp System
The Monitor Properties window will display. If the driver provider is listed as BenQ, and the model matches that of your new monitor, the proper drivers are already installed, and you need do nothing further. Cancel out of these property windows. -
Page 17: How To Install On Windows 2000 System
4. In Windows 2000, click the Driver tab and the Update Driver button. The Upgrade Device Driver Wizard will display. How to complete the Windows Upgrade Device Driver Wizard on page Getting the most from your BenQ monitor Downloaded from ManualMonitor.com Manuals... -
Page 18: How To Complete The Windows Upgrade Device Driver Wizard
The contents of the ‘Driver’ folder will display. 7. Click the Open button. This will return you to the Install from Disk window, and it will have entered the address to the BenQ LCD Monitor CD ‘Driver’ folder into the field titled ‘Copy manufacturer’s files from:’ . -
Page 19: How To Adjust The Screen Resolution
Due to the nature of liquid crystal display (LCD) technology, the picture resolution is always fixed. The best possible picture for your FP92W a is achieved with a resolution of 1440 x 900. This is called “Native Resolution” or maximal resolution – that is, the clearest picture. Lower resolutions are displayed on a full screen through an interpolation circuit. -
Page 20: How To Adjust The Screen Refresh Rate
6. How to adjust the screen refresh rate You don’t have to choose the highest possible refresh rate on an LCD display, because it is not technically possible for an LCD display to flicker. The best results are obtained by using the factory modes already set in your computer. -
Page 21: Picture Optimization
If you wish, you can always adjust the screen geometric settings manually using geometry menu items. To assist you in this endeavour, BenQ has provided a screen test image utility which you can use to check for screen color, grayscale and line gradient display. -
Page 22: How To Adjust Your Monitor
(Down) key: For Down/Decrease adjustment. The key is also the hot key for Contrast. 5. “MENU” key: Activate OSD main menu and return to the previous menu or exit OSD. 6. “Input” key: Not available for FP92W a. 7. “... -
Page 23: On Screen Display (Osd) Menu Structure
On Screen Display (OSD) menu structure Auto Adjustment DISPLAY H. Position V. Position Pixel Clock Phase Brightness Normal Green PICTURE Contrast Bluish Blue Sharpness Reddish Color User Mode Reset Color English French German Italian Spanish Polish/Japanese Czech/Traditional OSD Settings Language SYSTEM Chinese Hungarian/Simplified... -
Page 24: Hot Key Mode
Hot key mode The monitor keys perform as hotkeys to provide direct access to particular functions whenever the menu isn't currently displaying on-screen. Brightness hot key Press the key to display the Brightness indicator. Further press the key to increase or the key to decrease the screen brightness, and press the MENU key to exit. -
Page 25: Main Menu Mode
Main menu mode You can use the OSD (On Screen Display) menu to adjust all the settings on your monitor. Press the MENU key to display the following main OSD menu. There are three main OSD menus: 1. Display 2. Picture 3. - Page 26 Display menu 1. Press the MENU key to display the main menu. 2. Press the keys to select DISPLAY and then press the ENTER key to enter the menu. 3. Press the keys to move the highlight to a menu item and then press the ENTER key to select that item.
- Page 27 Picture menu 1. Press the MENU key to display the main menu. 2. Press the keys to select PICTURE and then press the ENTER key to enter the menu. 3. Press the keys to move the highlight to a menu item and then press the ENTER key to select that item.
- Page 28 • Red User Mode Tailors the image color Press the keys and (0 to 100) tint. The blend of the Red, the ENTER key to select Green and Blue primary • Green Red, Green, or Blue. Then colors can be altered to (0 to 100) use the keys to...
- Page 29 System menu 1. Press the MENU key to display the main menu. 2. Press the keys to select SYSTEM and then press the ENTER key to enter the menu. 3. Press the keys to move the highlight to a menu item and then press the ENTER key to select that item.
- Page 30 H. Position Adjusts the horizontal 0 to 100 position of the OSD menu. V. Position Adjusts the vertical 0 to 100 position of the OSD menu. • 5 sec. Display Time Adjusts the display time of Press the keys to the OSD menu.
-
Page 31: Troubleshooting
9. Troubleshooting Frequently asked questions (FAQ) The image is blurred: Read the section, and then select the correct How to adjust the screen resolution on page 19 resolution, refresh rate and make adjustments based on these instructions. How do you use a VGA extension cable? Remove the extension cable for the test. -
Page 32: Need More Help
How to adjust the screen resolution on page 19 resolution, refresh rate and make adjustments based on these instructions. Need more help? If your problems remain after checking this manual, please contact your place of purchase or e-mail us at: Support@BenQ.com Troubleshooting Downloaded from ManualMonitor.com Manuals... -
Page 33: Supported Pc Timings
10. Supported PC Timings Incoming display mode (Input timing) Resolution Horizontal Vertical Pixel Comment Frequency (KHz) Frequency (Hz) Frequency (MHz) 640 x 350 31.47 70.08 25.17 720 x 400 31.47 70.08 28.32 640 x 480 31.47 60.00 25.18 640 x 480 35.00 67.00 30.24... -
Page 34: Specifications
11. Specifications Model FP92W a Display type 19.0”, active, TFT Viewable diagonal 480 mm Native (maximum) resolution 1,440 x 900 Colors 16.2 million Contrast / Brightness 700:1 / 300 cd/m Response time 5 ms Viewing angle (left/right, up/down) 150, 140 (CR=10)
