Summary of Contents for BRONZE GYM D-002A

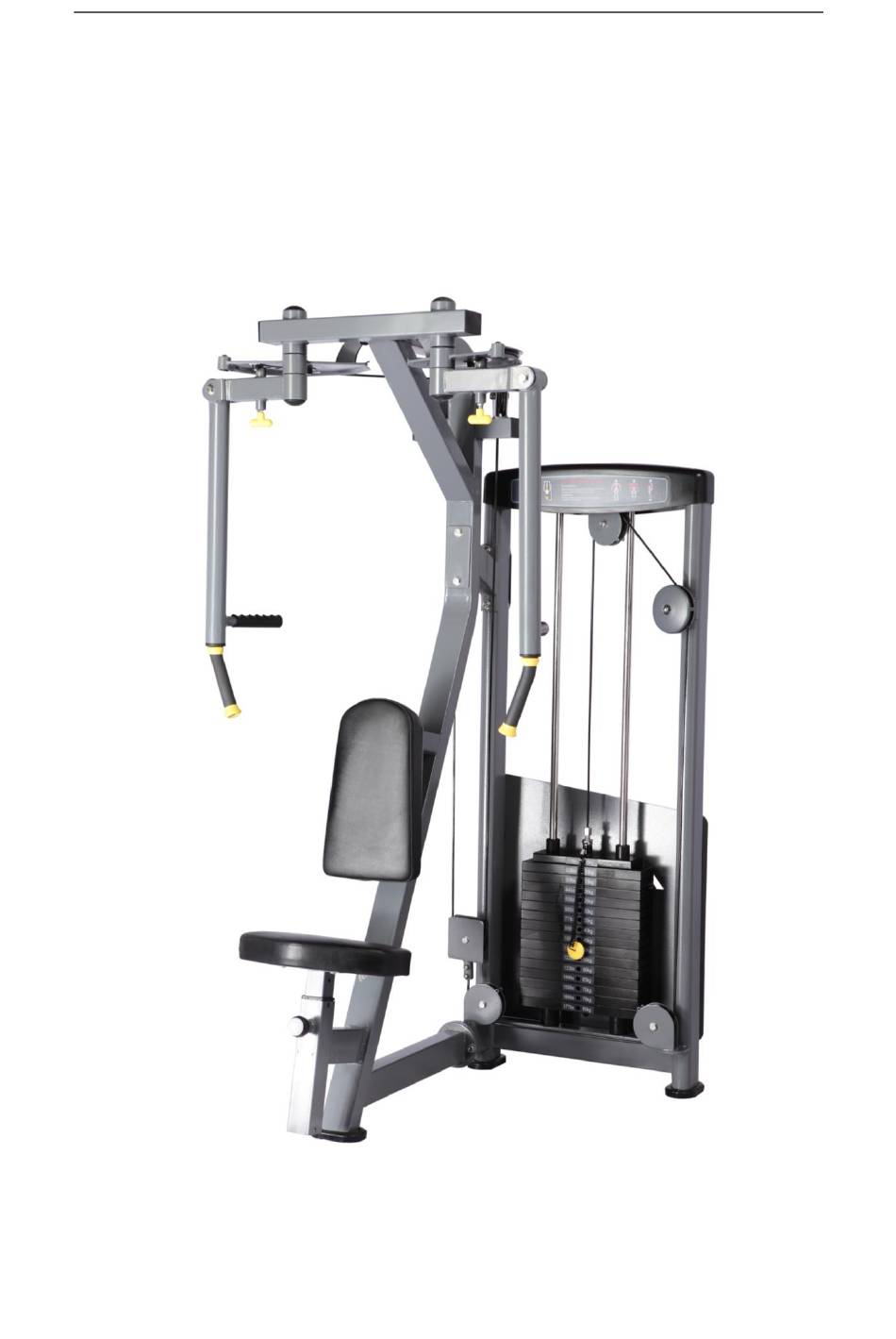

- Page 1 D SERIES -002A USE MANUAL SEATED STRAIGHT ARM CLIP CHEST...
-
Page 2: Table Of Contents
(stub) back to our company so that we provide better service for you. This manual is the first edition 2011 of series products D-002A SEATED STRAIGHT ARM CLIP CHEST The content of manual will change along with promotion of products, and we will not inform you. -
Page 3: Warning
WARNING This training equipment is only intended for use in training areasof organizations such as sport associations, educational establishment, hotels, clubs and studios, where access and control is specifically regulated by the owner (person who has the legal responsibility). 2. The training equipment shall only be used in areas where access control is specifically regulated by the owner;... -
Page 4: Use Instruction

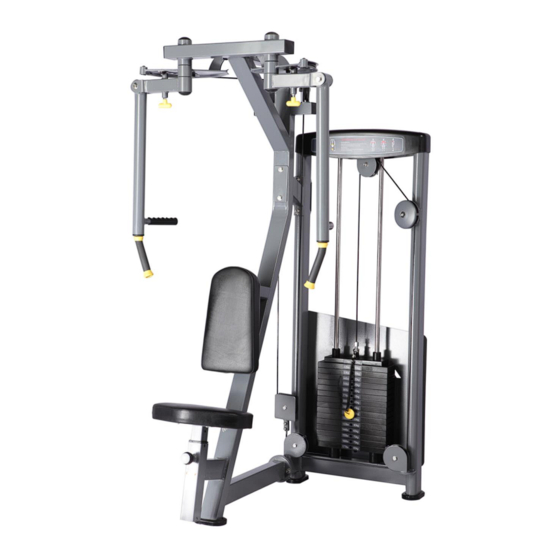

USE INSTRUCTION: D-002A SEATED STRAIGHT ARM CLIP CHEST Exercise position: Pectorals Dimension: 2000mm (L)*1110mm(W)*1000 mm(H) weight : 185kg Use Instruction: 1 Read all caution Warning Labels before using this equipment. 2 Adjust seat pad and sit with your back firmly against back pad. -
Page 5: Regular Maintenance
REGULAR MAINTENANCE 1．The safety level of the equipment can be maintained only if it is examined regularly for damage and wear, e.g. ropes, pulleys, connection points; 2．Pay special attention to components most susceptible to wear. 3．Replace defective components immediately and /or keep t he equipment out of use until repair;... -
Page 6: Cable Routing Diagram
CABLE ROUTING DIAGRAM：... -
Page 8: Assmble Step
Assmble Step： Use tool： 1. M5 Hex spanner 2. M6 Hex spanner 3. Two 13-16 spanner 4. Two 17-19 spanner 5. Two 22-24 spanner...
