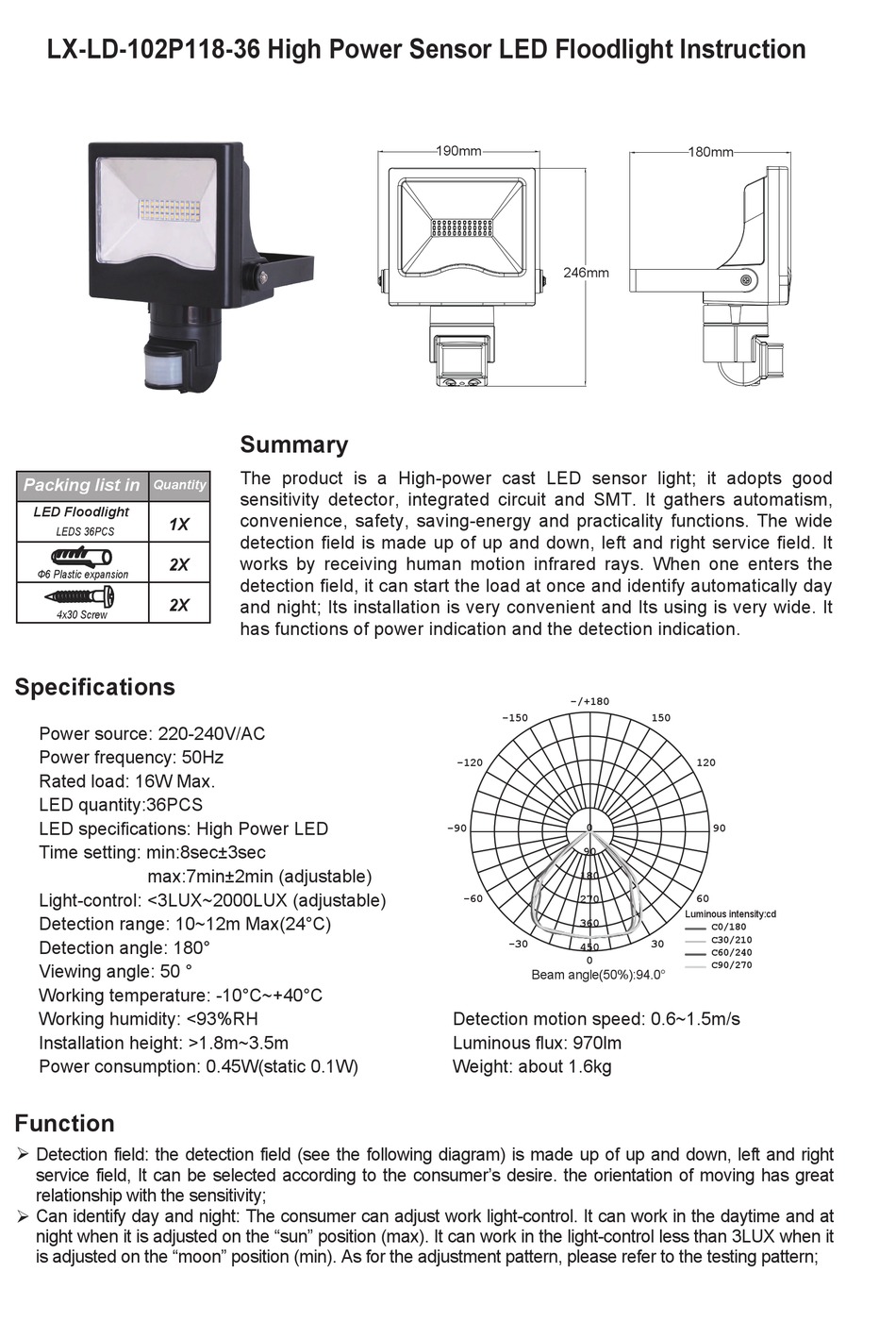

Lexing LX-LD-102P118-36 Instructions

LX-LD-102P118-36 High Power Sensor LED Floodlight Instruction
Packing list in
Quantity
LED Floodlight
1X
LEDS 36PCS
2X
Φ6 Plastic expansion
2X
4x30 Screw

Specifications

Power source: 220-240V/AC
Power frequency: 50Hz
Rated load: 16W Max.
LED quantity:36PCS
LED specifications: High Power LED
Time setting: min:8sec±3sec
max:7min±2min (adjustable)
Light-control: <3LUX~2000LUX (adjustable)
Detection range: 10~12m Max(24°C)
Detection angle: 180°
Viewing angle: 50 °
Working temperature: -10°C~+40°C
Working humidity: <93%RH
Installation height: >1.8m~3.5m
Power consumption: 0.45W(static 0.1W)

Function

Detection field: the detection field (see the following diagram) is made up of up and down, left and right

service field, It can be selected according to the consumer's desire. the orientation of moving has great
relationship with the sensitivity;
Can identify day and night: The consumer can adjust work light-control. It can work in the daytime and at

night when it is adjusted on the "sun" position (max). It can work in the light-control less than 3LUX when it
is adjusted on the "moon" position (min). As for the adjustment pattern, please refer to the testing pattern;
Summary
The product is a High-power cast LED sensor light; it adopts good
sensitivity detector, integrated circuit and SMT. It gathers automatism,
convenience, safety, saving-energy and practicality functions. The wide
detection field is made up of up and down, left and right service field. It
works by receiving human motion infrared rays. When one enters the
detection field, it can start the load at once and identify automatically day
and night; Its installation is very convenient and Its using is very wide. It
has functions of power indication and the detection indication.
190mm
246mm
-/+180
-150
-120
0
-90
90
180
-60 270
360
-30
450
0
Beam angle(50%):94.0°
Detection motion speed: 0.6~1.5m/s
Luminous flux: 970lm
Weight: about 1.6kg
180mm
150
120
90
60
Luminous intensity:cd
C0/180
C30/210
30
C60/240
C90/270
