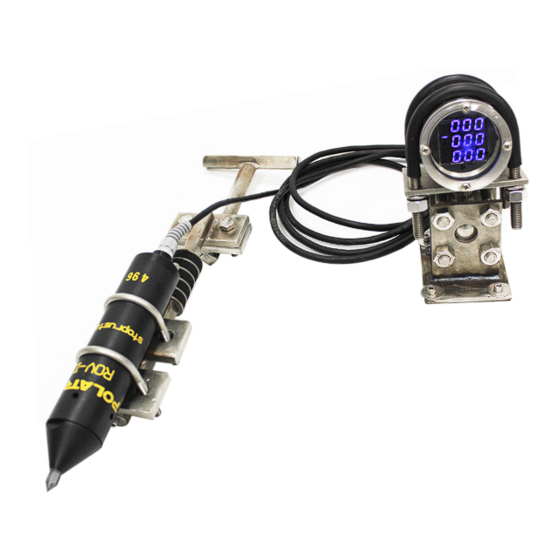

DEEP C METER 3000 AD™
ROV-MOUNTED CP PROBE
OPERATION MANUAL
ROV-interfaced
cathodic protection
monitoring system
Can be used with
Polatrak's optional
EFG probe
Can output both
contact and EFG
probe readings
+1 (713) 983 7117 | Email: sales@stoprust.com
polatrak.com
|
©2023 Deepwater Corrosion Services Inc. Specifications subject to change without notice
CORROSION TESTING PROBE
Digital output
RS232 standard
ASCII string
Deepwater Corrosion Services Inc.
