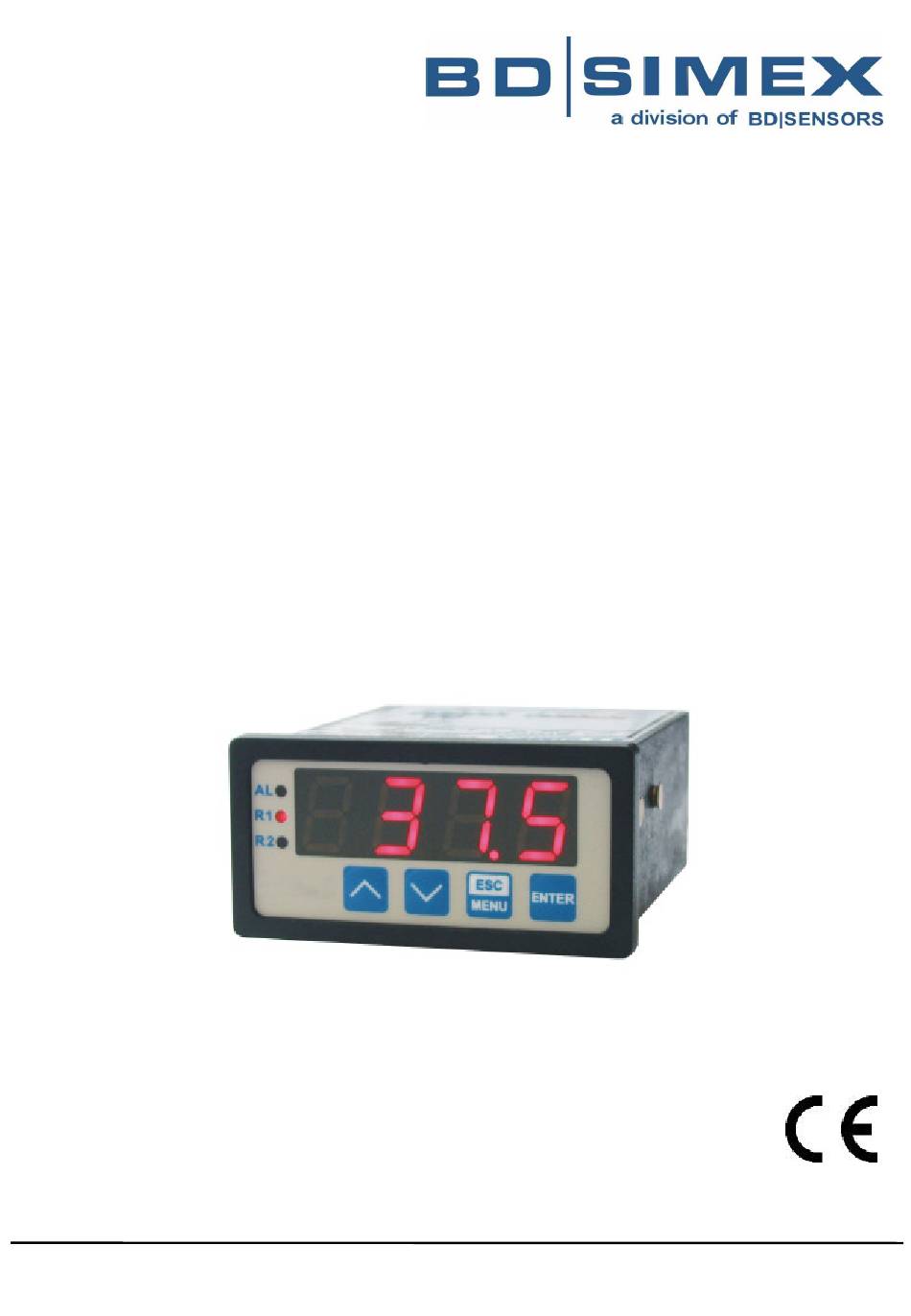

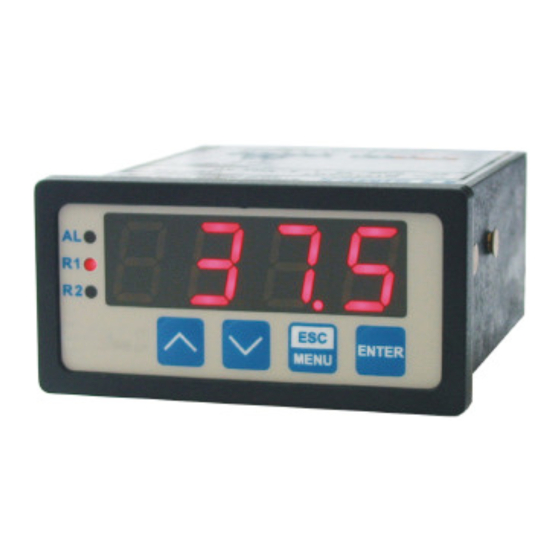

- Page 1 USER MANUAL for meter with thermocouple input PAC-73T type: 5.16 firmware version: or higher Read the user's manual carefully before starting to use the unit. Producer reserves the right to implement changes without prior notice. V.2.03 28.01.2009...
-
Page 2: Table Of Contents
User manual for meter with thermocouple input PAC-73T CONTENTS 1. BASIC REQUIREMENTS AND USER SAFETY ..................3 2. GENERAL CHARACTERISTICS......................4 3. TECHNICAL DATA ..........................4 4. DEVICE INSTALLATION ......................... 6 4.1. UNPACKING ..........................6 4.2. ASSEMBLY ........................... 6 4.3. CONNECTION METHOD ....................... 8 4.4. -
Page 3: Basic Requirements And User Safety
User manual for meter with thermocouple input PAC-73T Explanation of symbols used in the manual: - This symbol denotes especially important guidelines concerning the installation and operation of the device. Not complying with the guidelines denoted by this symbol may cause an accident, damage or equipment destruction. IF THE DEVICE IS NOT USED ACCORDING TO THE MANUAL THE USER IS RESPONSIBLE FOR POSSIBLE DAMAGES. -
Page 4: General Characteristics
User manual for meter with thermocouple input PAC-73T Do not use the unit in explosion hazard areas. - Do not use the unit in areas with significant temperature variations, exposed to condensation or icing. - Do not use the unit in areas exposed to direct sunlight. - Make sure that the ambient temperature (e.g. - Page 5 User manual for meter with thermocouple input PAC-73T Measurement accuracy ± 0.25 % ± one digit Accuracy of ends temperature ÷ 1 ° C compensation Outputs relay: 0, 1 or 2 NO, 1 A/250 V (cos ϕ = 1) or OC-type: 0, 1 or 2, 30 mA / 30 V / 100 mW sensor power supply:...
-
Page 6: Device Installation
User manual for meter with thermocouple input PAC-73T This is a class A unit. In housing or a similar area it can cause radio frequency interference. In such cases the user can be requested to use appropriate preventive measures. 4. DEVICE INSTALLATION The unit has been designed and manufactured in a way assuring a high level of user safety and resistance to interference occurring in a typical industrial environment. - Page 7 User manual for meter with thermocouple input PAC-73T Figure 4.1. Mounting hole dimensions Figure 4.2. Installing of brackets, and dimensions of connectors...
-
Page 8: Connection Method
User manual for meter with thermocouple input PAC-73T Figure 4.3. Minimum distances when assembly of a number of units 4.3. CONNECTION METHOD Caution - Installation should be conducted by qualified personnel. During installation all available safety requirements should be considered. The fitter is responsible for executing the installation according to this manual, local safety and EMC regulations. - Page 9 User manual for meter with thermocouple input PAC-73T If the unit is equipped with housing, covers and sealing packing, protecting against water intrusion, pay special attention to their correct tightening or clamping. In the case of any doubt consider using additional preventive measures (covers, roofing, seals, etc.).
- Page 10 User manual for meter with thermocouple input PAC-73T Figure 4.5. Terminals description (relay outputs) Figure 4.6. Terminals description (OC-type outputs) All connections must be made while power supply is disconnected!
- Page 11 User manual for meter with thermocouple input PAC-73T Depending on version: 85...230...260 V AC/DC 19...24...50 V ; 16...24...35 V Figure 4.7. Connection of power supply and relays Contacts of relay outputs are not equipped with spark suppressors. While use the relay outputs for switching of inductive loads (coils, contactors, power relays, electromagnets, motors etc.) it is required to use additional suppression circuit (typically capacitor 47 nF/min.
- Page 12 User manual for meter with thermocouple input PAC-73T Figure 4.8. Examples of suppression circuit connection: a) to relay terminals; b) to the inductive load Figure 4.9. Example of OC-type outputs connection...
-
Page 13: Maintenance
User manual for meter with thermocouple input PAC-73T 4.4. MAINTENANCE The unit does not have any internal replaceable or adjustable components available to the user. Pay attention to the ambient temperature in the room where the unit is operating. Excessively high temperatures cause faster ageing of the internal components and shorten the fault-free time of unit operation. -
Page 14: Principle Of Operation
User manual for meter with thermocouple input PAC-73T 6. PRINCIPLE OF OPERATION After turning the power supply on, device ID and software version are showed on the display, next the controller goes to the measurement mode. 6.1. MEASUREMENT MODE In the measure mode the measurement results, are displayed on the display. If the result of measurement exceeds the permissible measurement range, warning “-Hi-“... -
Page 15: Control Of The Relay Outputs
User manual for meter with thermocouple input PAC-73T Figure 6.1. Process of peaks detection 6.3. CONTROL OF THE RELAY OUTPUTS The control of the object (measured signal) is realized via relay outputs. Front panel LEDs named “R” indicates the state of particular relay output. If device is not equipped with one or more relay outputs, menus refer to this relays are available, but apply to LED indicators only. - Page 16 User manual for meter with thermocouple input PAC-73T Figure 6.2. One threshold control of the relay/LED outputs Figure 6.3. Two thresholds control of the relay/LED outputs The relay outputs and LEDs (named R) can be controlled depend on both - the current value and the peak value (when peak detection is active) of the input signal.
-
Page 17: One Threshold Mode
User manual for meter with thermocouple input PAC-73T 6.3.1. One threshold mode Figure 6.4 presents the principle of relay outputs operation for one threshold mode, and an example values of other parameters. Description: A, B, C, D - points where measured signal exceeds border values (expected value ± allowed deviation) - relays state changes moments: (for “t on”... -
Page 18: Two Thresholds Mode
User manual for meter with thermocouple input PAC-73T If t or t (when input signal stay in zone A or zone B) are lower than parameters “t on” or “toFF”, the relay will not change his state (see points A and C, Figure 6.4 a, d, e). The state of relay output while the input value exceeds the border values (points A, B, C, D) is described by parameter “modE”. -
Page 19: Device Programming
User manual for meter with thermocouple input PAC-73T Figure 6.5 presents the principle of relay outputs operation for two thresholds mode, and an example values of other parameters. In this mode parameter “SEt2” is accessible in common with “SEtP”, this parameter describes a second threshold of the relay output. The parameters “HYSt”, “modE”, “t on”, “toFF”, “unit”... -
Page 20: Parameters Edition
User manual for meter with thermocouple input PAC-73T Functions of the buttons while sub-menu and parameters choice: Selection of sub-menu or parameter for editing. Name of selected item (sub-menu or parameter) is displayed. Operation of [ENTER] button depend on present menu position: •... -
Page 21: Switch Parameters ("List" Type)
User manual for meter with thermocouple input PAC-73T Press [ENTER] at least 2 seconds to accept the changes, after that question “Set?” is displayed, and user must to confirm (or cancel) the changes. To conform changes (and story it in EEPROM) press [ENTER] button shortly after “SEt?” is displayed. To cancel the changes press [ESC] button shortly after “SEt?”... -
Page 22: Rel1" Menu
User manual for meter with thermocouple input PAC-73T 7.3.1. “rEL1” menu This menu allows to configure the operation mode of relays and LEDs marked “R” (e.g. “R1”). If there are few relay outputs available, then every output has its own configuration menu (e.g. - Page 23 User manual for meter with thermocouple input PAC-73T “out” - two thresholds mode, relay is turned ON when the input value is bigger than “bigger threshold + HYSt” and lower than “lower threshold – HYSt”, and turned on when the input signal is contained in the second zone.
-
Page 24: Inpt" Menu
User manual for meter with thermocouple input PAC-73T • If option “noCH” is selected for “AL” parameter, behaviour of the relay may depend on “FiLt” parameter in some cases. If “FiLt” is set to big value and the input signal drops, result value of the measure will change slow, causes of turning on or off relay due to thresholds values. -
Page 25: Col" Menu
User manual for meter with thermocouple input PAC-73T 7.3.4. “CoL” menu This menu contains settings related to signalisation via display colour. This kind of signalisation consist in change of display colour (from basic colour to “active” colour) in defined situations, for example after change of R1 state. -
Page 26: Hold" Menu
User manual for meter with thermocouple input PAC-73T “CrES” - permission to use any local key to acknowledgement of display colour change. Acknowledgement causes clear of all events generating display colour changes (to active colour), and restores basic colour of the display. “oFF”... -
Page 27: Rs" Menu
User manual for meter with thermocouple input PAC-73T “A r1”, - this option permits user (“on”) or prohibits (“oFF”) to modify the thresholds of the “A r2” relays/LEDs R1, R2 without knowledge about user password. 7.3.7. “rS” menu This menu is connected with RS-485 interface, and sets his properties: “Addr”... -
Page 28: Edit" Parameter
User manual for meter with thermocouple input PAC-73T “bAud” parameter “38.4” “57.6” “115.2” “rESP” parameter “10c” “20c” “50c” Tab.7.1. Settings of “rESP” parameter 7.3.8. “Edit” parameter This parameter allows to change the edition mode of numerical parameters: “dig” - the change to “by digit” mode, “Slid”... -
Page 29: Menu Structure
User manual for meter with thermocouple input PAC-73T 7.4. MENU STRUCTURE... - Page 30 User manual for meter with thermocouple input PAC-73T...
-
Page 31: The Alarm Led
User manual for meter with thermocouple input PAC-73T 8. THE ALARM LED Alarm LED (AL) lights in cases: exceeding of permissible measurement range • detection of sensor malfunction (shortcut or break of measurement circuit) • 11. THE MODBUS PROTOCOL HANDLING Transmission parameters: 1 start bit, 8 data bits, 1 or 2 stop bit (2 bits are send, 1 and 2 bits are accepted when receive), no parity control Baud rate:... -
Page 32: List Of Registers
User manual for meter with thermocouple input PAC-73T 9.1. LIST OF REGISTERS Register Write Range Register description measurement Measurement value (no decimal point) range The status of the current measurement; 0h - data valid; A0h - top 0h, A0h, 60h border of the measurement range is exceeded;... - Page 33 User manual for meter with thermocouple input PAC-73T Register Write Range Register description “mbtO” parameter in “rS” menu (maximum delay between received 0 ÷ 99 frames); 0 - no delay checking; 1 ÷ 99 - maximum delay expressed in seconds “bri”...
- Page 34 User manual for meter with thermocouple input PAC-73T Register Write Range Register description “ ” parameter in “ ” menu: HdiS HOLd 0 ÷ 1 0 - “rEAL” mode ; 1 - “HOLd” mode “ ” parameter in “ ” menu H r1 HOLd 0 ÷...
-
Page 35: Transmission Errors Description
User manual for meter with thermocouple input PAC-73T 9.2. TRANSMISSION ERRORS DESCRIPTION If an error occurs while write or read of single register, then the device sends an error code according to Modbus RTU specifications (example message no 1). Error codes: - illegal function (only functions 03h, 06h and 10h are available), - illegal register address - illegal data value... - Page 36 User manual for meter with thermocouple input PAC-73T The answer (if an error occur): ADDR FUNC ERROR CRC L,H ERROR - error code = 60h, bottom border of the measurement range is exceeded 2. Read of device ID code ADDR FUNC REG H,L COUNT H,L...
- Page 37 User manual for meter with thermocouple input PAC-73T 5. Read of the registers 1, 2 and 3 in one message (example of reading a number of registries in one frame): ADDR FUNC REG H,L COUNT H,L CRC L,H COUNT L - the count of being read registers (max.16) The answer: ADDR FUNC...
-
Page 38: Default And User's Settings List
User manual for meter with thermocouple input PAC-73T 10. DEFAULT AND USER'S SETTINGS LIST Desc. Parameter Description Default value User's value page Parameters of relay R1 operation (“rEL1” menu) SEtP Relay R1 threshold 20.0 SEt2 Relay R1 second threshold 30.0 HYSt Hysteresis of relay R1 modE... - Page 39 User manual for meter with thermocouple input PAC-73T Desc. Parameter Description Default value User's value page SEtP Threshold of display colour control HySt Hysteresis of display colour control Enable the use of local keyboard for CrES acknowledgement of display colour signalisation. Configuration of peaks detection function (“HOLd”...
- Page 40 User manual for meter with thermocouple input PAC-73T | | | | Sensors GmbH BD-Sensors-Straße 1 95199 Thierstein, Germany Telefon +49 (0) 9235 / 9811 - 2099 Telefax +49 (0) 9235 / 9811 - 860 e-mail: info@bdsimex.de www.bdsimex.de 02-2010...
